Henry Technologies

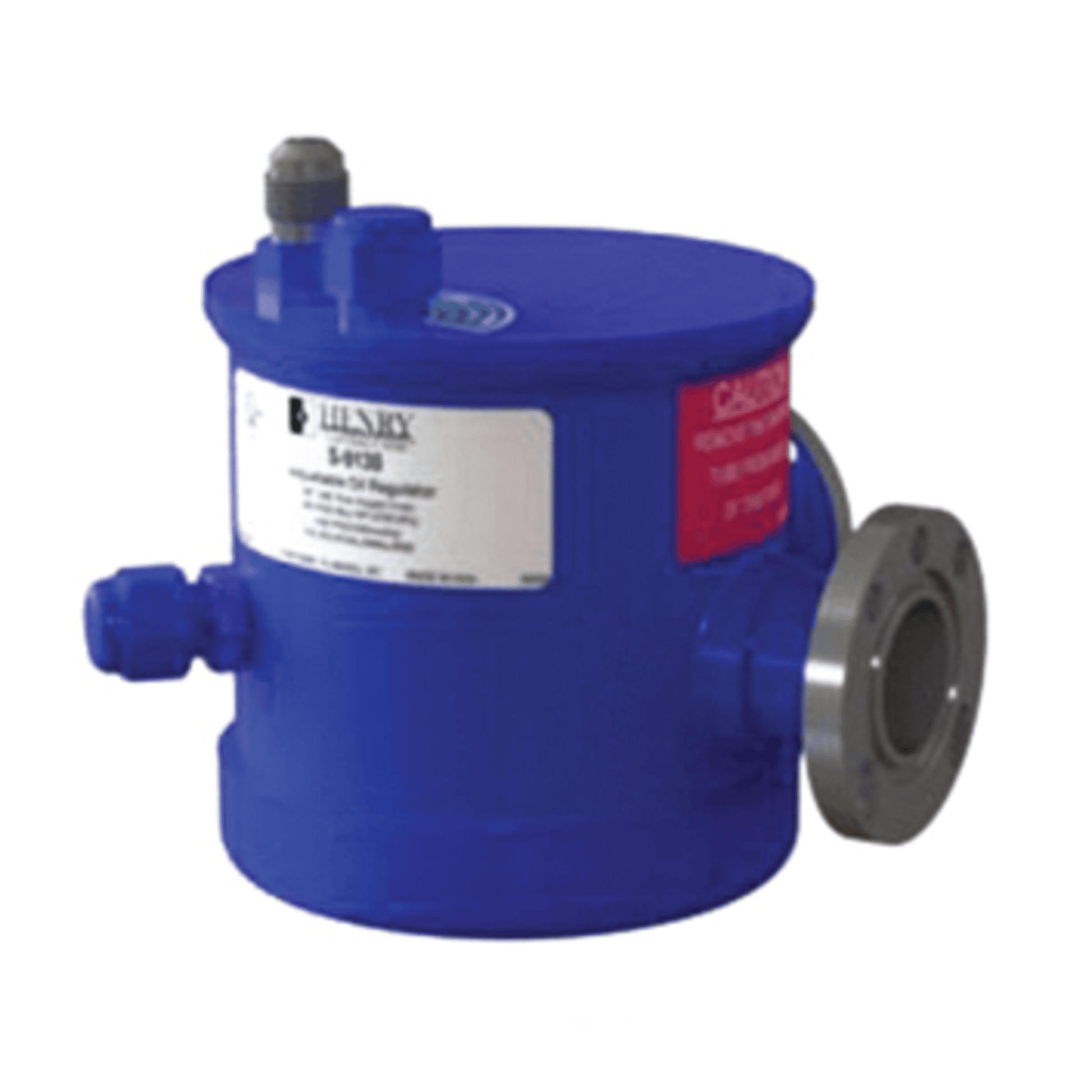

S-9130 - Henry - 4 - 101.6 - Oil Level Regulators, with Equalization

S-9130 - Henry - 4 - 101.6 - Oil Level Regulators, with Equalization

SKU: HEN-S-9130

Regular price $583.07 CAD
Regular price $0.00 CAD Sale price $583.07 CAD
Sale Sold out
Shipping calculated at checkout.

The Henry Technologies S-9130 is a 4" (101.6 mm) mechanical oil level regulator with equalization, designed for use in low-pressure oil management systems on parallel compressor racks. Here's a detailed breakdown of its features and specifications:


🔧 Key Features

  • Precision Float Valve Mechanism: Ensures accurate oil level control.
  • Adjustable Oil Level: Can be set between 1/4 and 5/8 of the sight glass.
  • Universal Mounting Flanges: Compatible with a wide range of compressor models.
  • Equalization Ports: For multi-compressor applications.
  • In-Service Adjustment: Oil level can be adjusted without shutting down the system.

⚙️ Technical Specifications

  • Model: S-9130
  • Connection Size: 4" (101.6 mm)
  • Max Working Pressure: 450 PSI (31 Bar)
  • Pressure Differential Range: 5 to 90 PSI (0.35 to 6.2 Bar)
  • Operating Temperature: +32°F to +266°F (0°C to +130°C)
  • Certifications: UL, CE, AS2971
  • Materials:
    • Shell & Caps: Steel
    • Float Valve: Brass with stainless steel needle
    • Float Ball: Stainless steel
    • Connections: Plated steel

🧪 Fluid Compatibility

  • Suitable for HFC and HCFC refrigerants and their associated oils
  • Also compatible with non-corrosive industrial fluids (to steel, brass, copper, nylon, synthetic rubber)

Specifications:

  • Maximum Working Pressure: 450 PSI (31 Bar).
  • Operating Temperature Range: +32°F to +266°F (0°C to +130°C).
  • Certifications: UL, CE, and AS2971 certified.

Applications:

The S-9130 is typically used in low-pressure oil management systems on parallel compressor racks. It is suitable for use with HFC and HCFC refrigerants and their associated oils, as well as other industrial fluids that are non-corrosive to steel, brass, copper, nylon, and synthetic rubber.



Materials of Construction:

  • Shell and Caps: Steel
  • Float Valve: Brass with a stainless steel needle
  • Float Ball: Stainless steel
  • Connections: Plated steel

This regulator is designed to be reliable and easy to maintain, making it a valuable component in maintaining the efficiency and reliability of refrigeration and air conditioning systems.
