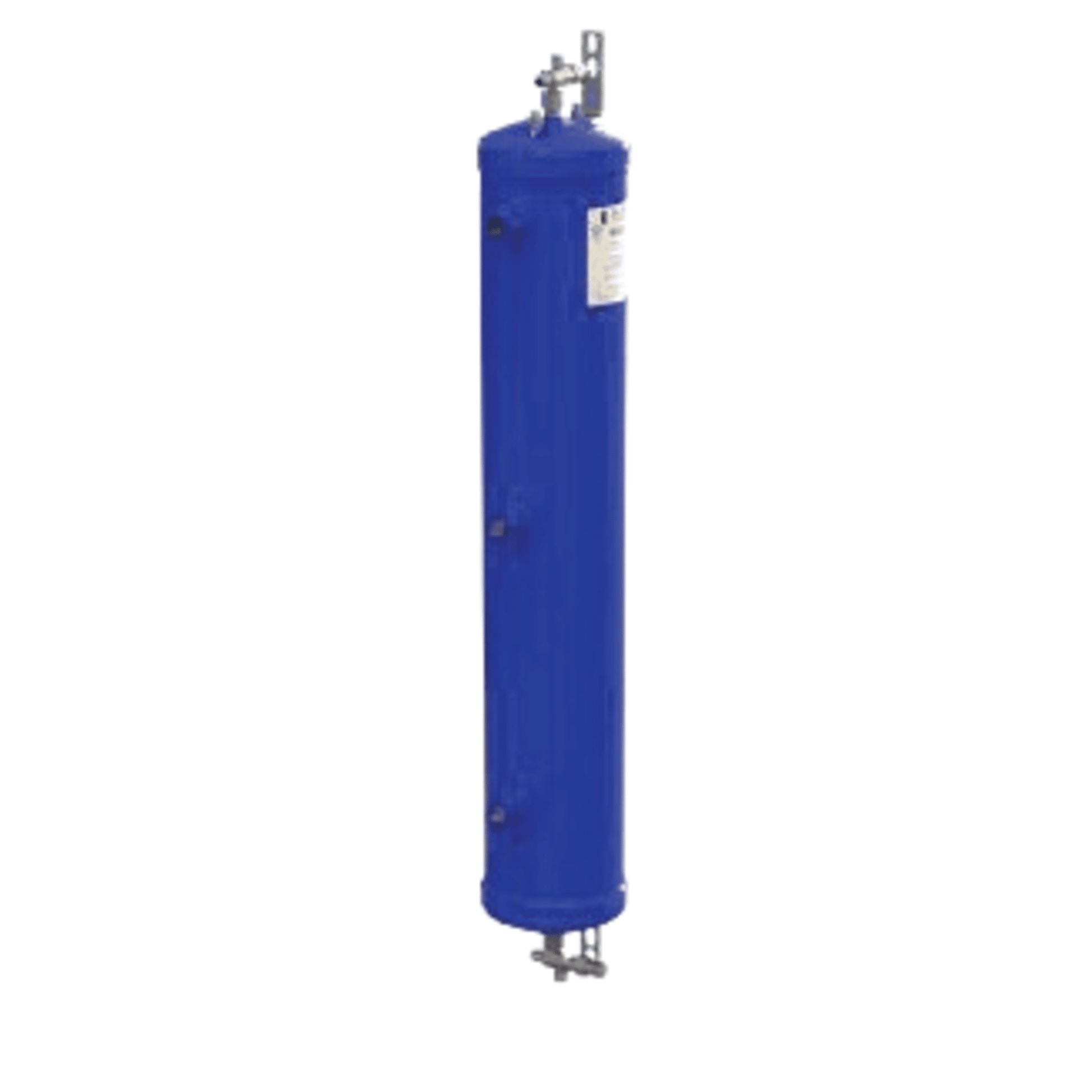

Henry S-9108U, Oil Reservoir, 3 Gallons

The Henry S-9108U Oil Reservoir is designed to provide reliable oil storage and supply for refrigeration and air conditioning systems. Here are the key technical details:

Features:

• Capacity: 3 gallons
• Sight Glass Ports: Allows for easy monitoring of the oil level inside the reservoir
• Top and Bottom Valves: The top valve receives oil from the oil separator, while the bottom valve distributes oil to the oil level regulators
• Rotalock Valves: Facilitates easy oil filling and draining

Specifications:

• Maximum Working Pressure: 450 PSI (31 Bar)
• Operating Temperature Range: +32°F to +266°F (0°C to +130°C)
• Dimensions: Height - 7.875 inches, Length - 23.274 inches, Width - 6.283 inches
• Weight: 28 lbs

Applications:

The S-9108U oil reservoir is used to maintain a safety reserve of oil, accommodating varying amounts of oil returned by the oil separator due to system design, loads, and defrost cycles. It is suitable for use in parallel compressor systems and other industrial applications requiring consistent oil flow.

Materials of Construction:

• Shell and Caps: Steel
• Sight Glass: Tempered glass
• Valves: Brass with stainless steel components

This reservoir is designed to be durable and reliable, ensuring the efficient operation of oil control systems in various industrial settings.
