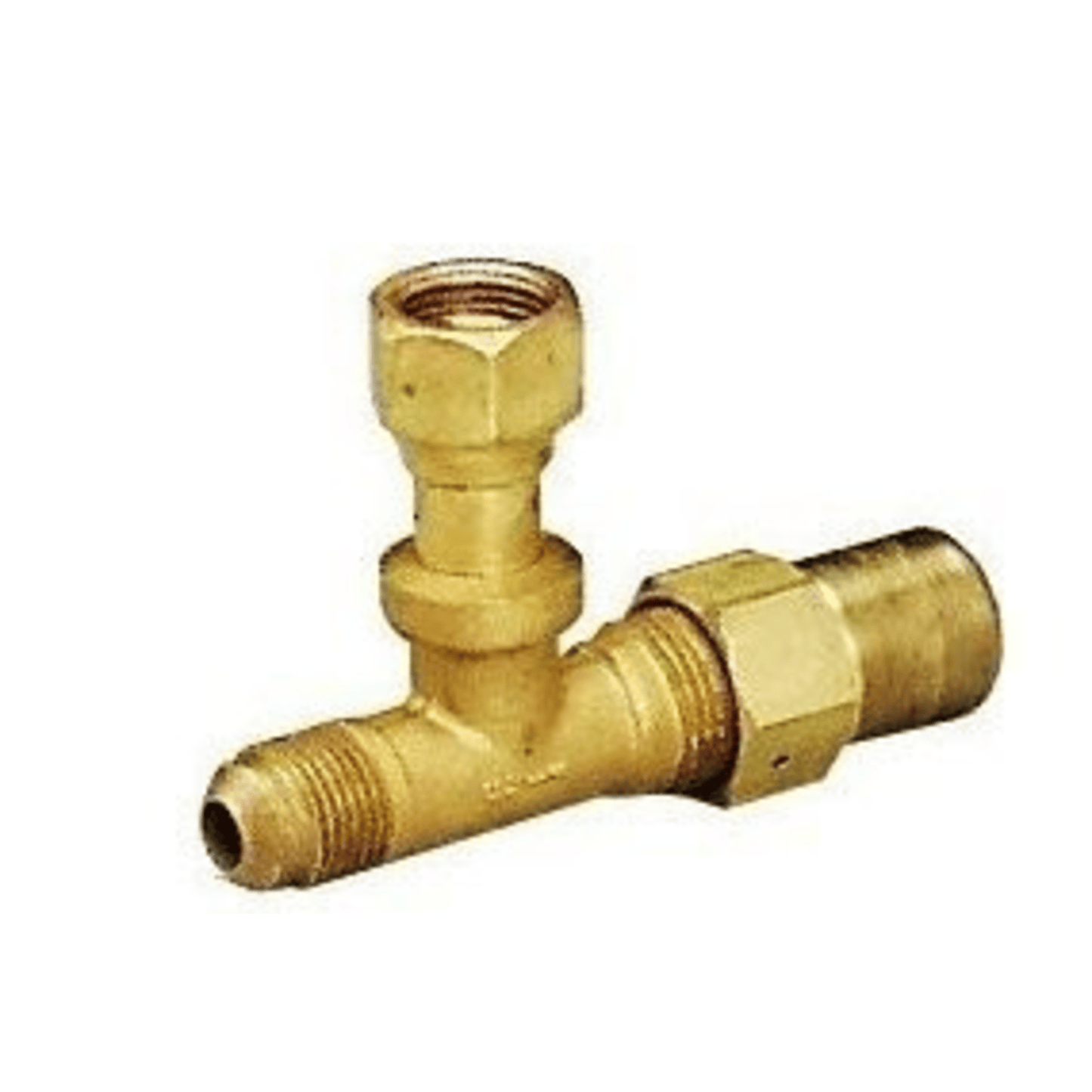

Henry S-9106H, Oil Level Regulator Shut-Off Valve, 3/8 Flare

The Henry S-9106H Oil Level Regulator Shut-Off Valve is designed to provide reliable isolation for oil level regulators and oil separator return fittings in refrigeration and air conditioning systems. Here are the key technical details:

Features:

• Connection Type: 3/8" SAE flare swivel inlet and 3/8" SAE flare outlet
• Horizontal Configuration: Designed for horizontal mounting on oil inlet connections and equalization line connections
• 360° Positioning: The female swivel SAE flare connection allows for 360° positioning of the male SAE flare connection for convenient mounting
• Isolation Capability: Enables isolation of each oil level regulator for maintenance or service

Specifications:

• Maximum Working Pressure: 450 PSI (31 Bar)
• Operating Temperature Range: 14°F to 212°F (-10°C to 100°C)
• Weight: Approximately 2 lbs

Applications:

The S-9106H shut-off valve is suitable for use with HFC and HCFC refrigerants and their associated oils, as well as other industrial fluids that are non-corrosive to steel, brass, copper, and nylon. It is typically used in oil management systems to isolate oil level regulators during service or maintenance.

Materials of Construction:

• Valve Body: Brass
• Stem: Steel
• Swivel Connection: Brass and copper
• Seal Cap: Brass

This valve is designed to be durable and reliable, ensuring efficient operation and maintenance of oil control systems in various industrial settings.
