Henry S-8690V, Receiver, Horizontal ASME w/ BRKTs & Valves, 10-3/4 x 36

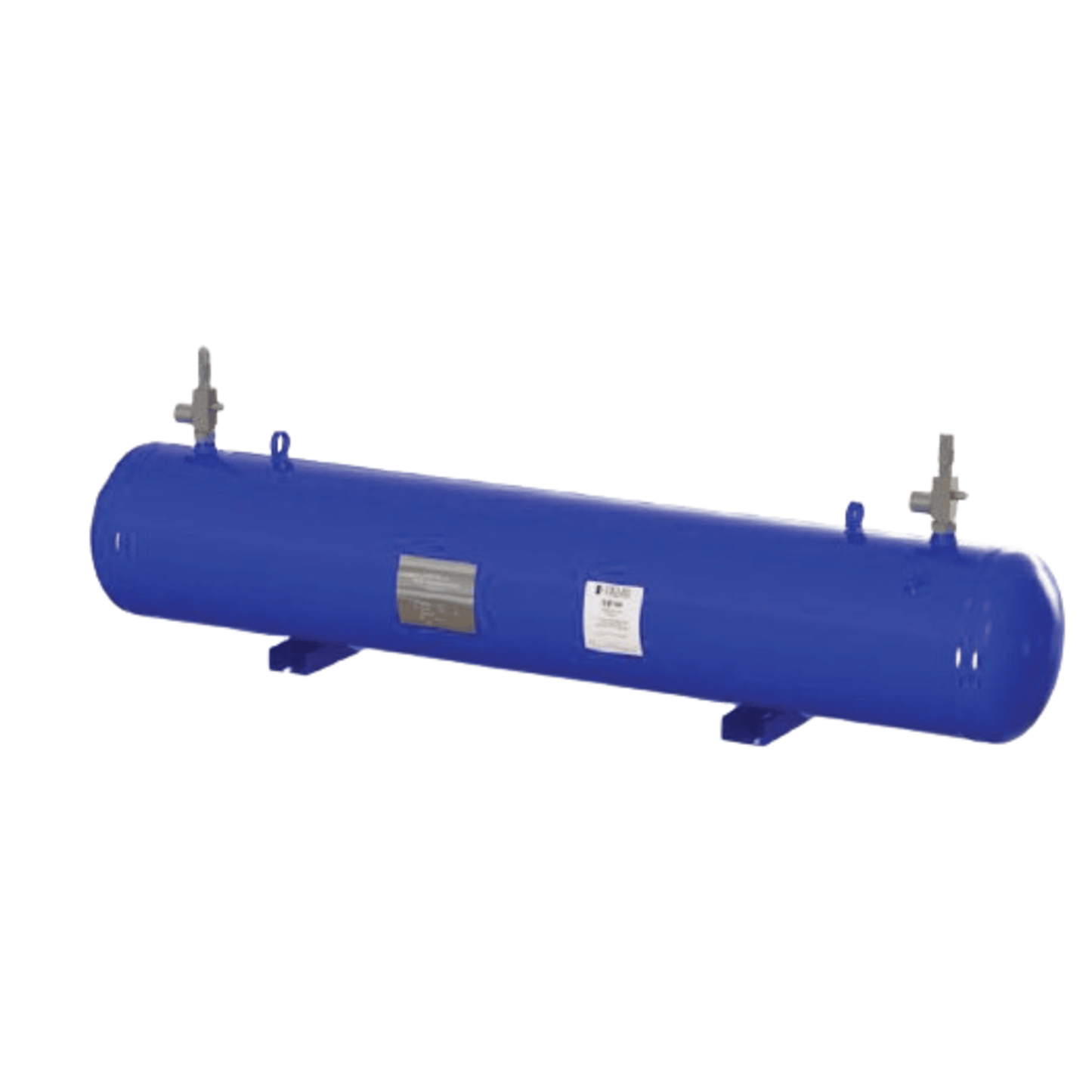

Henry S-8690V Receiver

Type: Horizontal ASME Receiver with Brackets & Valves

Dimensions: 10-3/4" Diameter x 36" Length

Description: The Henry S-8690V Receiver is a horizontal liquid refrigerant receiver designed to store liquid refrigerant and ensure a continuous supply to the expansion device in refrigeration and air conditioning systems. This receiver is built to ASME standards, ensuring high quality and safety.

Key Features:

• Material: Constructed from high-quality steel for durability and corrosion resistance.
• Design: Horizontal configuration with integrated brackets for easy mounting.
• Valves: Equipped with necessary valves for efficient operation and maintenance.
• ASME Certification: Built to meet ASME standards for pressure vessels, ensuring reliability and safety.

Technical Specifications:

• Maximum Working Pressure: 450 PSI (31 Bar)
• Volume: 10-3/4" diameter provides ample storage capacity.
• Connections: 7/8" ODS (Outside Diameter Sweat) connections for easy integration into the system.
• Relief Valve: Includes a relief valve to prevent overpressure conditions.

Applications:

• Ideal for use in commercial and industrial refrigeration systems.
• Suitable for air conditioning systems requiring reliable liquid refrigerant storage.
• Can be used in systems with HCFC and HFC refrigerants and their associated oils.

Certifications:

• ASME certified for safety and performance.
• Complies with industry standards for pressure vessels.
