Henry - Receiver, 219.1 x 914.4mm, 1-1/8" ODS in x 7/8" ODS out, Horizontal ASME - S-8640
Original price
$1,662.24
-
Original price
$1,662.24
Original price
$1,662.24
$1,662.24
-
$1,662.24
Current price
$1,662.24
SKU HEN-S-8640
Availability:
We will Check on Delivery Time and Advise

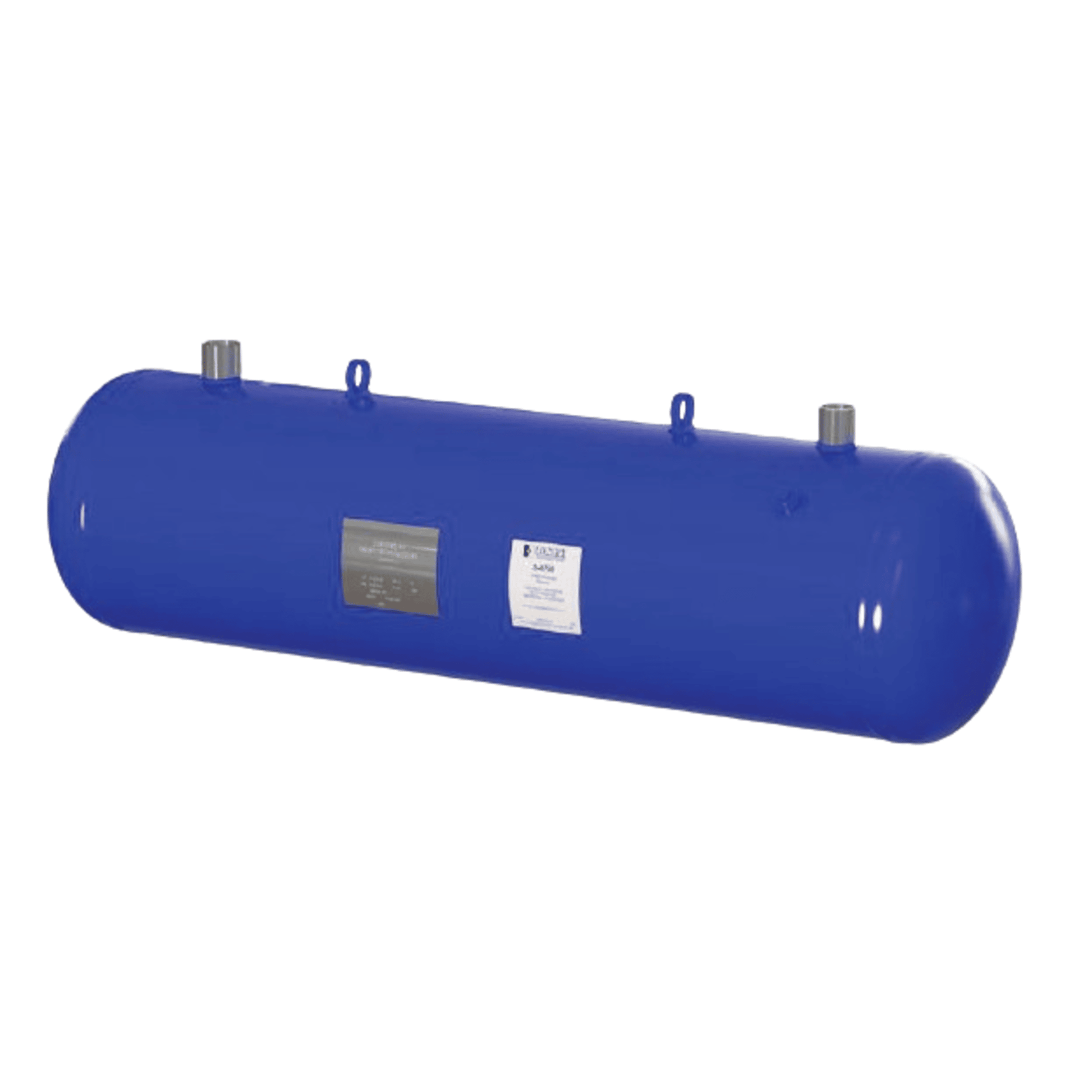

Henry S-8640 Receiver, 219.1 x 914.4mm, 1-1/8" ODS in x 7/8" ODS out, Horizontal ASME.
Store liquid refrigerant to provide continuous flow of liquid refrigerant to the expansion device and provide storage for the refrigerant charge during system service or maintenance.
Features
- Rugged coating for protection
- Standard NPT PRV port
- Can be fitted with a choice of isolating valves
- Mounting legs on all models
- Can be highly customized to suit application
- Can be fitted with sight glasses, or ports to fit liquid level switches or probes
Product Details
- Part Number: S-8640
- Brand: Henry Technologies
- Series: Horizontal Liquid Refrigerant Receiver (ASME)
- Category: Pressure Vessels › Liquid Refrigerant Receivers
- Suitable For: Conventional Refrigerants
- Max Working Pressure: 31 Barg (449.6 PSIg) up to 130 Bar (1885 PSIg). Consult with Factory
- Operating Temperature Range: -29˚C to +121˚C (-20°F to +250°F)
- Refrigerant Compatibility: A2L, CO2, HC, HCFC, HFC, HFO and R717 where materially compatible
- Sizes Available: Inlet/Outlet Connections from 3/8" up to 2-1/8" with Rotalock valves or as ODS fittings Can be customized with various options Pump down capacities from 18 kg up to 188 kg (40 lbs to 415 lbs)
- Product Certification: ASME
