Henry - Receiver, Vertical UL, 88.9 x 190.5mm, 1/4 Flare - S-8061

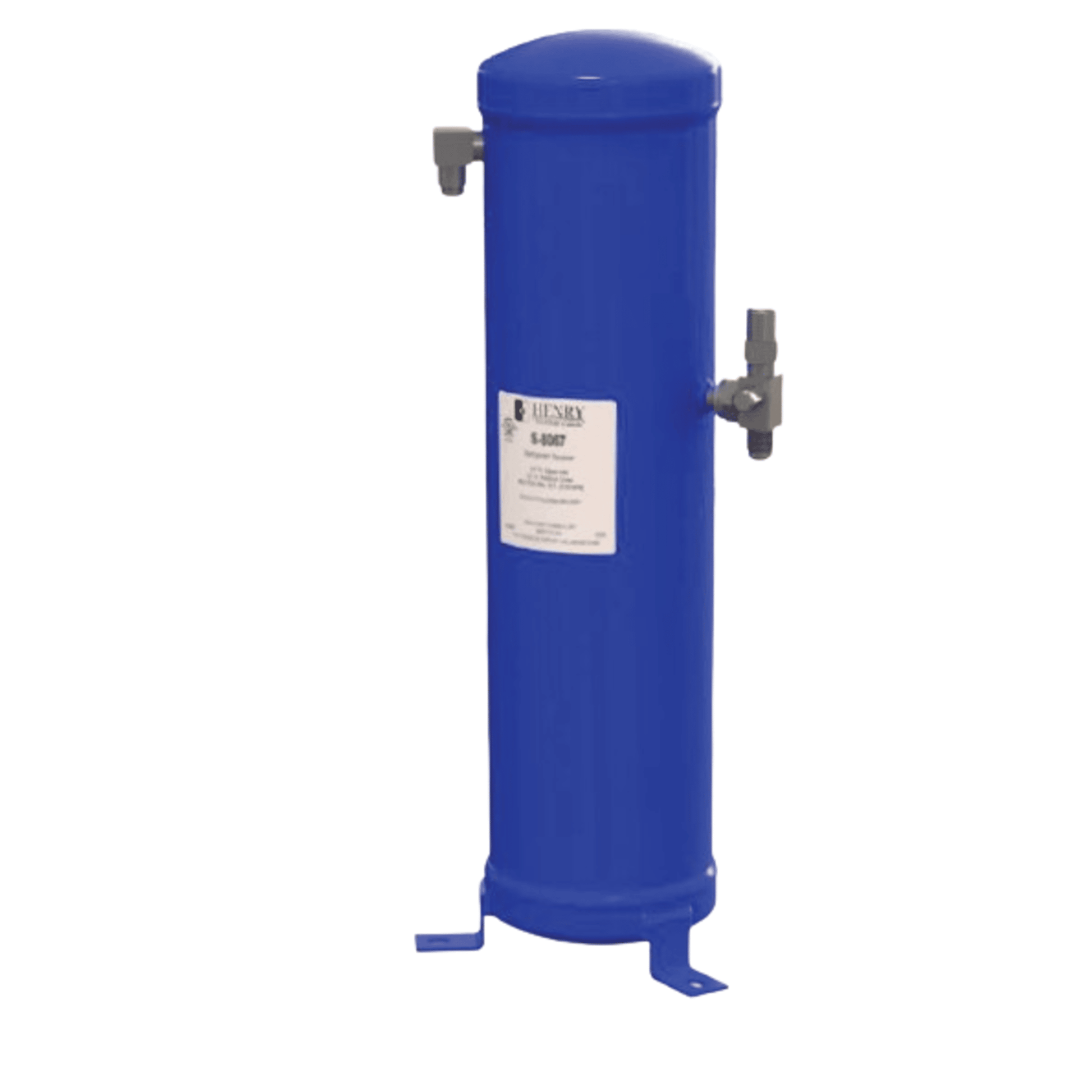

Henry S-8061 Receiver, Vertical UL, 88.9 x 190.5mm, 1/4 Flare.

Store liquid refrigerant to provide continuous flow of liquid refrigerant to the expansion device and provide storage for the refrigerant charge during system service or maintenance.

Features

• Fully welded vertical two piece design
• Rotalock connectors
• Internal dip tube
• Rugged powder coating
• Connector for PRV
• Stud mounting

Product Details

• Part Number: S-8061
• Brand: Henry Technologies
• Series: Vertical Liquid Refrigerant Receiver
• Category: Pressure Vessels › Liquid Refrigerant Receivers
• Suitable For: Conventional Refrigerants
• Max Working Pressure: 3310-Series: 32 Barg (464.1 PSIg) S-806X Series: 31 Barg (449.6 PSIg) SHP-Series, exclusive of SHP-8030D/8030E: 47 Barg (681.6PSIg) SHP-8030D/8030E: 48.2 Bar (699 PSIg)
• Operating Temperature Range: 3310-Series: 0˚C to +50˚C (+32˚F to +122˚F) S-806X Series and SHP-Series: -18˚C to +121˚C (-0.4˚F to +249.8˚F)
• Refrigerant Compatibility: HCFC, HFC and other industrial fluids non-corrosive to steel, copper and Teflon
• Sizes Available: 3310-Series: 5/16" ID Inlet and 5/16" ID Outlet, 1/4" ID Inlet and 3/4" RL Outlet, 3/8" ID Inlet and 3/4" RL Outlet, 1/2" ID Inlet and 3/4" RL Outlet and 1" RL Inlet and 1" RL Outlet S-806X Series: 1/4" Inlet SAE Flare and 1/4" Outlet SAE Flare, 3/8" Inlet SAE Flare and 3/8" Outlet SAE Flare, 3/8" Inlet SAE Flare and 1/2" Outlet SAE Flare, 1/2" Inlet SAE Flare and 1/2" Outlet SAE Flare and 5/8" Inlet SAE Flare and 5/8" Outlet SAE Flare SHP-Series: 3/8" ODS Inlet and 3/8" ODS Outlet and 5/8" ODS Inlet and 5/8" ODS Outlet
• Product Certification: 3310-Series: AS2971.2, CE and UKCA S-806X Series: N/A (SEP) and UL207 SHP-Series: AS2971.2, N/A (SEP) and UL207
