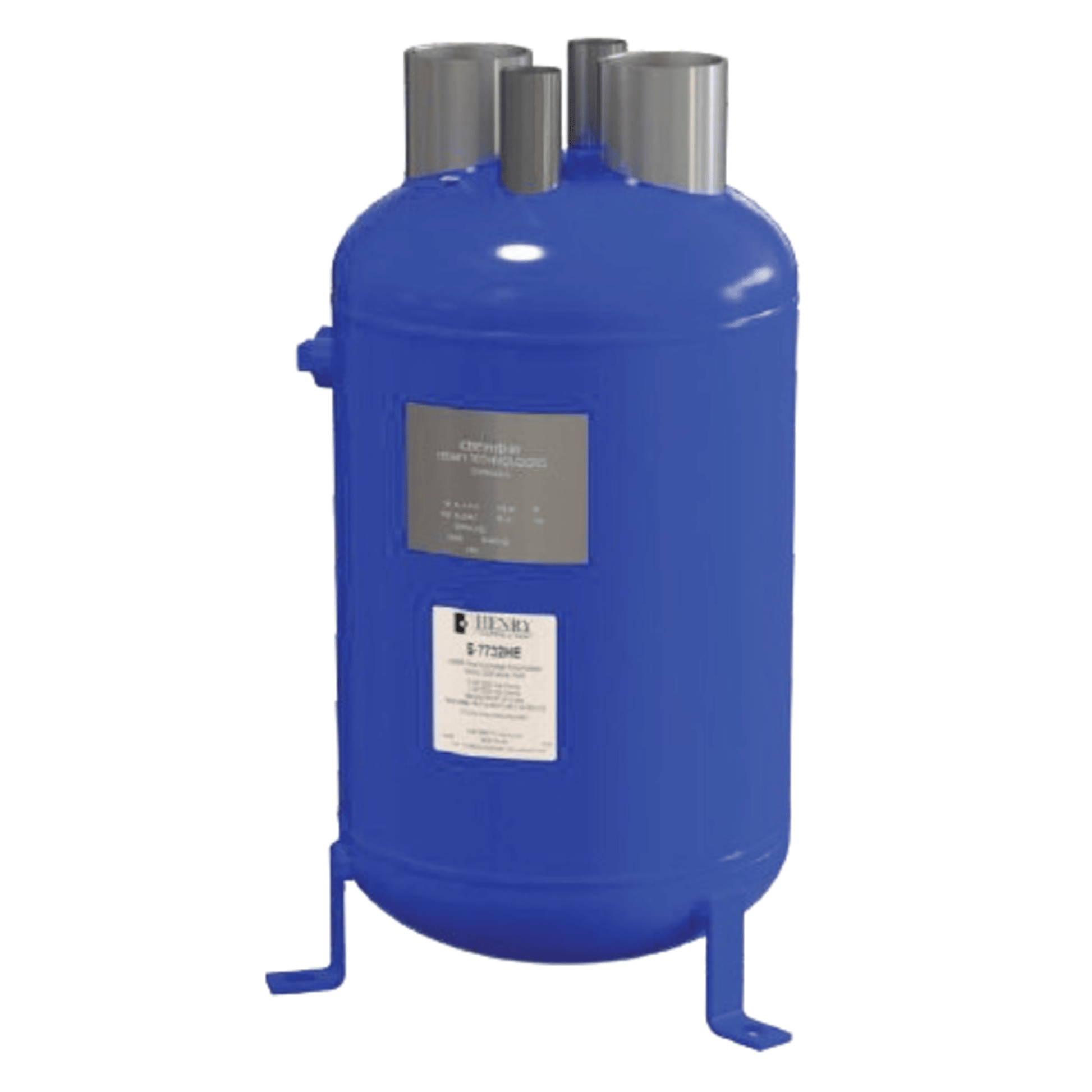

Henry S-7726, Accumulator, Suction Line, Vert ASME w/ Op. 1" FPT CXN for S-9400 Series, 2-5/8 ODS

The Henry S-7726 Accumulator is a vertical suction line accumulator designed for use in refrigeration and air conditioning systems. Here are its key technical specifications and features:

• Model: S-7726
• Series: S-9400
• Connection Type: 1" FPT (Female Pipe Thread) connection
• Tube Diameter: 2-5/8" ODS (Outside Diameter Solder)
• Mounting Orientation: Vertical
• Compliance: ASME (American Society of Mechanical Engineers) standards

Functionality

The primary function of the Henry S-7726 Accumulator is to provide temporary storage and controlled return of liquid refrigerant and oil to the compressor. This helps protect the compressor from damage caused by sudden surges of liquid refrigerant.

Applications

• Air Conditioning Systems: Ensures efficient operation by preventing liquid refrigerant from entering the compressor.
• Refrigeration Systems: Maintains system efficiency and proper crankcase oil levels by metering liquid refrigerant and oil back to the compressor at a controlled rate.

Additional Features

• Nitrogen Charged: The accumulator is pre-charged with nitrogen to ensure system integrity and prevent contamination.
• Durability: Built to withstand high pressures and harsh operating conditions, ensuring long-term reliability

This accumulator is an essential component for maintaining the efficiency and longevity of your refrigeration or air conditioning system
