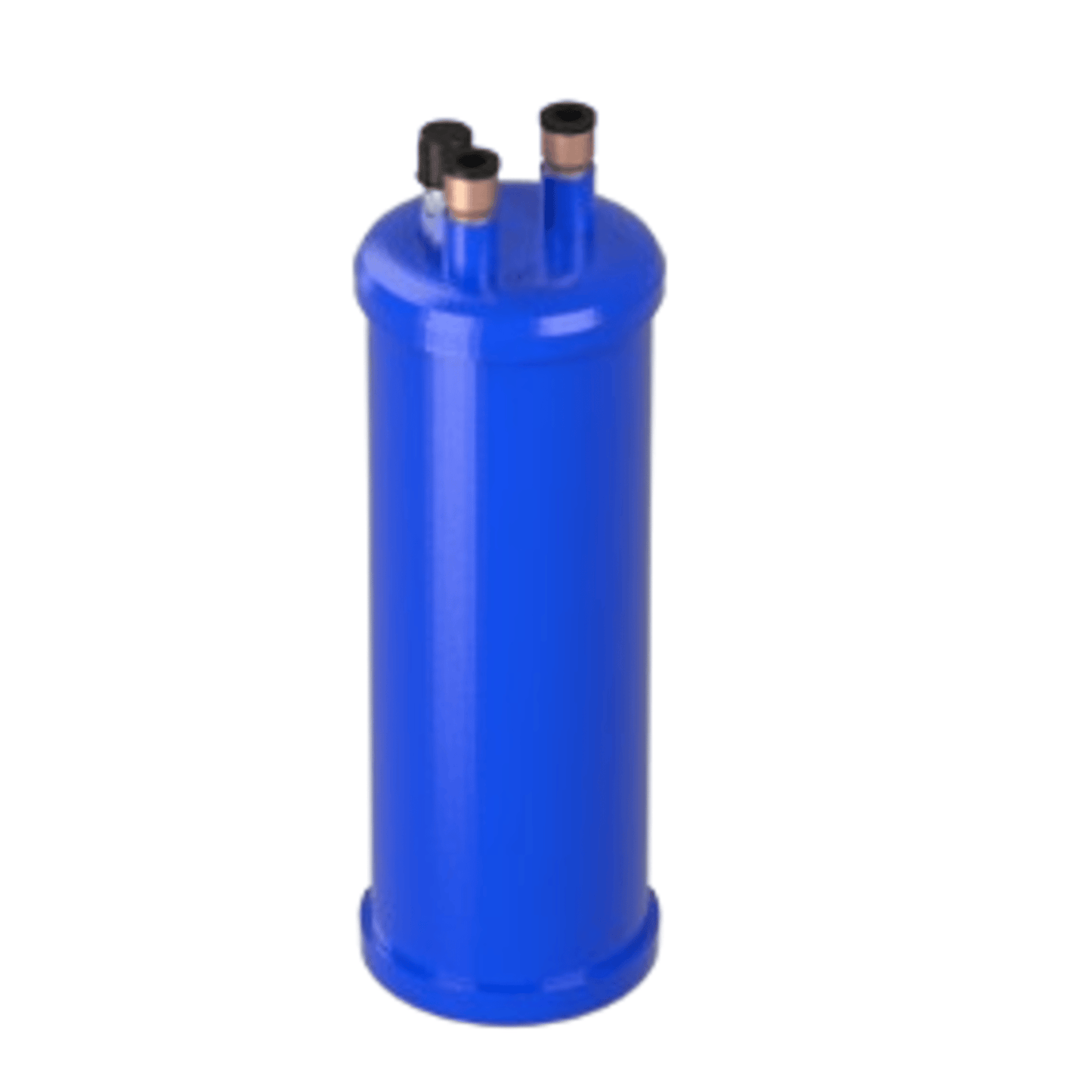

Henry - Oil Separator, Conventional Welded Top Inlet/Top Outlet, 1/4" ODS, 3/8" FL Return, 6.35mm - S-5580

Henry S-5580 Oil Separator, Conventional Welded Top Inlet/Top Outlet, 1/4" ODS, 3/8" FL Return, 6.35mm.

Remove oil from the discharge gas and return it to the compressor, either directly or indirectly.

Features

• Low pressure drop
• Cleanable/replaceable oil float assemblies for S-19 models

Product Details

• Part Number: S-5580
• Brand: Henry Technologies
• Series: Conventional Oil Separator
• Category: Pressure Vessels › Oil Separators
• Suitable For: A2L Refrigerants, Conventional Refrigerants
• Max Working Pressure: 31 Barg (449.6 PSIg)
• Operating Temperature Range: -10˚C to +130˚C (+14˚F to +266˚F)
• Refrigerant Compatibility: A2L, CO2, HCFC, HFC, HFO and HC compatible with the vessel materials
• Sizes Available: 3210-Series and 3240-Series (with Sight Glasses): 3/8" ODS, 1/2" ODS, 5/8" ODS, 7/8" ODS, 1 1/8" ODS, 1 3/8" ODS and 1 5/8" ODS 3230-Series: 7/8" ODS, 1 1/8" ODS, 1 3/8" ODS and 1 5/8" ODS 3220-9618-2: 1 1/8" ODS S-55 Series: 1/4" ODS, 3/8" ODS, 1/2" ODS, 5/8" ODS, 7/8" ODS, 1 1/8" ODS and 1 3/8" ODS S-56 Series: 7/8" ODS, 1 1/8" ODS, 1 3/8" ODS, 1 5/8" ODS and 2 1/8" ODS S-19 Series: 1 5/8" ODS, 2 1/8" ODS, 2 5/8" ODS and 3 1/8" ODS
• Product Certification: AS2971.2, CE, UKCA and UL207 (Not for 3210/3220/3230/3240-Series)
