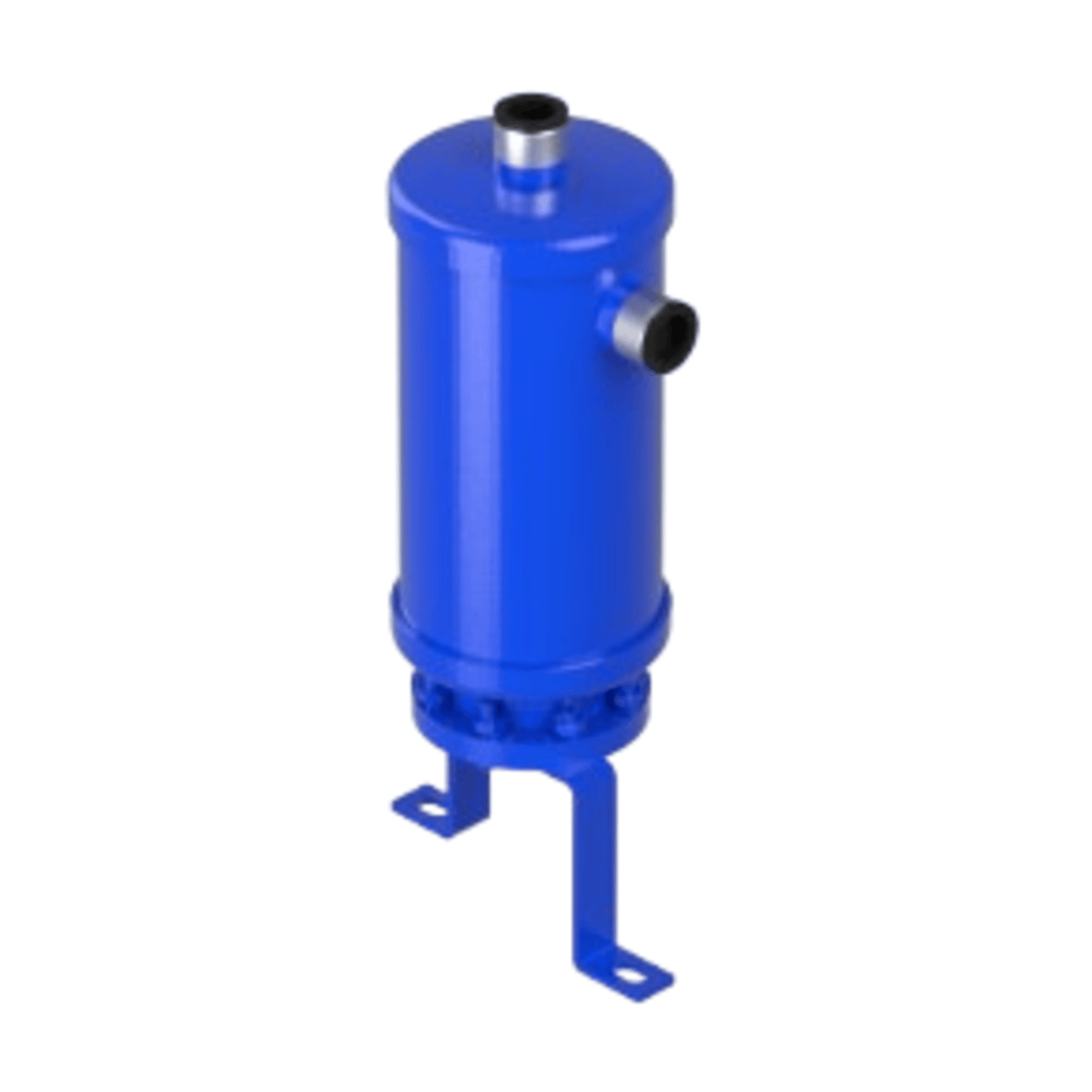

Henry - Oil Separator, Helical with Reservoir (Gardian), 2-1/8" ODS, 3/8" FL Return, 53.975mm - S-5294

Henry S-5294 Oil Separator, Helical with Reservoir (Gardian), 2-1/8" ODS, 3/8" FL Return, 53.975mm.

Efficiently remove oil from the discharge gas and return it to the compressor, either directly or indirectly.

Features

• Helical type
• Secondary screen cone
• Internal float
• 3/8″ flare oil return connector
• Removeable float assembly for maintanence or replacement
• Rugged powder coating
• Foot mounted

Product Details

• Part Number: S-5294
• Brand: Henry Technologies
• Series: Helical Oil Separator With Removable Float
• Category: Pressure Vessels › Oil Separators
• Suitable For: A2L Refrigerants, Ammonia, Conventional Refrigerants
• Max Working Pressure: 31 Barg (449.6 PSIg)
• Operating Temperature Range: -10˚C to +130˚C (+14°F to +266°F)
• Refrigerant Compatibility: A2L, CO2, HCFC, HFC, HFO & HC where materially compatible Note: S-5411 and S-5414 models are not currently suitable for use with R290 and A2L gases. The SN range is additionally suitable for use with R717 gases compatible with the vessel materials
• Sizes Available: S-5288: 1 1/8" ODS S-520X Series: 2 1/8" ODS and 2 5/8" ODS S-541X: 1 5/8" ODS, 2 1/8" ODS and 2 5/8" ODS S-529X and SN-529X Series: 1 3/8" ODS, 1 5/8" ODS and 2 1/8" ODS
• Product Certification: AS2971.2, CE, UKCA and UL207 (Not for S-541X Series and SN-529X Series)
