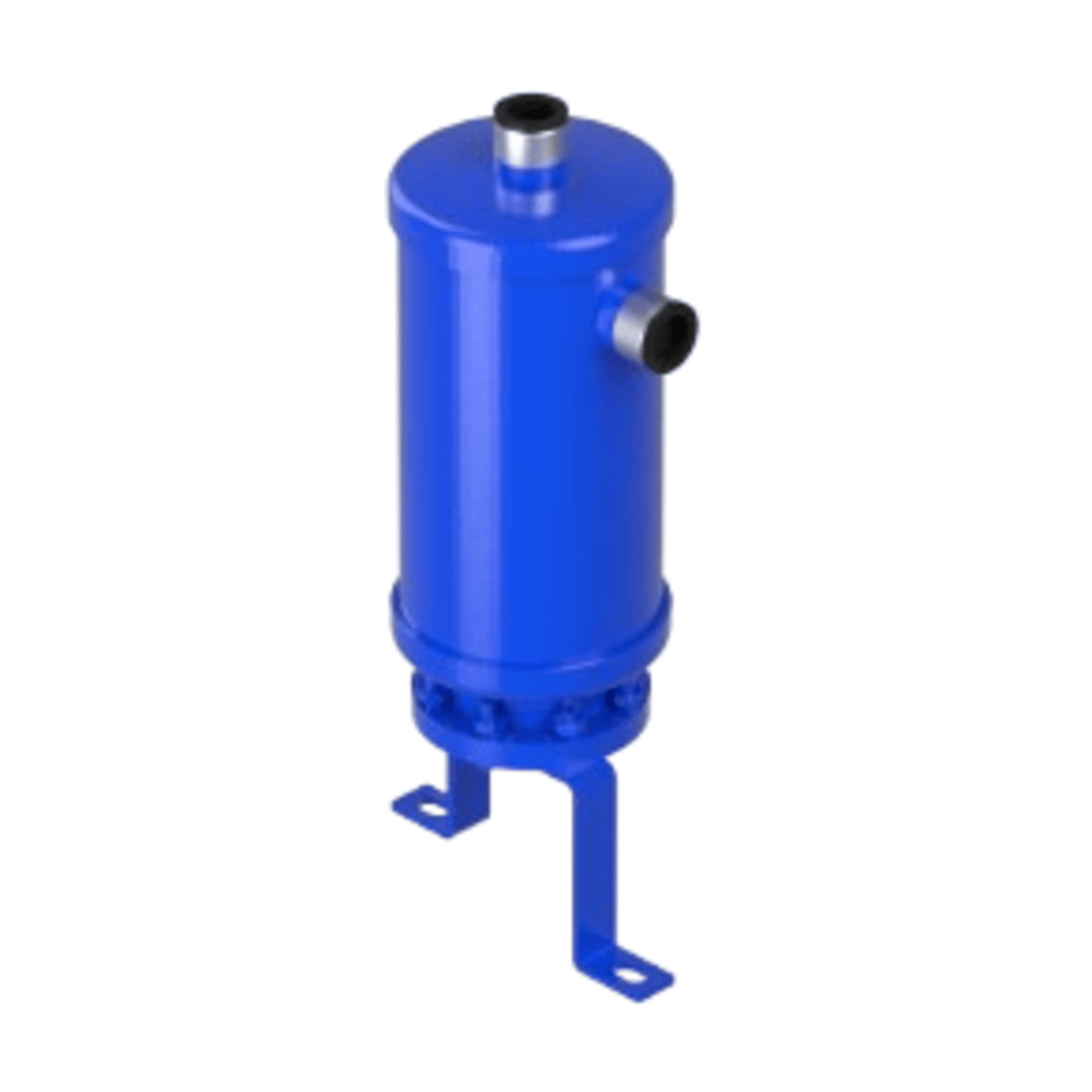

Henry S-5204, Oil Separator Helical Welded w/ Float & Welded Leg Brackets , 3-1/8 ODS, 3/8 FL Return

The Henry S-5204 Oil Separator is designed to efficiently remove oil from the discharge gas in refrigeration and air-conditioning systems, ensuring optimal performance and protection. Here are the key technical details:

• Model: S-5204
• Connection Size:
  • Inlet/Outlet: 3-1/8 inch ODS (Outside Diameter Solder)
  • Oil Return: 3/8 inch flare
• Construction: Helical welded design with a carbon steel shell and welded leg brackets for secure mounting
• Refrigerant Compatibility: Suitable for HCFC and HFC refrigerants, along with their associated oils
• Operating Temperature: -40°C to +130°C
• Operating Pressure: Up to 31 barg
• Certifications: UL, CE, ASME

Features:

• Helical Flow Path: Utilizes a centrifugal flow path to achieve approximately 99% efficiency in oil separation with low pressure drop
• High Efficiency: Designed to maintain the compressor crankcase oil level and improve system efficiency by preventing excessive oil circulation
• Internal Baffle System: Enhances oil separation efficiency by reducing gas velocity and allowing oil particles to coalesce and separate
• Float-Operated Needle Valve: Ensures reliable oil return to the compressor or oil reservoir
• Welded Leg Brackets: Provide secure mounting and easy installation
• Low Pressure Drop: Minimizes pressure drop, ensuring efficient operation of the refrigeration system
• No Moving Parts: Enhances reliability and reduces maintenance

This oil separator is engineered to provide superior protection and efficiency, ensuring the longevity and reliability of the system.
