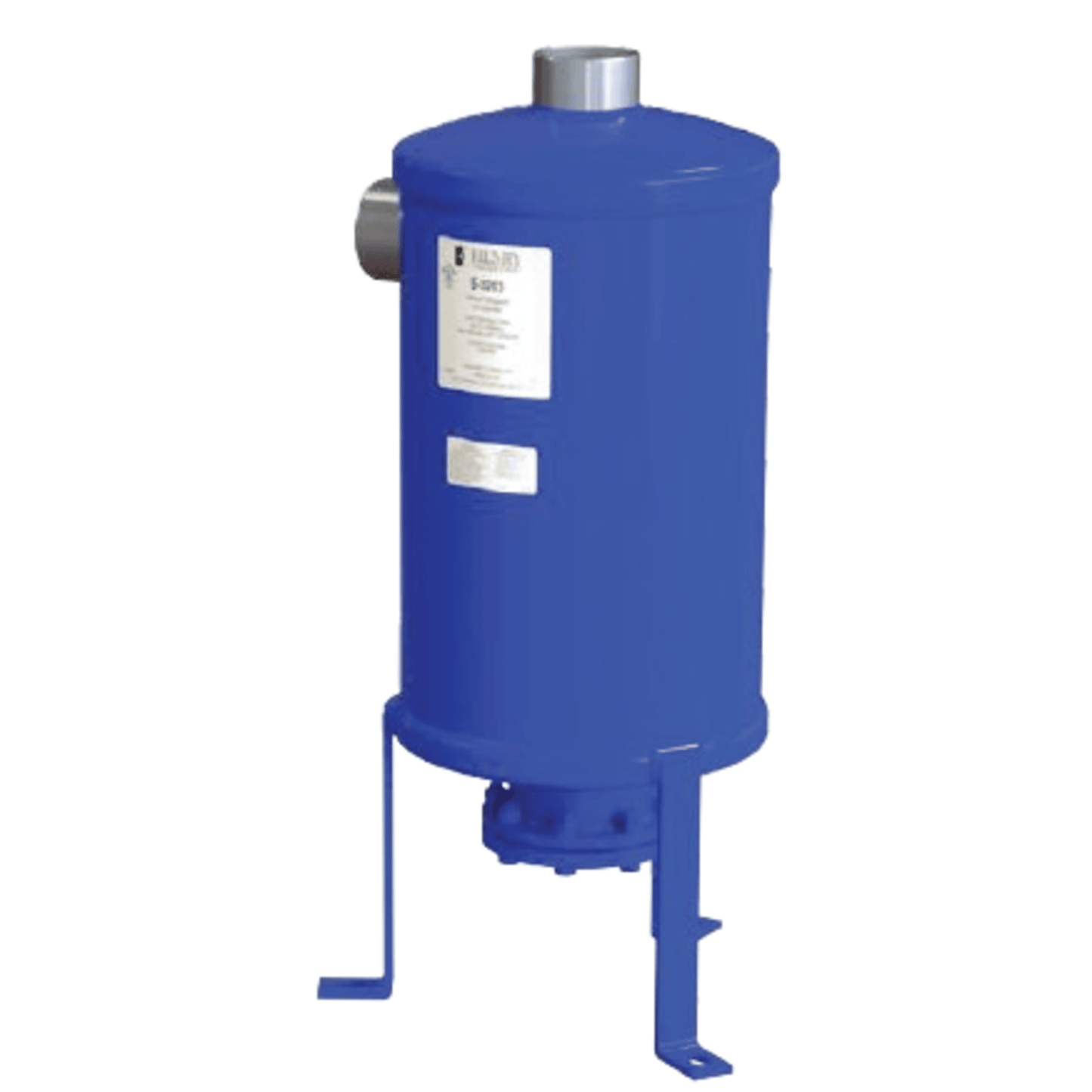

Henry S-5194, Oil Separator, Helical Welded - Side Inlet / Top Outlet CXN, S-5194

The Henry S-5194 Oil Separator is a high-efficiency, helical welded unit designed for refrigeration and air conditioning systems. Its primary function is to separate oil from the refrigerant gas, ensuring optimal performance and longevity of the system.

Key Specifications:

• Design: Helical welded construction
• Inlet/Outlet Configuration: Side inlet and top outlet
• Connection Size: 2 1/8" ODS (Outside Diameter Solder)
• Operating Temperature Range: -10°C to +130°C
• Pressure Ratings:
  • Design Pressure: 3.1 MPa
  • Leak Test Pressure: 3.1 MPa
  • Proof Test Pressure: 4.43 MPa
  • Minimum Burst Test Pressure: 15.5 MPa
• Pre-charge Volume: 1350 mL (45.5 fl.oz.)
• Finish: Powder-coated in Henry Blue RAL 5013

Features:

• Helical Design: The helical structure creates a centrifugal force that efficiently separates oil from the refrigerant gas, achieving approximately 99% efficiency with low pressure drop
• Durability: The welded construction ensures robustness and reliability, suitable for demanding applications.
• Compatibility: Designed for use with HCFC and HFC refrigerants, as well as their associated oils
• Application: Ideal for low-pressure oil management systems, particularly with scroll and reciprocating type compressors

This oil separator is engineered to enhance system efficiency by effectively removing oil from the discharge gas and returning it to the compressor, either directly or through an oil management system.
