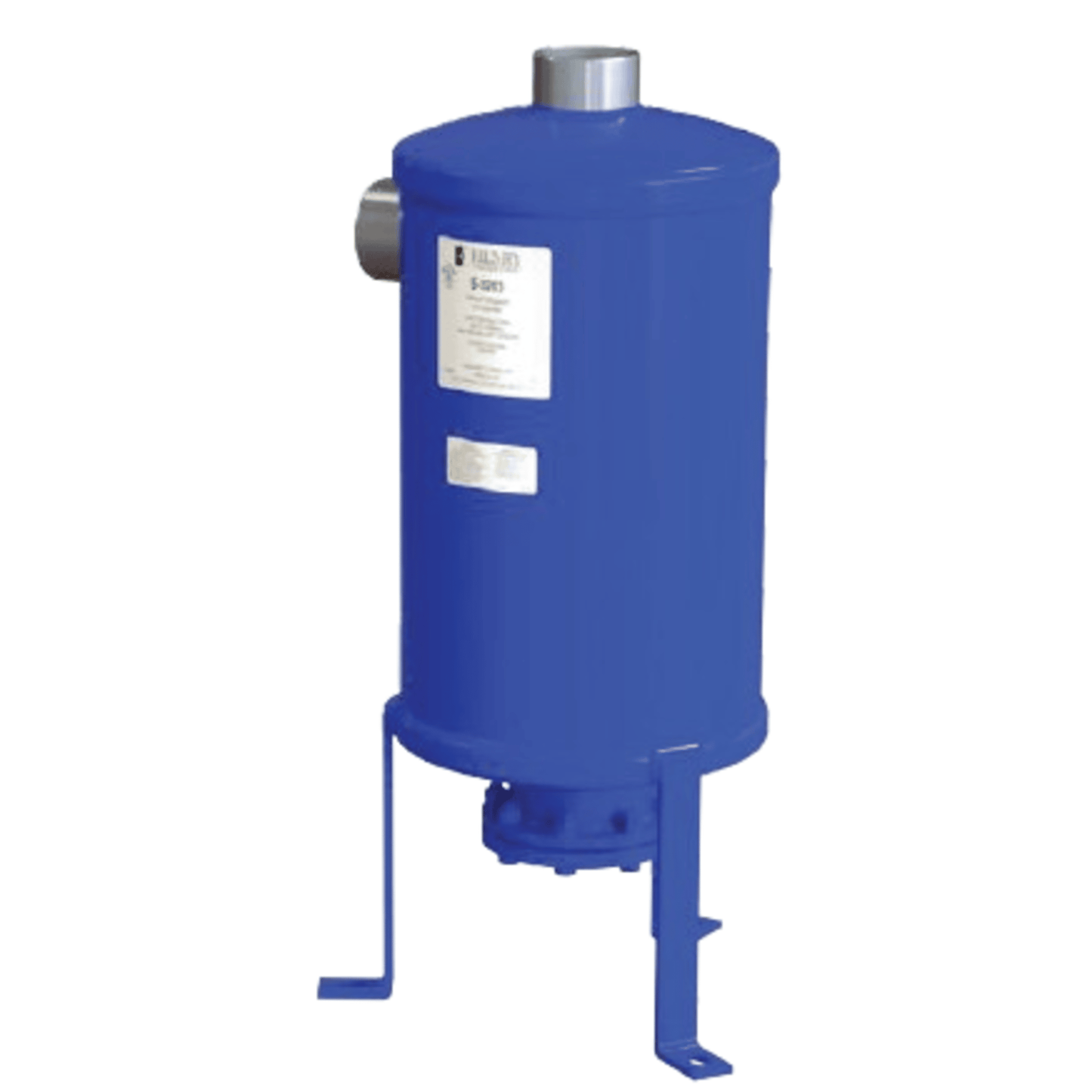

Henry S-5192, Oil Separator, Helical Welded - Side Inlet / Top Outlet CXN, S-5192

Henry S-5192, Oil Separator, Helical Welded - Side Inlet / Top Outlet CXN, S-5192

SKU: HEN-S-5192

$514.38 CAD
$514.38 CAD
Sale Sold out
Shipping calculated at checkout.

The Henry S-5192 Oil Separator is a helical welded oil separator designed for use in air conditioning and refrigeration systems. Here are the key technical details:

Technical Description

  • Model: Henry S-5192
  • Type: Helical Welded Oil Separator with Side Inlet and Top Outlet Connections
  • Inlet/Outlet Connection Size: 1-5/8" ODS (Outside Diameter Solder)
  • Oil Return Connection Size: 3/8" FL (Flare)
  • Compliance: ASME (American Society of Mechanical Engineers) standards

Features and Functions

  1. High Oil Separation Efficiency:

    • The helical design achieves approximately 99% efficiency in oil separation, ensuring that only a minimal amount of oil (about 0.006% by volume) is discharged into the system.

  2. Construction:

    • The unit features a welded steel shell with ODS refrigerant connections and SAE flare oil connections. It is suitable for use with HCFC and HFC refrigerants, as well as other industrial fluids that are non-corrosive to steel, copper, and brass.

  3. Centrifugal Flow Path:

    • The helical separator uses a centrifugal flow path to separate oil from the discharge gas, which helps maintain the compressor crankcase oil level and improves system efficiency by preventing excessive oil circulation.

  4. Integrated Oil Reservoir:

    • The integrated reservoir allows for efficient oil management and return to the compressor, either directly or through an oil management system.

  5. Low Pressure Drop:

    • Designed to minimize pressure drop, ensuring efficient operation of the refrigeration system.

  6. No Moving Parts:

    • The oil separation zone has no moving parts, which enhances reliability and reduces maintenance.

  7. Serviceability:

    • The separator includes a replaceable float assembly and welded leg brackets for easy maintenance.

Applications

  • Air Conditioning and Refrigeration Systems:
    • Ideal for multi-compressor racks and remote condensing units. Suitable for use with scroll and reciprocating type compressors, but not recommended for screw or rotary vane compressors.

This oil separator is a critical component for maintaining the efficiency and longevity of HVAC systems by effectively managing oil return to the compressor.

View full details
