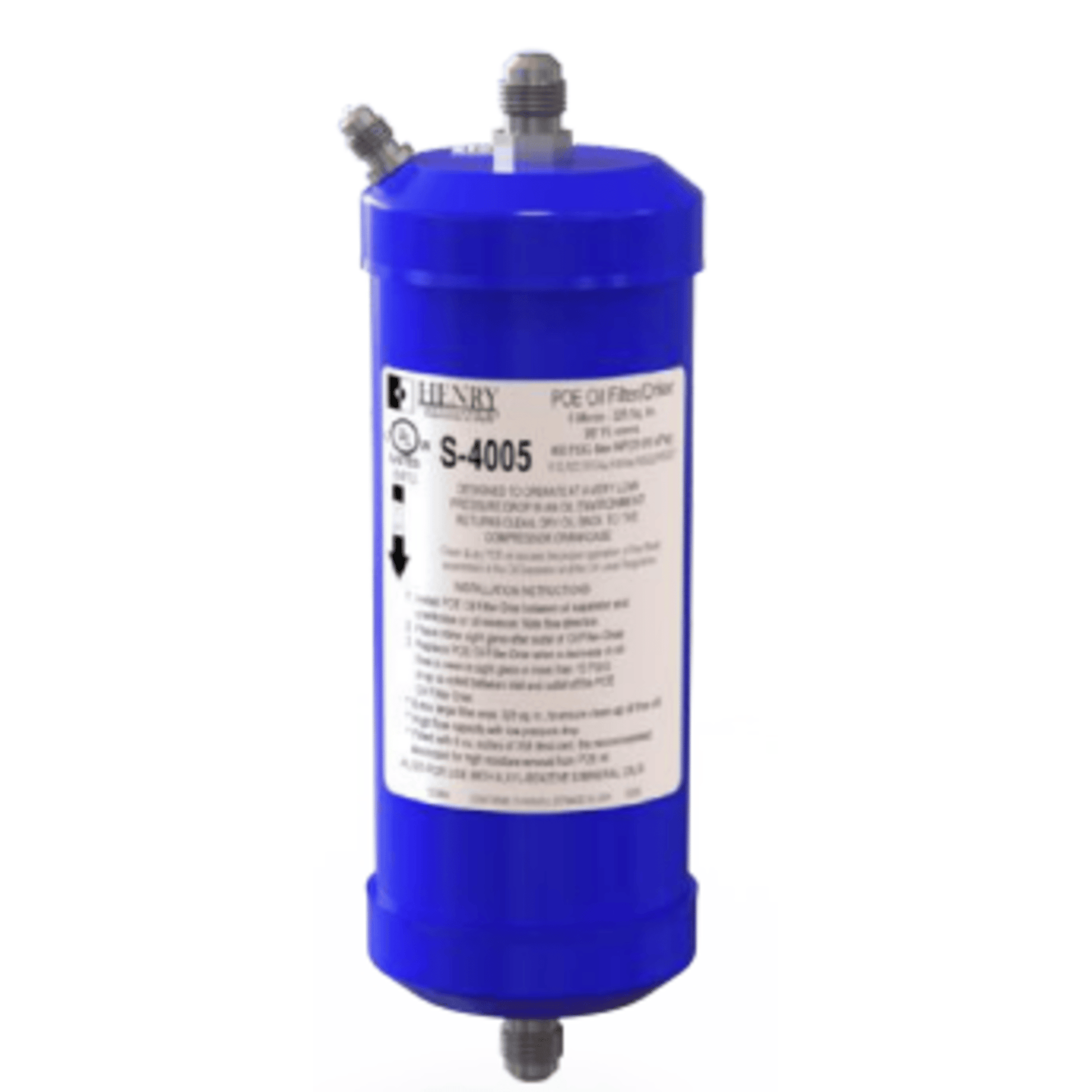

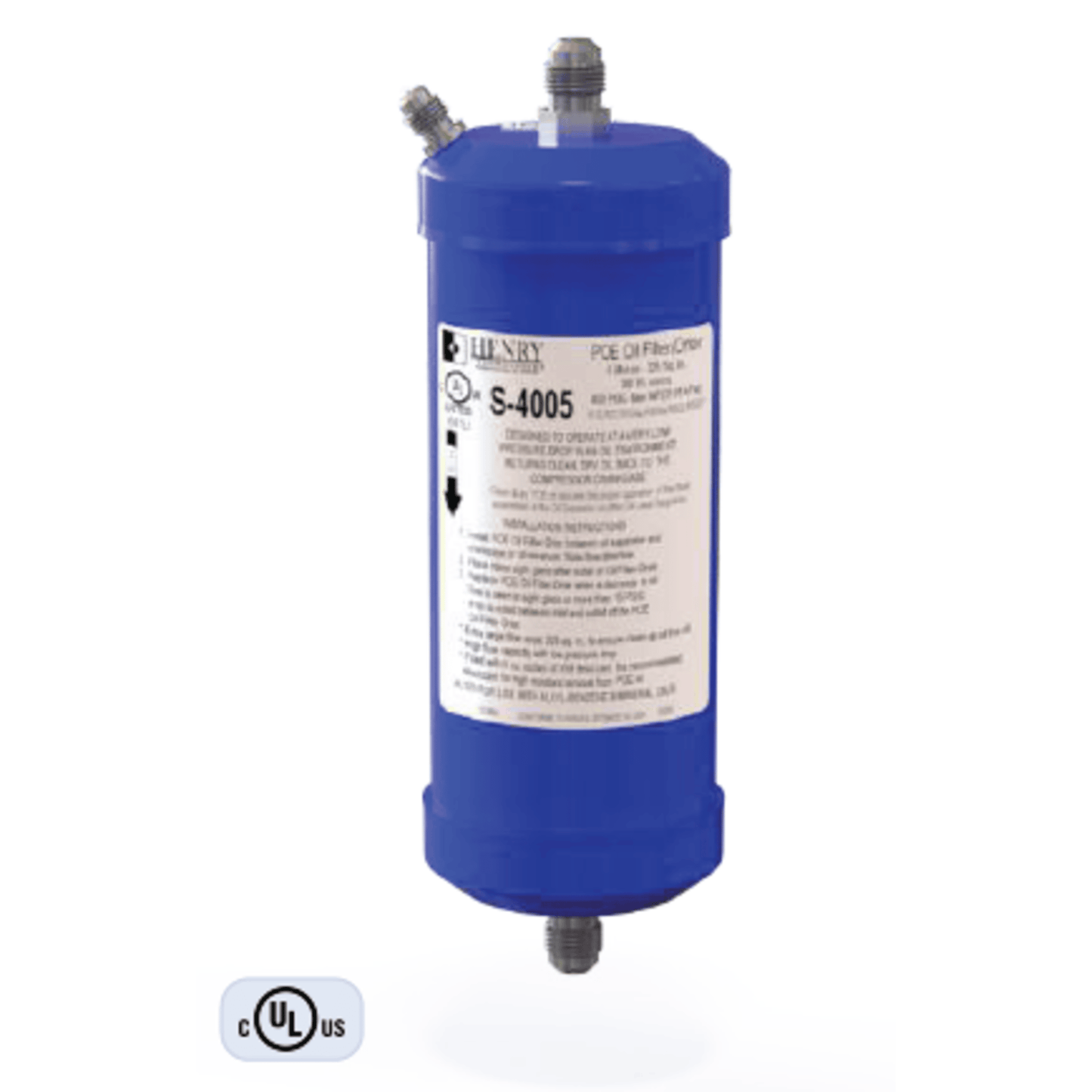

Henry S-4005, Oil Line Strainer & Filter, 3/8 Flare, Oil Filter/Drier for POE Oil

The Henry S-4005 Oil Line Strainer & Filter is a specialized component designed to ensure the efficient operation of refrigeration and air conditioning systems by filtering and drying the oil. Here are the key technical details:

Technical Description

Model: Henry S-4005
Type: Oil Line Strainer & Filter
Connections: 3/8" Flare
Compatibility: POE (Polyolester) Oil

Features and Functionality

1. Filtration Efficiency: The S-4005 model features a high flow capacity with a low pressure drop, ensuring efficient filtration without significantly impacting system performance. It can retain particles down to 6 microns, protecting the compressor and other components from debris

2. Moisture Removal: This oil filter/drier is particularly suited for systems using POE oil, which is more hygroscopic than mineral oil. The S-4005 effectively removes moisture from the oil, preventing potential issues caused by water contamination

3. Construction: Made from durable materials, including carbon steel for pressure-bearing components and synthetic rubber for O-rings, the S-4005 is built to withstand the demands of industrial applications

4. Installation: The unit is designed for easy installation in both low and high-pressure oil management systems. It is recommended to install the filter between the oil separator and the oil reservoir

5. Operating Conditions: The S-4005 can operate within a temperature range of 14°F to 212°F (-10°C to +100°C) and has a maximum working pressure of 450 PSI (31 Bar)

Applications

• Industrial refrigeration systems
• Air conditioning systems
• Compressor lubrication systems

The Henry S-4005 Oil Line Strainer & Filter is an essential component for maintaining the efficiency and reliability of systems using POE oil, ensuring clean and dry oil circulation.
