Henry Technologies

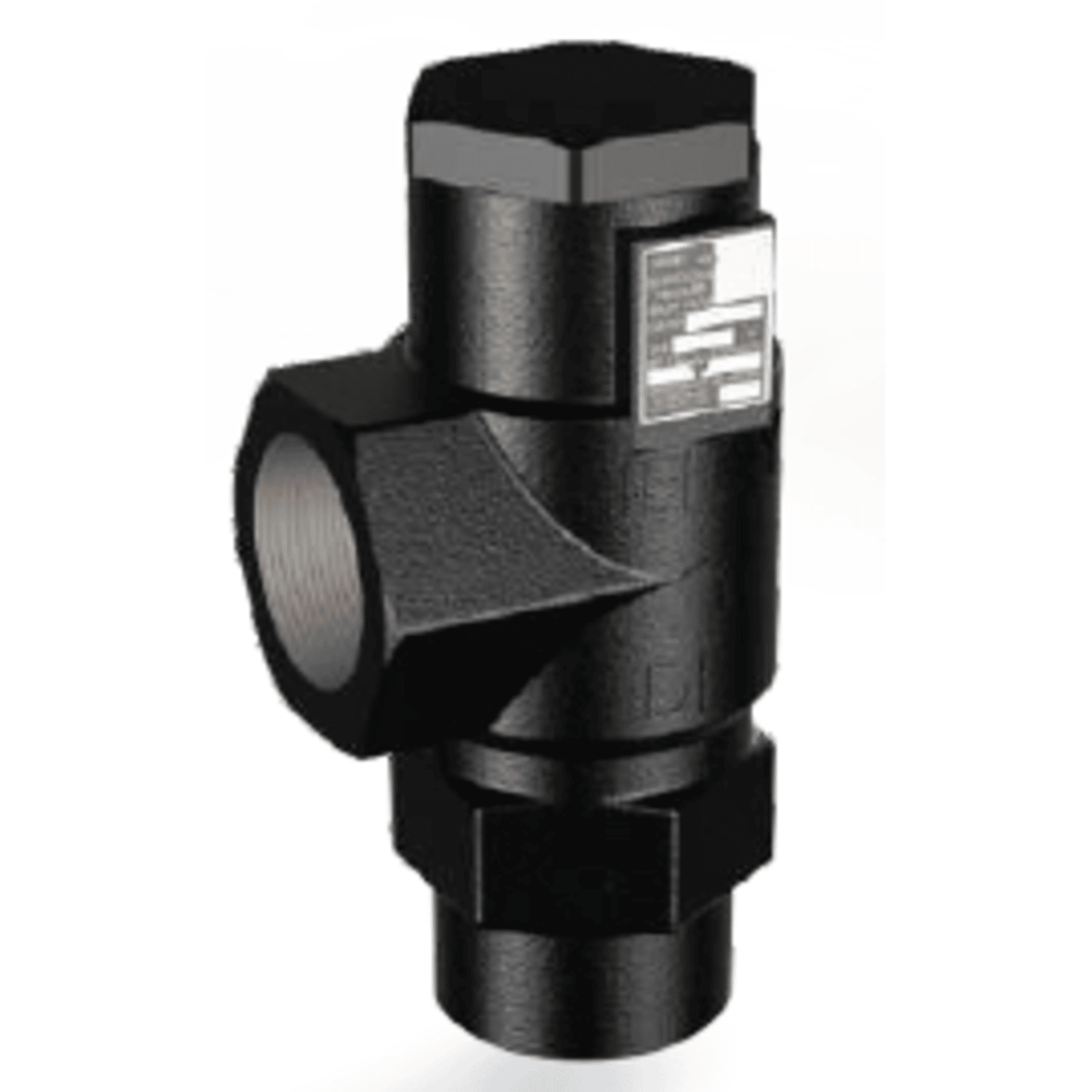

Henry 5604-180, Pressure Relief Valve, Cast Iron, Angle Type, 1-1/4" FPT X 1-1/2" FPT

Henry 5604-180, Pressure Relief Valve, Cast Iron, Angle Type, 1-1/4" FPT X 1-1/2" FPT

SKU: HEN-5604-180

Regular price $221.19 CAD
Regular price $221.19 CAD Sale price $221.19 CAD
Sale Sold out
Shipping calculated at checkout.

he Henry 5604-180 Pressure Relief Valve is a cast iron, angle-type valve designed for industrial applications. Here are the key technical specifications:

  • Body Material: Cast Iron
  • Inlet Connection: 1-1/4" Female Pipe Thread (FPT)
  • Outlet Connection: 1-1/2" Female Pipe Thread (FPT)
  • Pressure Range: 150 psi to 450 psi
  • Temperature Range: -20°F to +225°F (-29°C to +107°C)
  • Seat Material: Teflon® or Neoprene
  • Certifications: ASME UV and National Board certified
  • Suitable Fluids: Ammonia, HFCs, CFCs, and other industrial fluids non-corrosive to steel and Teflon
  • Features:
    • Stainless steel seat inserts and discs
    • Protective lacquer finish
    • Unique serialization for tagging requirements

This valve is designed to protect against accidental over-pressure in pressure vessels due to system malfunctions or fire
