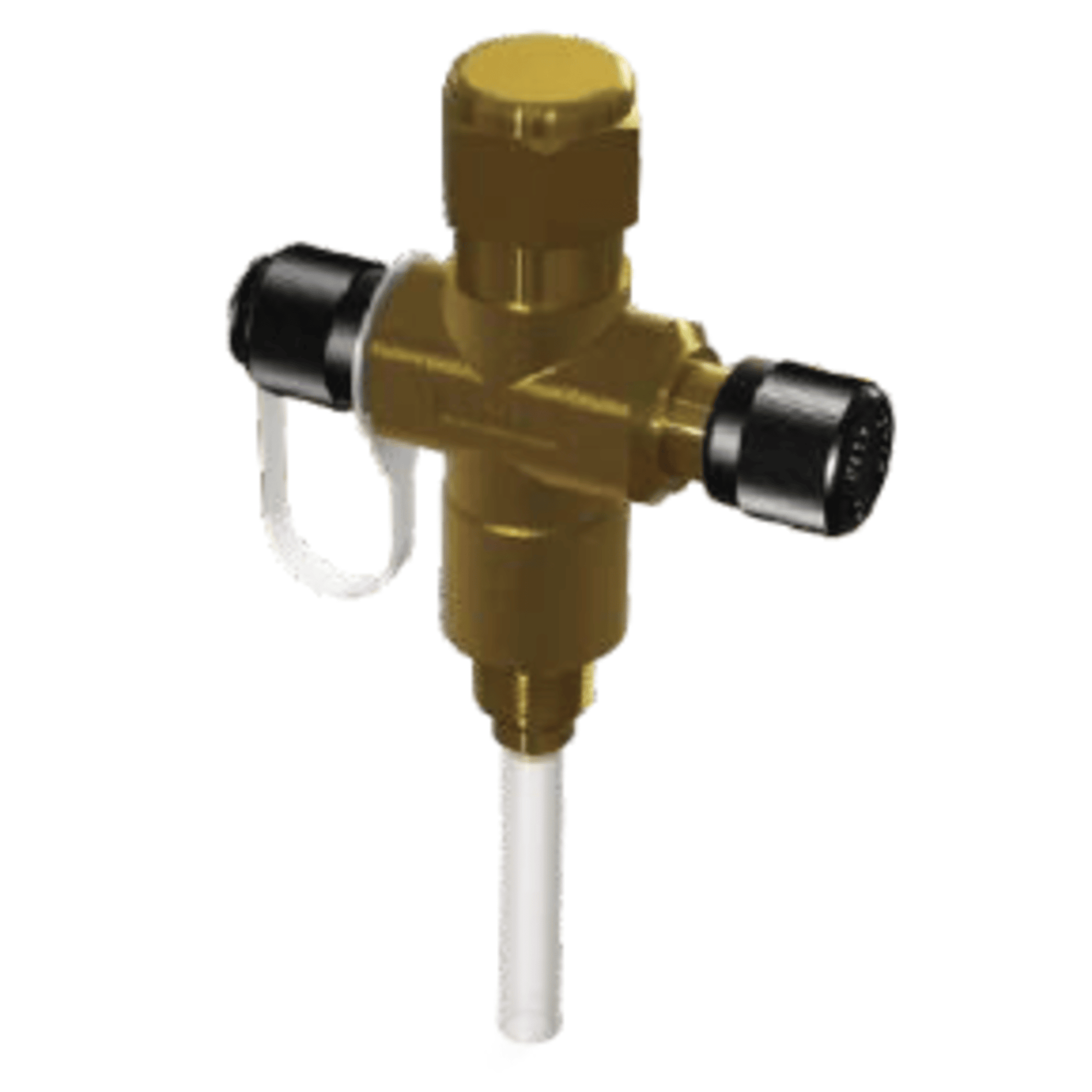

Henry 9297 Positive Oil Exchange Valve, 1/8 MPT x 1/4 FL

The Henry 9297 Positive Oil Exchange Valve is designed for efficient servicing of compressor crankcase oil. Here are the key technical specifications:

• Body Material: Brass valve body with a plated steel stem
• Inlet Connection: 1/8" Male Pipe Thread (MPT)
• Outlet Connection: 1/4" Female Flare (FL)
• Pressure Gauge Connection: SAE flare with Schrader valve
• Maximum Working Pressure: 500 psi (34.5 bar)
• Operating Temperature Range: -20°F to +250°F (-29°C to +121°C)
• Suitable Fluids: HCFC and HFC refrigerants, associated oils, and other industrial fluids non-corrosive to brass, steel, Teflon, and nylon
• Applications: Primarily intended for semi-hermetic type compressors
• Features:
  • Full port valve for fast charging and draining
  • Easy to install
  • Reduces service time and cost

This valve is an essential tool for the removal and replacement of compressor crankcase oil, ensuring efficient maintenance and operation of refrigeration and air conditioning systems
