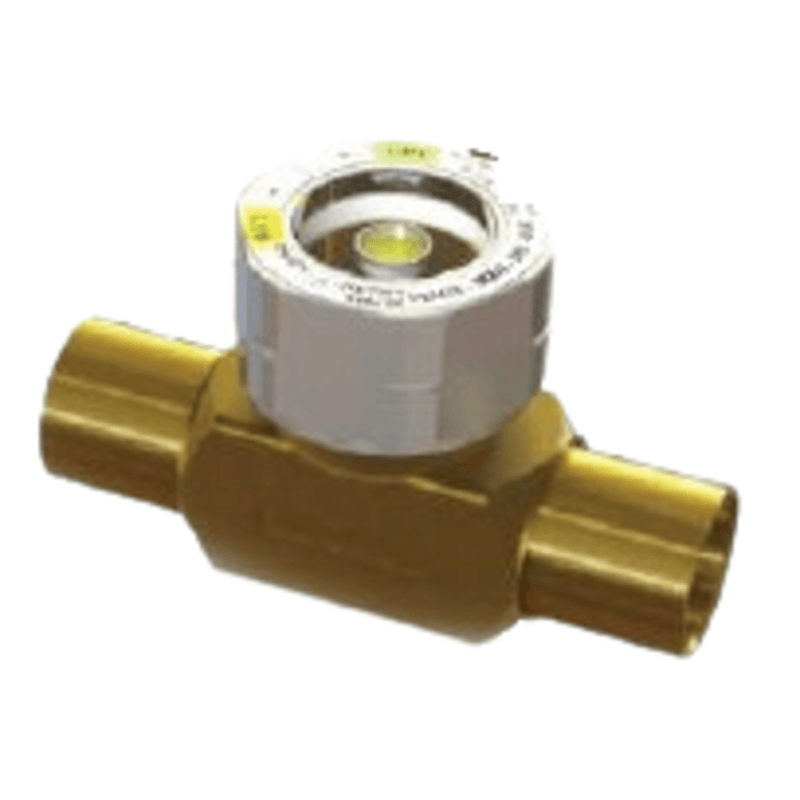

Moisture Indicator, 7/8 OD Solder - DRI-VUE - Single Port - Henry

The Henry MI-30-7/8S DRI-VUE Moisture Indicator is designed to provide a visual indication of moisture levels in refrigeration and air-conditioning systems. Here are the key technical details:

• Model: MI-30-7/8S
• Connection Size: 7/8 inch OD solder
• Sensor Technology: Patented optical sensor technology
• Refrigerant Compatibility: Suitable for HCFC and HFC refrigerants, along with their associated oils
• Construction: Brass body with a fused glass prism in a plated carbon steel housing
• Operating Temperature: -10°C to +93°C
• Operating Pressure: 0 to 34.5 barg
• Certifications: UL, CE

Features:

• Visual Moisture Indication: Provides a clear visual indication of moisture levels within the system
• Replaceable Indicator Seal Cap: Allows for easy maintenance and replacement of the indicator
• Large Sight Glass: Ensures easy viewing of the moisture indicator
• In-Built Filter Screen: Protects the indicator paper from contaminants
• Color Indicators:
  • Green: Dry
  • Chartreuse: Caution
  • Yellow: Wet

This moisture indicator is engineered to ensure the optimal performance and protection of the system by providing accurate and reliable moisture level detection.
