Henry - Check Valve, MAGNA CHEK, MS-6, For 3/8" O.D. Tube Size - F6307
Original price
$38.94
-
Original price
$38.94
Original price
$38.94
$38.94
-
$38.94
Current price
$38.94
SKU HEN-F6307
Availability:
We will Check on Delivery Time and Advise

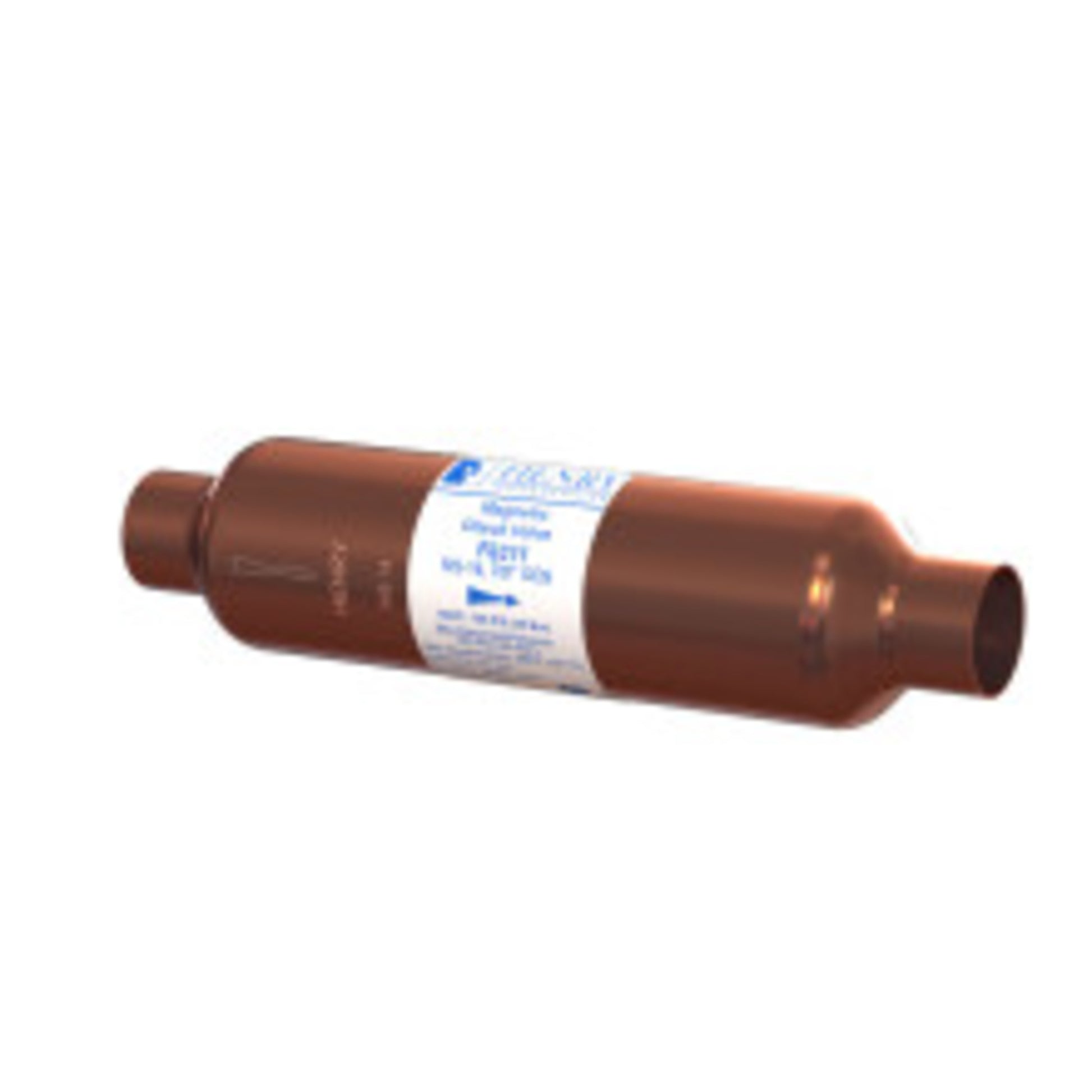

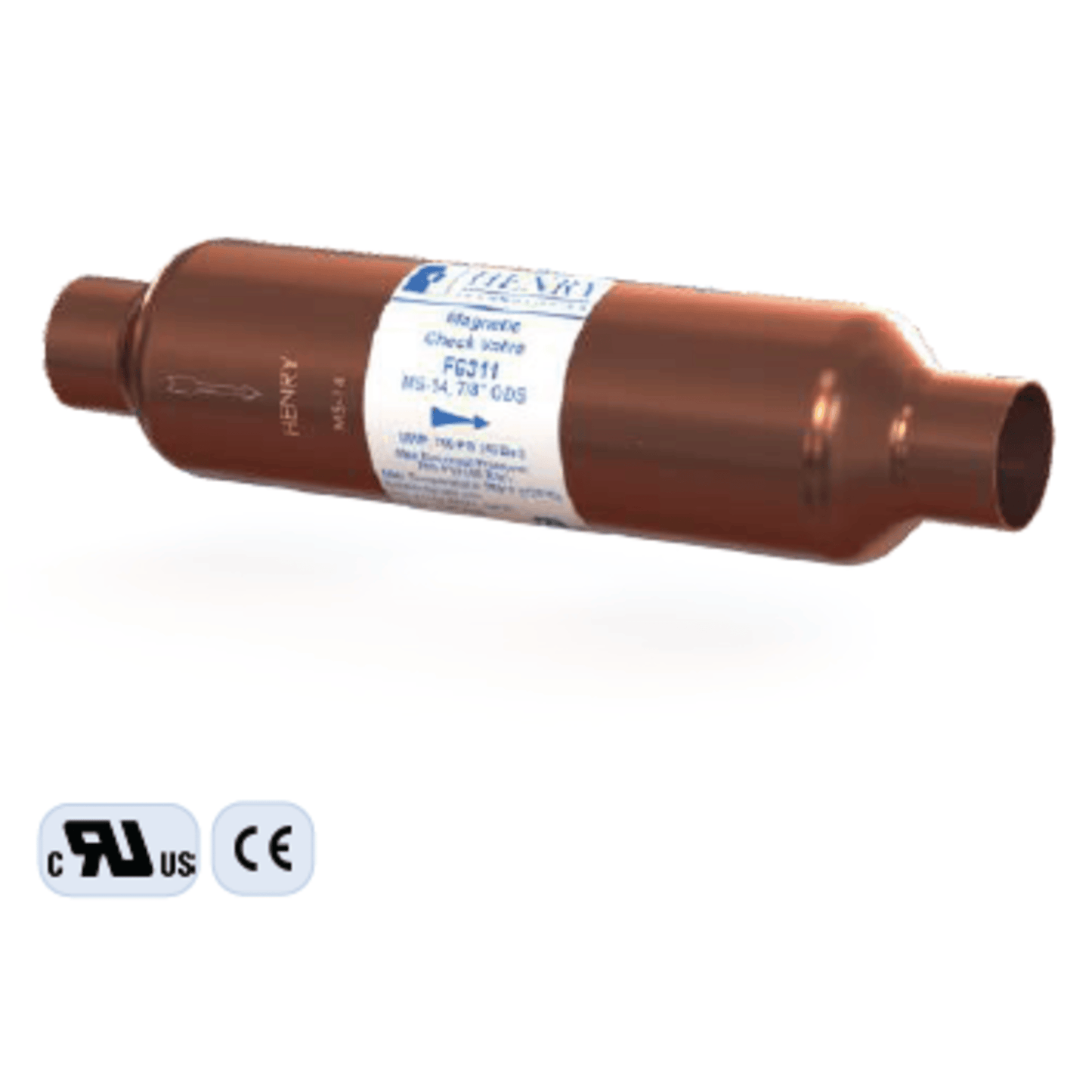

Henry F6307 Check Valve, MAGNA CHEK, MS-6, For 3/8" O.D. Tube Size.
Use magnetic attraction to return the valve plate to its seat rather than spring pressure.
Features
- Designed for maximum flow and minimal pressure drop
- Hermetically sealed copper body
- Optimised seat material with an elastomer coated valve plate
- Safe working pressures up to 55 Bar (R410A compatible)
- Multi orientation while maintaining flow direction
- Built in 30 mesh strainer
Product Details
- Part Number: F6307
- Brand: Henry Technologies
- Series: Magni-ChekTM Valve
- Category: Flow Controls › Check Valves
- Suitable For: A2L Refrigerants, Conventional Refrigerants
- Max Working Pressure: MS-4 to MS-6 Models: 55.2 Barg (800.6 PSIg) MS-8 to MS-34 Models: 48.3 Barg (700.5 PSIg) MS-42 to MS-50 Models: 44.8 Barg (649.8 PSIg)
- Operating Temperature Range: -40°C to +120°C (-40°C to +248°F)
- Refrigerant Compatibility: CO2, HCFC and HFC where materially compatible. Valves below 1.1/8" are additionally suitable for for A2L, HC and HFO where materially compatible
- Sizes Available: 1/4" to 3 1/8"
- Product Certification: CE and UKCA
