Henry F6313, MAGNI-CHEK VALVES (MS22), For 1-3/8" O.D. Tube Size

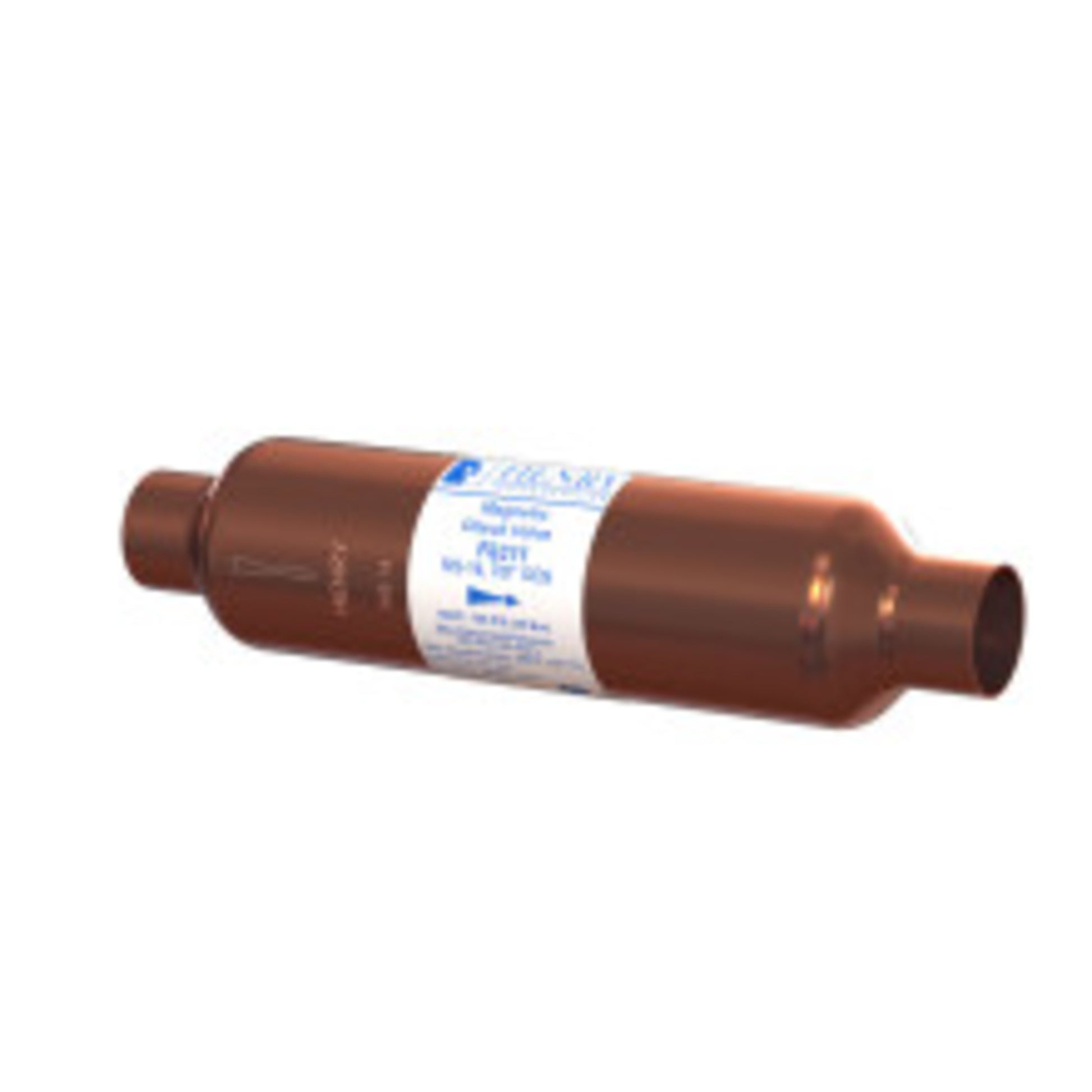

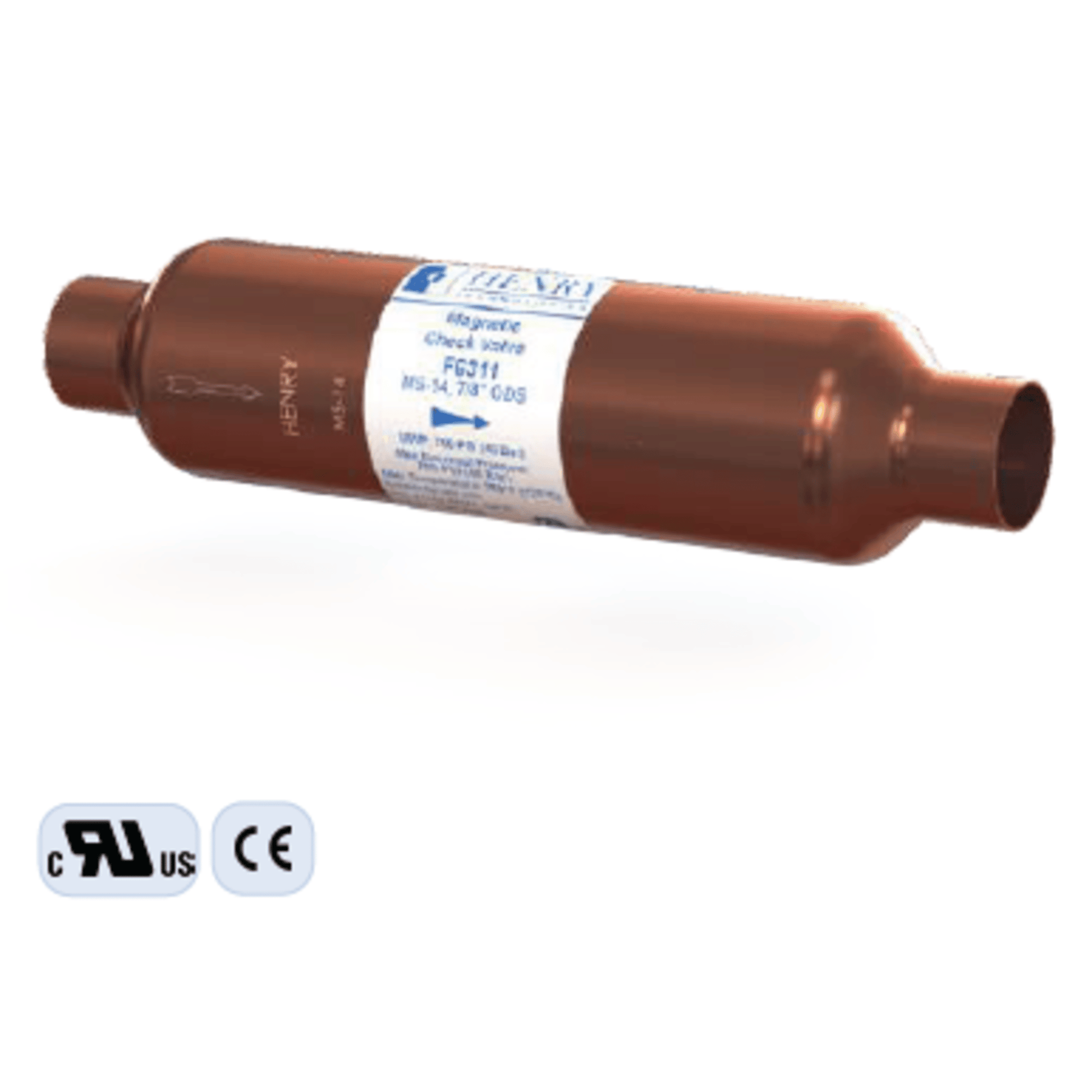

Henry F6313 MAGNI-CHEK Valve (MS22)

Description: The Henry F6313 MAGNI-CHEK Valve is a high-performance check valve designed to prevent backflow in industrial fluid systems. It utilizes magnetic attraction to return the valve plate to its seat, ensuring efficient operation with minimal pressure drop.

Key Features:

• Material: Hermetically sealed copper body with an elastomer-coated valve plate for optimized sealing.
• Connection Type: 1-3/8" O.D. (Outside Diameter) tube size.
• Design: Engineered for maximum flow and minimal pressure drop, ensuring efficient system performance.
• Pressure Rating: Safe working pressures up to 55 Bar (800 PSI), compatible with R410A refrigerant
• Temperature Range: Suitable for operating temperatures from -20°F to +250°F (-29°C to +121°C)
• Orientation: Multi-orientation installation while maintaining flow direction.
• Additional Features: Built-in 30 mesh strainer to protect the system from debris

Applications: The Henry F6313 MAGNI-CHEK Valve is suitable for use in air conditioning and refrigeration systems, as well as other industrial applications where reliable backflow prevention is critical. It is compatible with various refrigerants and industrial fluids that are non-corrosive to copper and elastomers.
