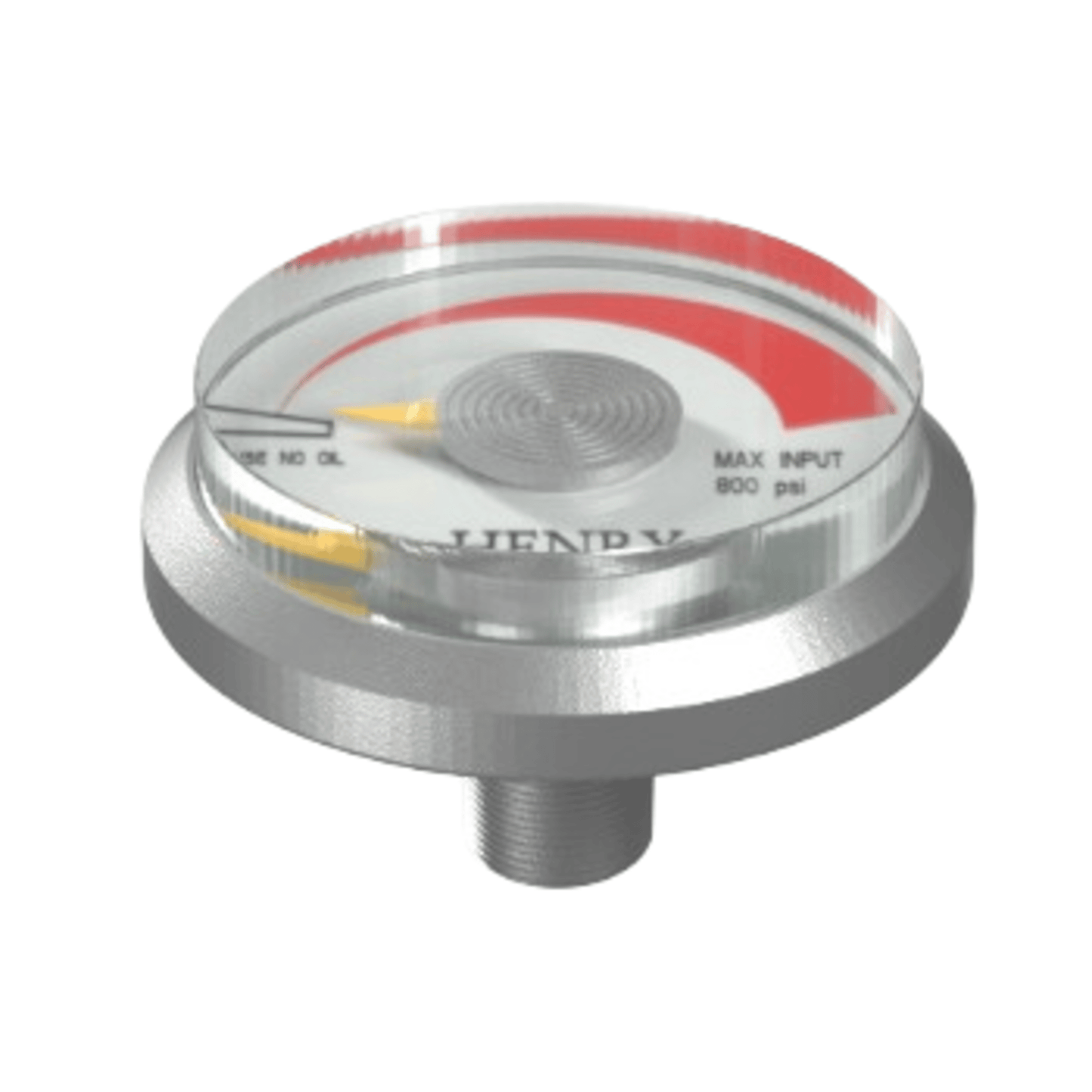

Henry G15, Indicator

The Henry G15 Indicator is a pressure gauge designed for precise monitoring in various industrial applications. Here are the key technical details:

Main Features:

• Connection Type: 1/8 inch MPT (Male Pipe Thread) for secure and easy installation.
• Construction:
  • Rugged stainless steel housing for enhanced durability in demanding environments.
  • Stainless steel movement for reliable performance.
• Dial:
  • Clear and easy-to-read large indicator dial.
  • Multiple scale options available for versatility.
• Pressure Range: Available in ranges from 0-30 psi to 0-5000 psi to accommodate various applications.

Applications:

• Suitable for use with ammonia, HCFC, and HFC refrigerants.
• Ideal for industrial machinery monitoring, hydraulic and pneumatic systems, manufacturing and processing equipment, calibration and testing, and HVAC systems.

Technical Specifications:

• Maximum Working Pressure: 800 PSI (55.2 Bar).
• Operating Temperature Range: -40°F to 150°F (-40°C to 65°C).
• Materials:
  • Case and movement made from stainless steel.
  • Dial cover made from plexiglass.

Installation Notes:

• Ensure the indicator is installed according to the specified connection type.
• Regular maintenance includes checking for accuracy and recalibration as needed.

This pressure indicator is a reliable component for maintaining the efficiency and safety of your industrial systems.
