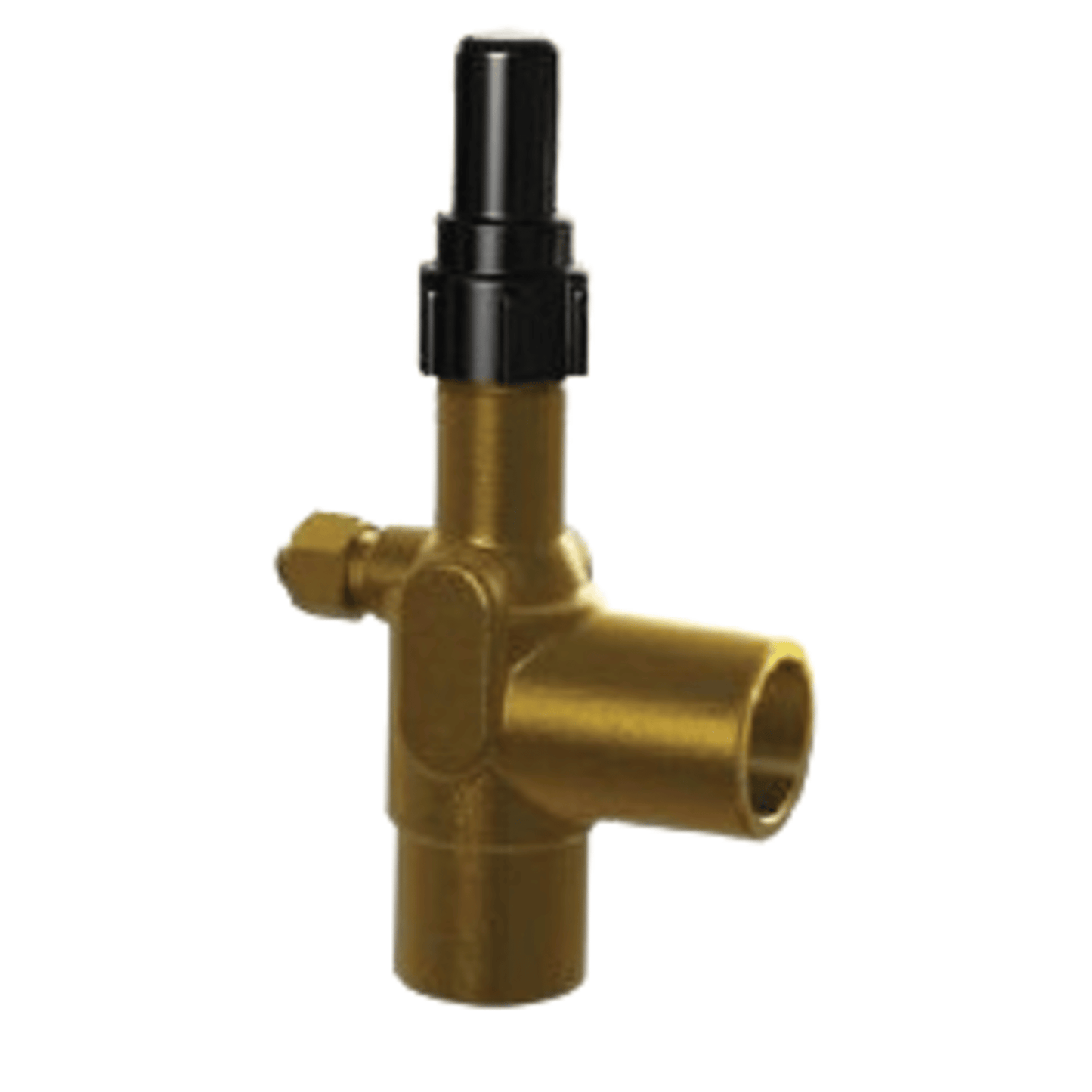

7772 - Henry - 1/4 FPT - Steel Seal Cap Angle Shut-Off Valves

The Henry 7772 is a Steel Seal Cap Angle Shut-Off Valve designed for high-pressure refrigeration and industrial applications. Here are the detailed specifications:

Henry 7772 Shut-Off Valve Specifications

• Model: 7772
• Type: Packed, Non-Backseating Angle Shut-Off Valve
• Material:
  • Body: Forged steel
  • Stem: Plated steel
  • Seal Cap: Molded plastic
  • Packing Gland: Graphite compound
• Connections:
  • Inlet: 1/4" FPT (Female Pipe Thread)
  • Outlet: 1/4" FPT
• Design:
  • Compact angle configuration
  • Metal-to-metal seat seal
  • Packless design for reduced leakage
• Operating Conditions:
  • Max Working Pressure: 1000 PSI (68.9 bar)
  • Temperature Range: -20°F to +300°F (-29°C to +149°C)
• Applications:
  • Suitable for ammonia, HCFC, and HFC refrigerants and their associated oils
  • Used for isolation, charging, purging, and flow control in refrigeration and A/C systems
