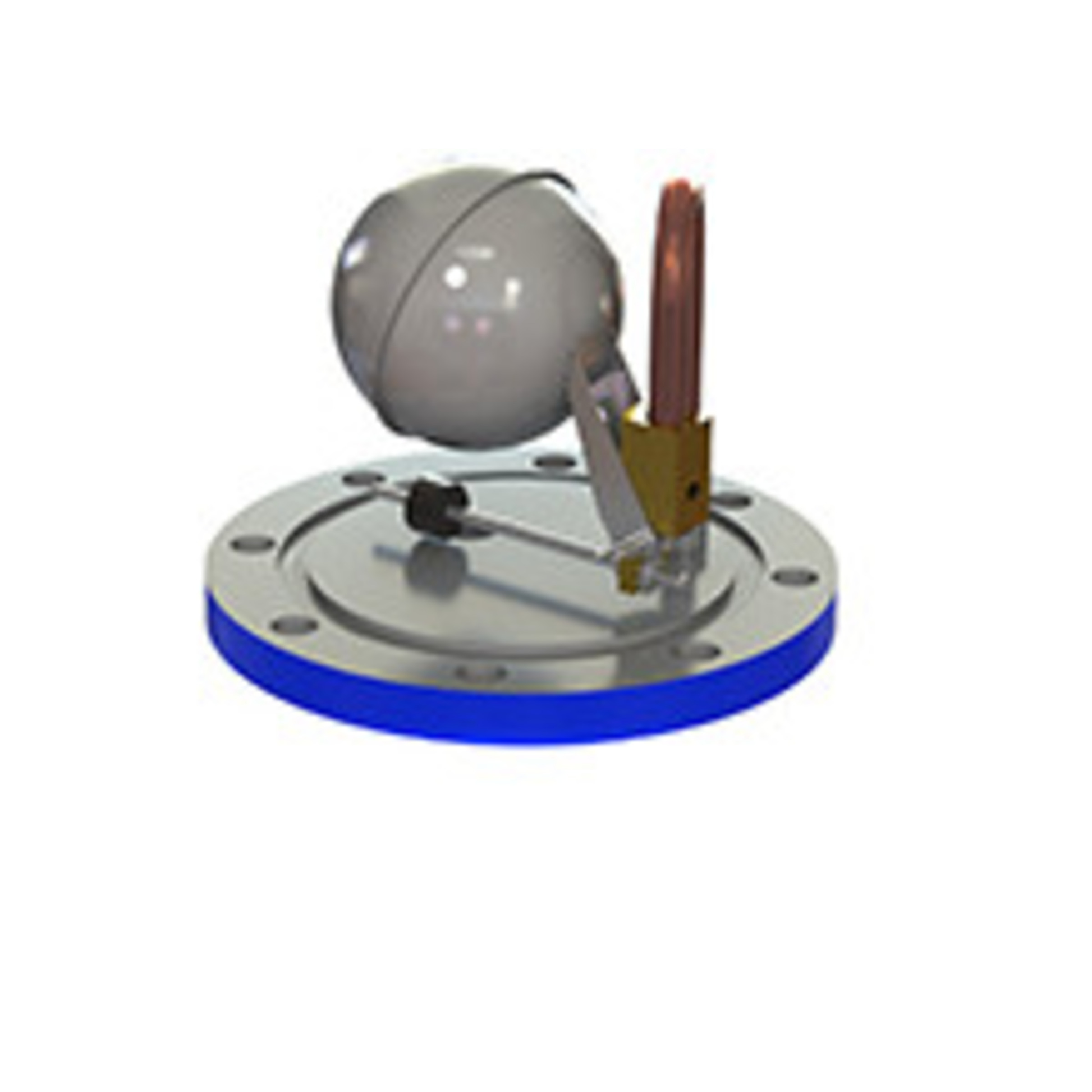

Henry A-1900-30, Separator Float ASSY

The Henry A-1900-30 Separator Float Assembly is a crucial component designed to efficiently manage oil separation in refrigeration and HVAC systems. Here are the key technical details:

Main Features:

• Compatibility: Designed for use with Henry S5200 and S1900 series oil separators.
• Construction:
  • Made from durable materials including stainless steel and brass to ensure longevity and reliable performance.
  • Includes a protective magnet to shield the oil path from debris, enhancing the efficiency and lifespan of the separator.
• Oil Flow Efficiency:
  • Up to 20% increased oil flow compared to older models, with decreased pressure drop across the float mechanism.
• Weight: Approximately 3.2 lbs, making it easy to handle and install.

Applications:

• Suitable for various refrigeration and HVAC systems requiring efficient oil separation and return.
• Ideal for systems using HCFC and HFC refrigerants and their associated oils.

Functionality:

• Oil Separation Process:
  • The float assembly assists in effectively metering separated oil back to the compressors.
  • Ensures minimal oil circulation within the system, maintaining optimal performance and reducing wear on components.

Installation Notes:

• Ensure the float assembly is installed according to the manufacturer's guidelines.
• Regular maintenance includes checking for debris and ensuring the float mechanism operates smoothly.

This float assembly is a reliable choice for maintaining the efficiency and longevity of your oil separation system.
