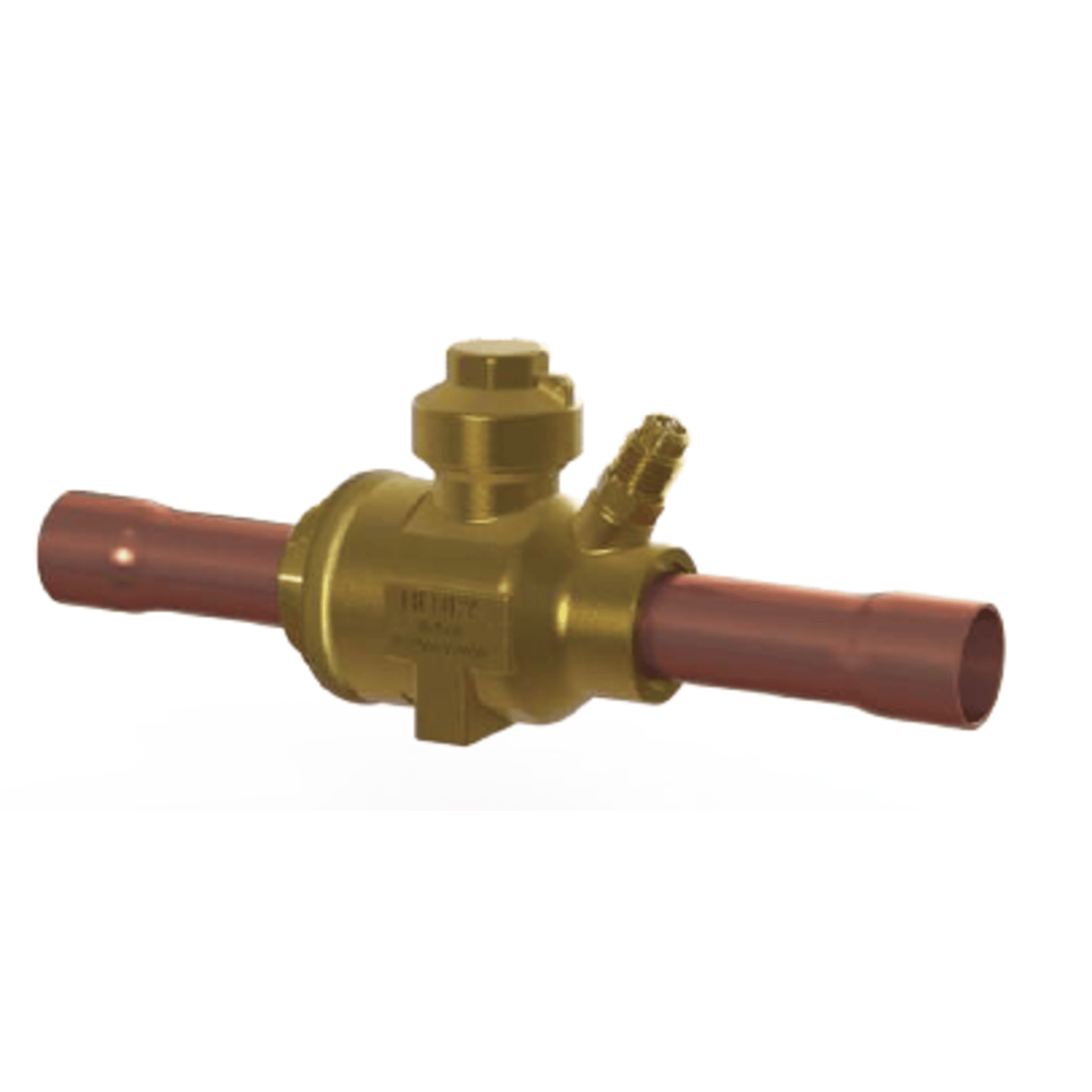

Henry - Ball Valve, Seal Cap w/ Charge Port, Flare Access Fitting, 7/8" ODS, 22.225mm - 937307

The Henry 937307 Ball Valve is designed for efficient isolation and control of fluid flow in refrigeration and air conditioning systems.

Main Features

• Connection Sizes:
  • Inlet/Outlet: 7/8 inch ODS (Outside Diameter Solder)
  • Charge Port: Flare access fitting.
• Construction:
  • Valve Body: Made from durable brass.
  • Stem: Plated steel for enhanced durability.
  • Pipe Extensions: Copper for reliable connections.
  • Seals: Virgin PTFE ball seals and neoprene O-rings for the stem and cap.
• Flow Control:
  • Bi-directional flow capability.
  • Quarter-turn operation for quick and easy opening or closing.
  • Positive stem stop ensures precise positioning in the open or closed state.

Applications

• Suitable for use with HCFC and HFC refrigerants and their associated oils.
• Can be used in both liquid and gas applications within refrigeration and HVAC systems.

Operating Specifications

• Maximum Working Pressure: 700 PSI (48.3 Bar).
• Operating Temperature Range: -40°F to 250°F (-40°C to 121°C).

Functionality

• Isolation: Provides reliable isolation of system components during maintenance or repair.
• Charge Port: Includes a Schrader valve for easy system charging and pressure checks.

Installation Notes

• Protect the valve body from excessive heat during installation to prevent damage to the seals.
• Follow the flow direction indicated on the valve body for proper operation.

This ball valve is a robust and reliable choice for maintaining the efficiency and safety of your refrigeration or HVAC system.
