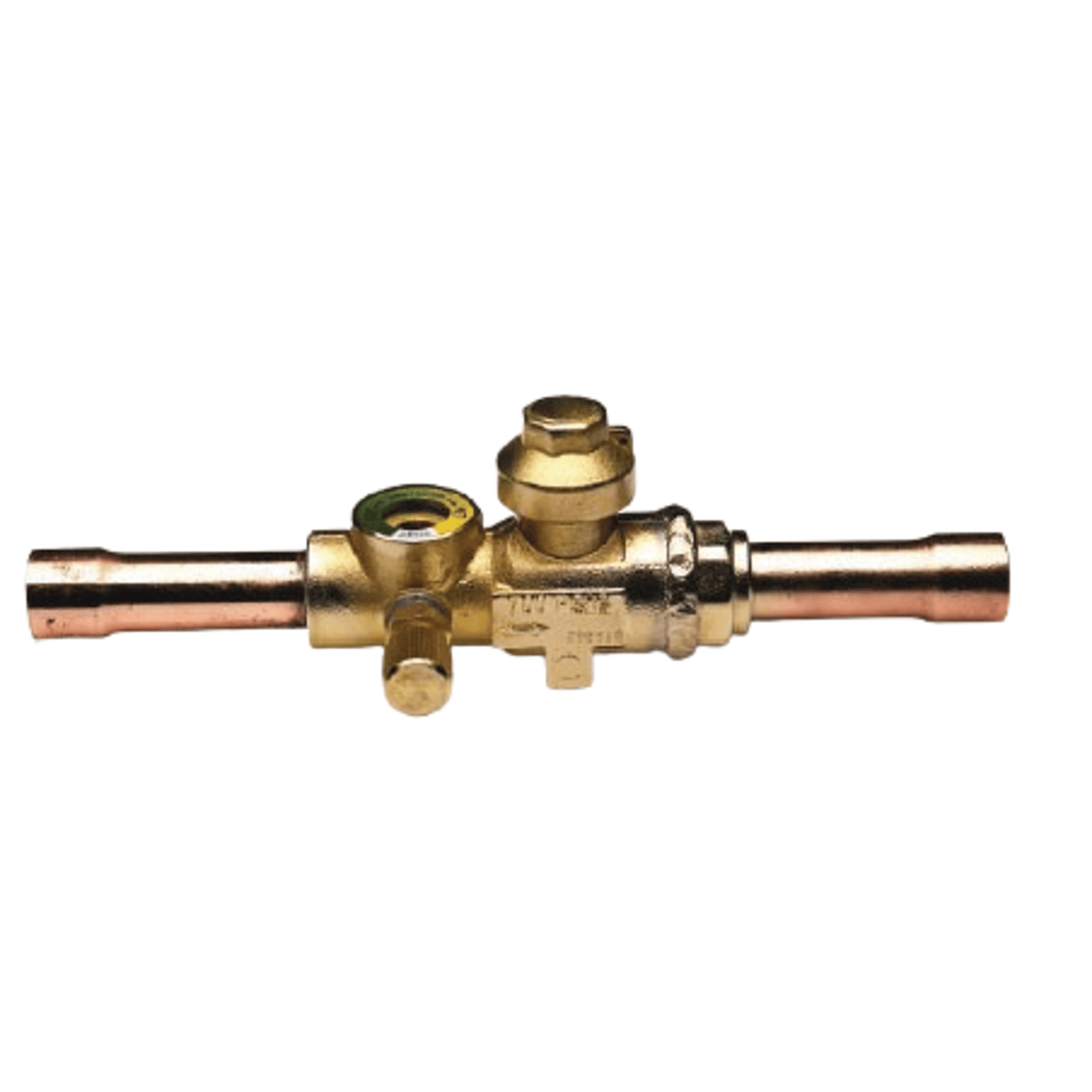

Henry Ball Valve, Seal Cap with Sight Glass & Charging Port, 1/4" ODS, 6.35mm - 937202SG

Henry 937202SG Ball Valve, Seal Cap with Sight Glass & Charging Port, 1/4" ODS, 6.35mm.

Used in a variety of air conditioning and refrigeration applications, for both liquid and gas. Commonly used for isolating purposes.

Features

• Bi-directional flow
• Indicator on stem shows valve position – open or closed
• Positive stem stops ensures precise positioning in the open or closed positio
• Blow-out proof stem
• Ball cavity vented to prevent over-pressure
• Vented seal cap
• Schrader valve option
• Mounting pad
• Large clear sight glass
• Positive colour contrast indicator
• Plastic protection cap for sight glass supplied as standard
• UL listed (standard range up to including 907409/937409 models only, excluding “M” and “SG” versions)
• Premium quality PTFE ball seals
• Double O-ring system seal design
• Premium quality neoprene stem O-ring seals
• Seal cap retainer – prevents loss of cap
• PTFE cap seal – acts as a secondary seal
• Hermetically sealed sight glass

Product Details

• Part Number: 937202SG
• Brand: Henry Technologies
• Series: Ball Valve with Sight Glass (BVSG)
• Category: Flow Controls › Isolating Valves
• Suitable For: A2L Refrigerants, Conventional Refrigerants
• Max Working Pressure: 48 Barg (696 PSIg) / 60 Barg (870 PSIg)
• Operating Temperature Range: -40°C to +120°C (-40°C to +248°F)
• Refrigerant Compatibility: CO2, HCFC and HFC where materially compatible
• Sizes Available: 1/4" to 1 5/8"
• Product Certification: CE and UKCA
