Henry 937202, Ball Valve, Seal Cap w/ Charge Port, Flare Access Fitting, 1/4 ODS
Henry 937202, Ball Valve, Seal Cap w/ Charge Port, Flare Access Fitting, 1/4 ODS
Regular price
$54.59 CAD
Regular price
$54.59 CAD
Sale price
$54.59 CAD
Unit price
per

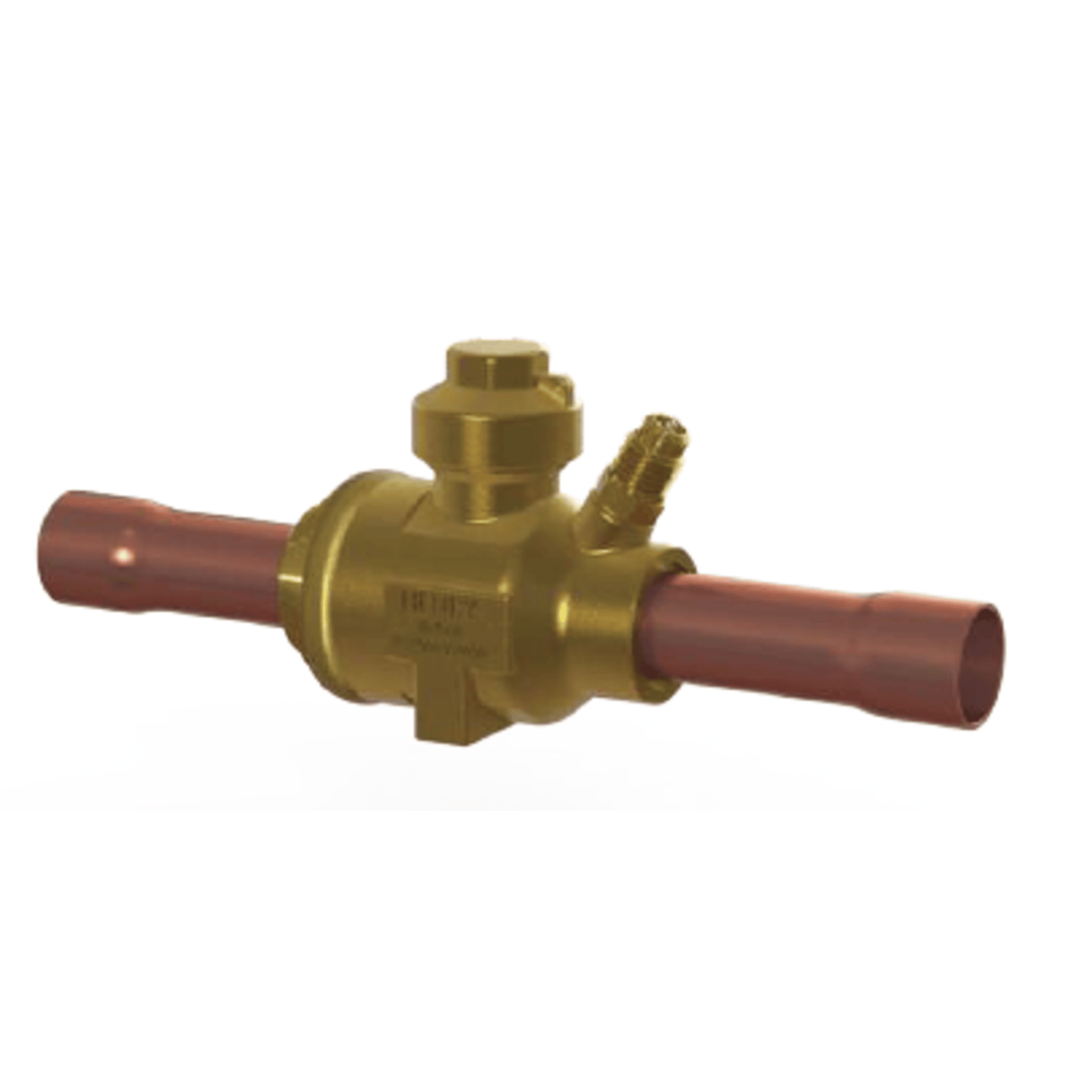

The Henry 937202 Ball Valve is designed for efficient isolation and control of fluid flow in refrigeration and air conditioning systems. Here are the key technical details:
Main Features:
-
Connection Sizes:
- Inlet/Outlet: 1/4 inch ODS (Outside Diameter Solder)
- Charge Port: Flare access fitting.
-
Construction:
- Valve Body: Made from durable brass.
- Stem: Plated steel for enhanced durability.
- Pipe Extensions: Copper for reliable connections.
- Seals: Virgin PTFE ball seals and neoprene O-rings for the stem and cap.
-
Flow Control:
- Bi-directional flow capability.
- Quarter-turn operation for quick and easy opening or closing.
- Positive stem stop ensures precise positioning in the open or closed state.
Applications:
- Suitable for use with HCFC and HFC refrigerants and their associated oils.
- Can be used in both liquid and gas applications within refrigeration and HVAC systems.
Operating Specifications:
- Maximum Working Pressure: 700 PSI (48.3 Bar).
- Operating Temperature Range: -40°F to 250°F (-40°C to 121°C).
Functionality:
- Isolation: Provides reliable isolation of system components during maintenance or repair.
- Charge Port: Includes a Schrader valve for easy system charging and pressure checks.
Installation Notes:
- Protect the valve body from excessive heat during installation to prevent damage to the seals.
- Follow the flow direction indicated on the valve body for proper operation.
This ball valve is a robust and reliable choice for maintaining the efficiency and safety of your refrigeration or HVAC system.
