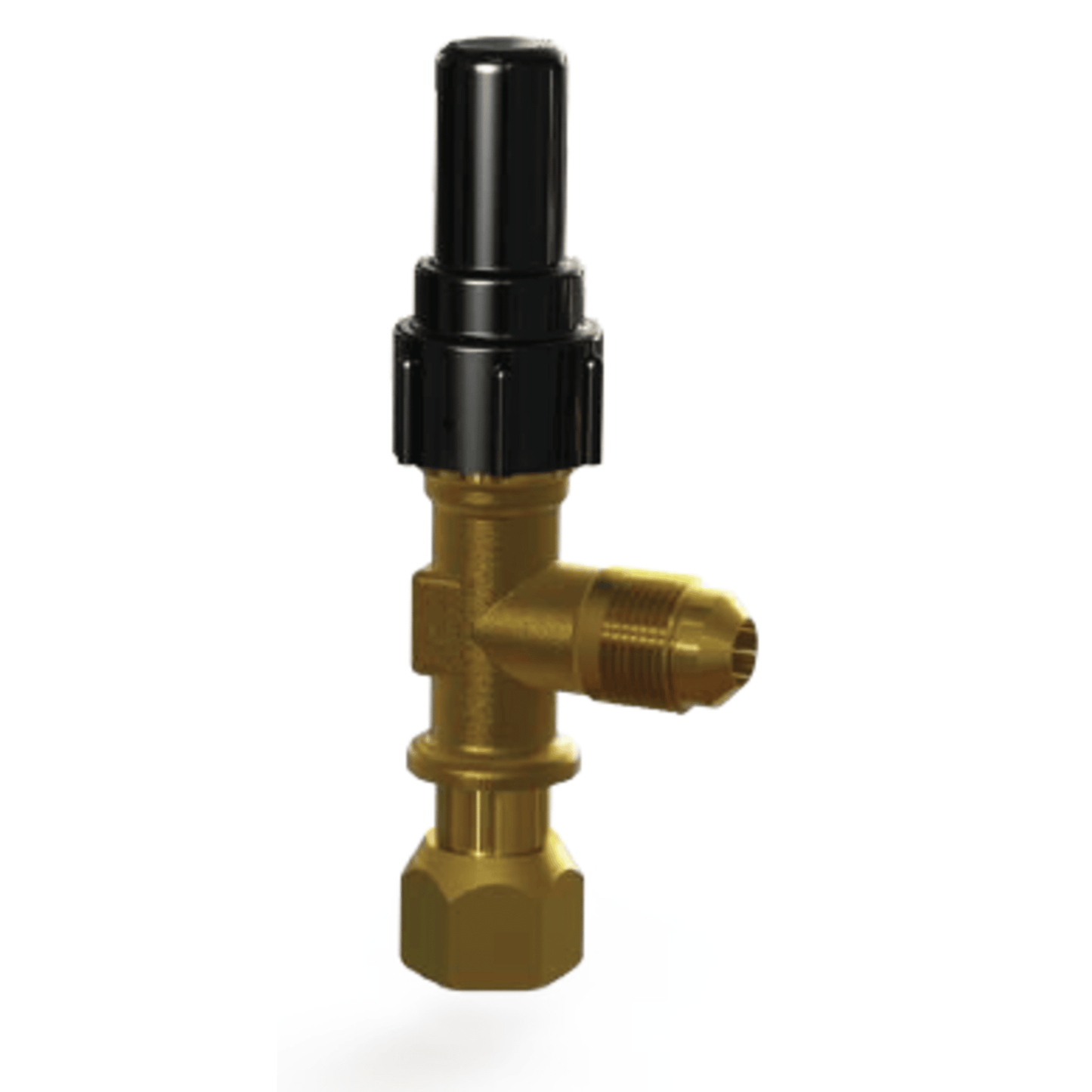

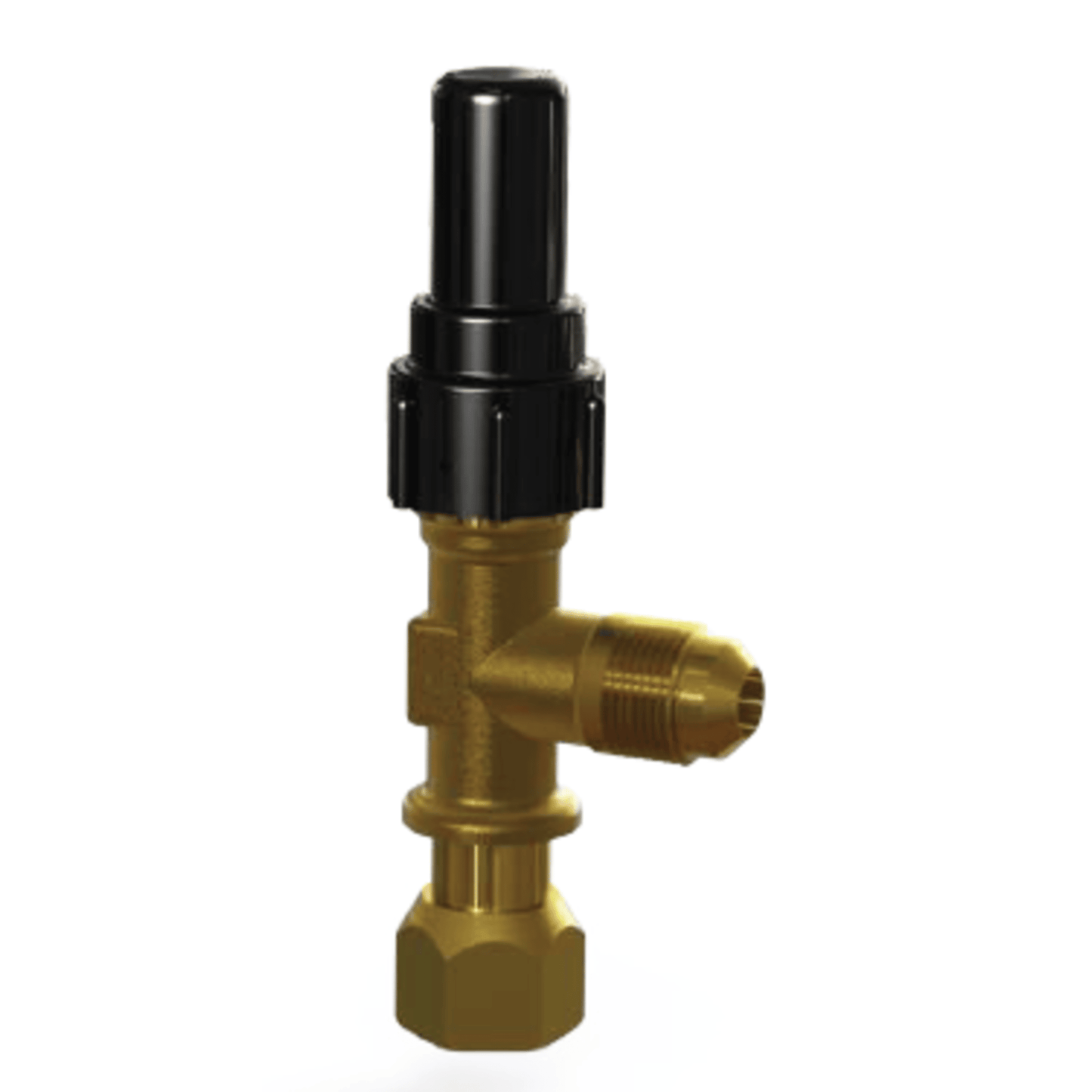

Henry 9240, Packless, Brass Seal Cap Angle Swivel Nut Valves, 1/4 F.FL./1/4M.FL

The Henry 9240 Packless Brass Seal Cap Angle Swivel Nut Valve is a high-quality component designed for use in air conditioning and refrigeration systems. Here are its key technical specifications and features:

• Material: The valve body is made from brass, providing excellent durability and resistance to corrosion. The stem is constructed from plated steel, and the seal cap is made from molded plastic
• Connections: It features a 1/4" Female Flare (F.FL.) connection on one side and a 1/4" Male Flare (M.FL.) connection on the other
• Design: This is an angle valve with a swivel nut, which allows for easy installation and changes the direction of flow by 90 degrees. It is packless, meaning it uses a packed gland to seal the stem, reducing the risk of leaks
• Operating Pressure: The valve can handle a maximum operating pressure of 34.5 bar (500 PSI)
• Operating Temperature: Suitable for temperatures ranging from -29°C to +135°C (-20°F to +275°F)
• Applications: Ideal for isolating, flow control, charging, and purging in systems using HCFC and HFC refrigerants, as well as ammonia
• Certifications: The valve is UL and C-UL listed, ensuring it meets safety and performance standards

This valve is known for its reliability and ease of maintenance, making it a preferred choice in both commercial and industrial settings.
