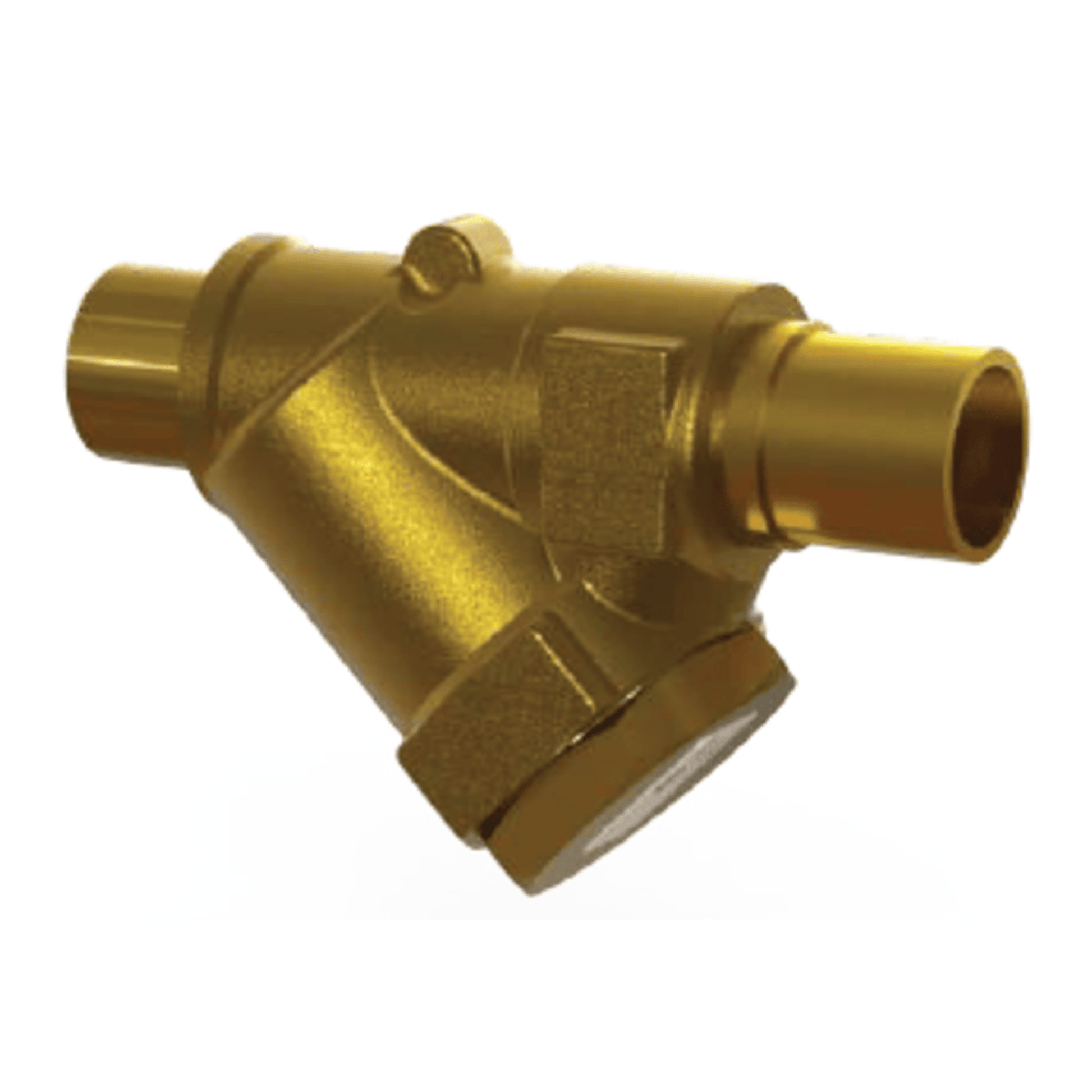

Henry 896A-5/8S, Strainer "Y" Type Forged Brass Body w/Replaceable srceen Cart., 5/8 ODS

The Henry 896A-5/8S Strainer is a specialized component designed for use in refrigeration and air conditioning systems. Here is a detailed technical description:

Technical Description

Model: Henry 896A-5/8S

Type: Strainer

Design: "Y" Type, Forged Brass Body with Replaceable Screen Cartridge

Connections:

• Inlet/Outlet: 5/8" ODS (Outside Diameter Solder)

Material:

• Body: Forged brass
• Screen Cartridge: Stainless steel (100 mesh)
• Plug: Brass with synthetic rubber seal

Features:

• Compact "Y" Design: Ensures efficient debris removal while maintaining a compact form factor.
• Replaceable Screen Cartridge: Allows for easy maintenance and extended service life.
• High Pressure Rating: Maximum working pressure of 500 PSI (34.4 Bar).
• Temperature Range: Operates effectively between -20°F to +200°F (-29°C to +93°C).
• Applications: Suitable for use in refrigerant and oil lines to remove large debris, protecting compressors and other system components.

Certifications:

• UL and C-UL Listed: Ensures compliance with safety standards.
• CRN Registered: Approved for use in Canada.

Installation Notes:

• Heat Protection: Strainers must be protected from heat damage during installation.
• Maintenance: Regular inspection and replacement of the screen cartridge are recommended to ensure optimal performance.

This strainer is ideal for protecting refrigeration and air conditioning systems by removing debris from refrigerant or oil lines
