Henry Technologies

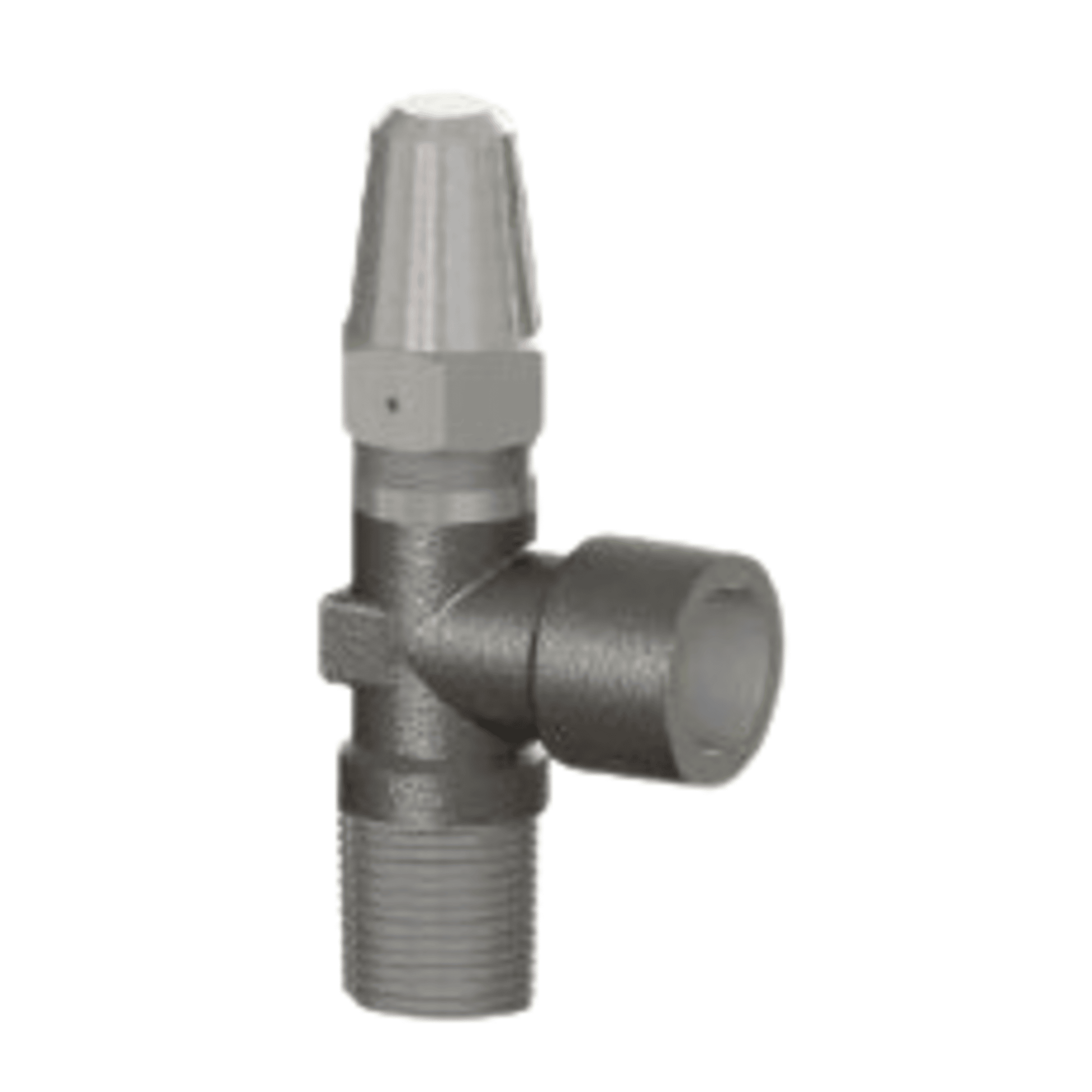

Henry 7771E, Packless, Brass Seal Cap Angle Shut-Off Valve, 1/4 MPT X 1/4 FPT

Henry 7771E, Packless, Brass Seal Cap Angle Shut-Off Valve, 1/4 MPT X 1/4 FPT

SKU: HEN-7771E

Regular price $134.56 CAD
Regular price Sale price $134.56 CAD
Sale Sold out
Shipping calculated at checkout.
 More payment options

The Henry 7771E Packless Brass Seal Cap Angle Shut-Off Valve is a high-quality component designed for use in air conditioning and refrigeration systems. Here are its key technical specifications and features:

  • Material: The valve body is made from brass, providing excellent durability and resistance to corrosion. The stem is constructed from plated steel, and the seal cap is made from molded plastic
  • Connections: It features a 1/4" Male Pipe Thread (MPT) connection at the bottom and a 1/4" Female Pipe Thread (FPT) connection on the side
  • Design: This is an angle shut-off valve, which changes the direction of flow by 90 degrees. It is packless, meaning it uses a packed gland to seal the stem, reducing the risk of leaks
  • Operating Pressure: The valve can handle a maximum operating pressure of 34.5 bar (500 PSI)
  • Operating Temperature: Suitable for temperatures ranging from -29°C to +135°C (-20°F to +275°F)
  • Applications: Ideal for isolating, flow control, charging, and purging in systems using HCFC and HFC refrigerants, as well as ammonia
  • Certifications: The valve is UL and C-UL listed, ensuring it meets safety and performance standards

This valve is known for its reliability and ease of maintenance, making it a preferred choice in both commercial and industrial settings.
