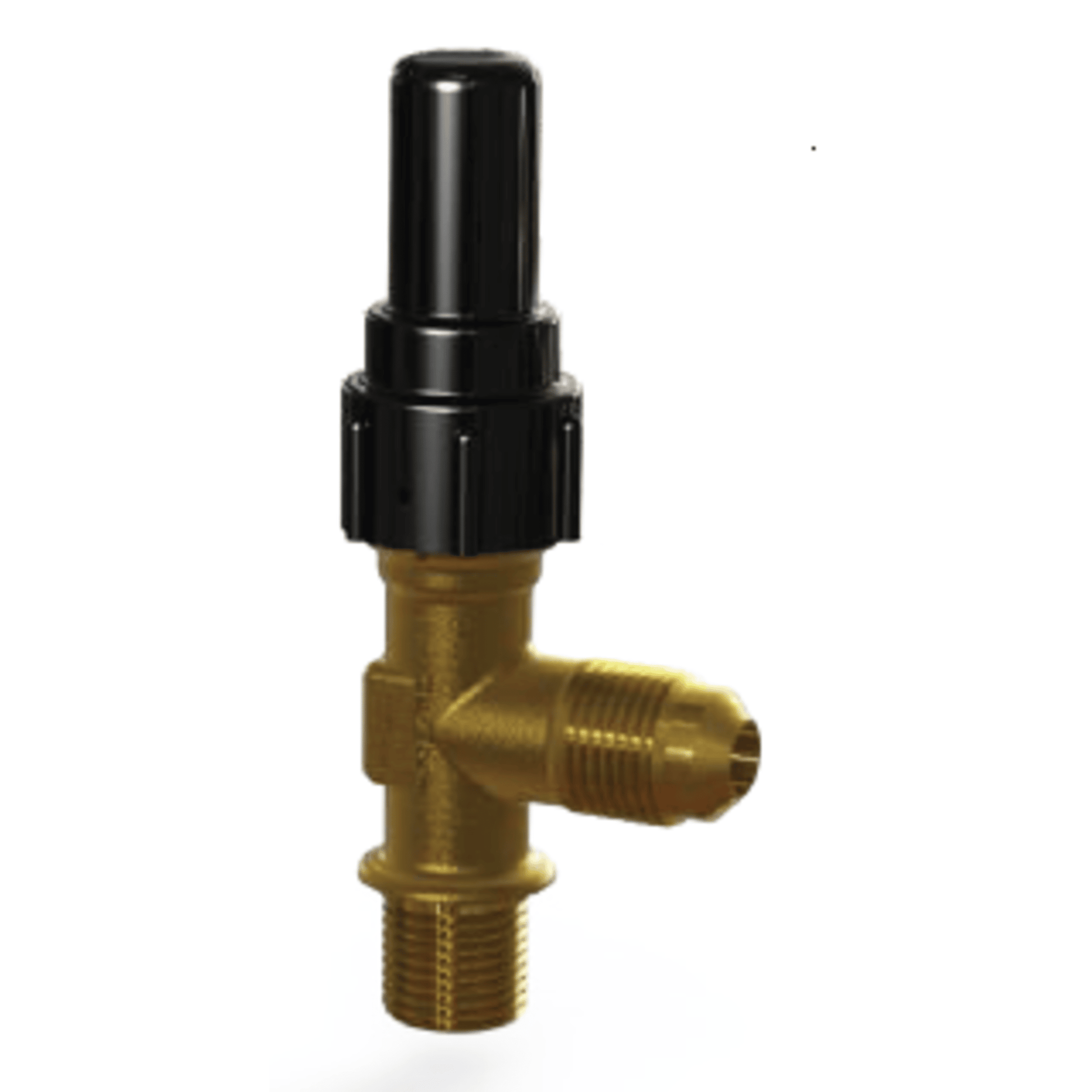

Henry 7763-B, Packless, Brass Seal Cap Angle Shut-Off Valve, 1/4 MPT x 3/8 FL

The Henry 7763-B Packless Brass Seal Cap Angle Shut-Off Valve is a high-quality component designed for use in air conditioning and refrigeration systems. Here are its key technical specifications and features:

• Material: The valve body is made from brass, providing excellent durability and resistance to corrosion. The stem is constructed from plated steel, and the seal cap is made from molded plastic.
• Connections: It features a 1/4" Male Pipe Thread (MPT) connection at the bottom and a 3/8" SAE Flare (FL) connection on the side.
• Design: This is an angle shut-off valve, which changes the direction of flow by 90 degrees. It is packless, meaning it uses a packed gland to seal the stem, reducing the risk of leaks.
• Operating Pressure: The valve can handle a maximum operating pressure of 34.5 bar (500 PSI).
• Operating Temperature: Suitable for temperatures ranging from -29°C to +135°C (-20°F to +275°F).
• Applications: Ideal for isolating, flow control, charging, and purging in systems using HCFC and HFC refrigerants, as well as ammonia.
• Certifications: The valve is UL and C-UL listed, ensuring it meets safety and performance standards.

This valve is known for its reliability and ease of maintenance, making it a preferred choice in both commercial and industrial settings.
