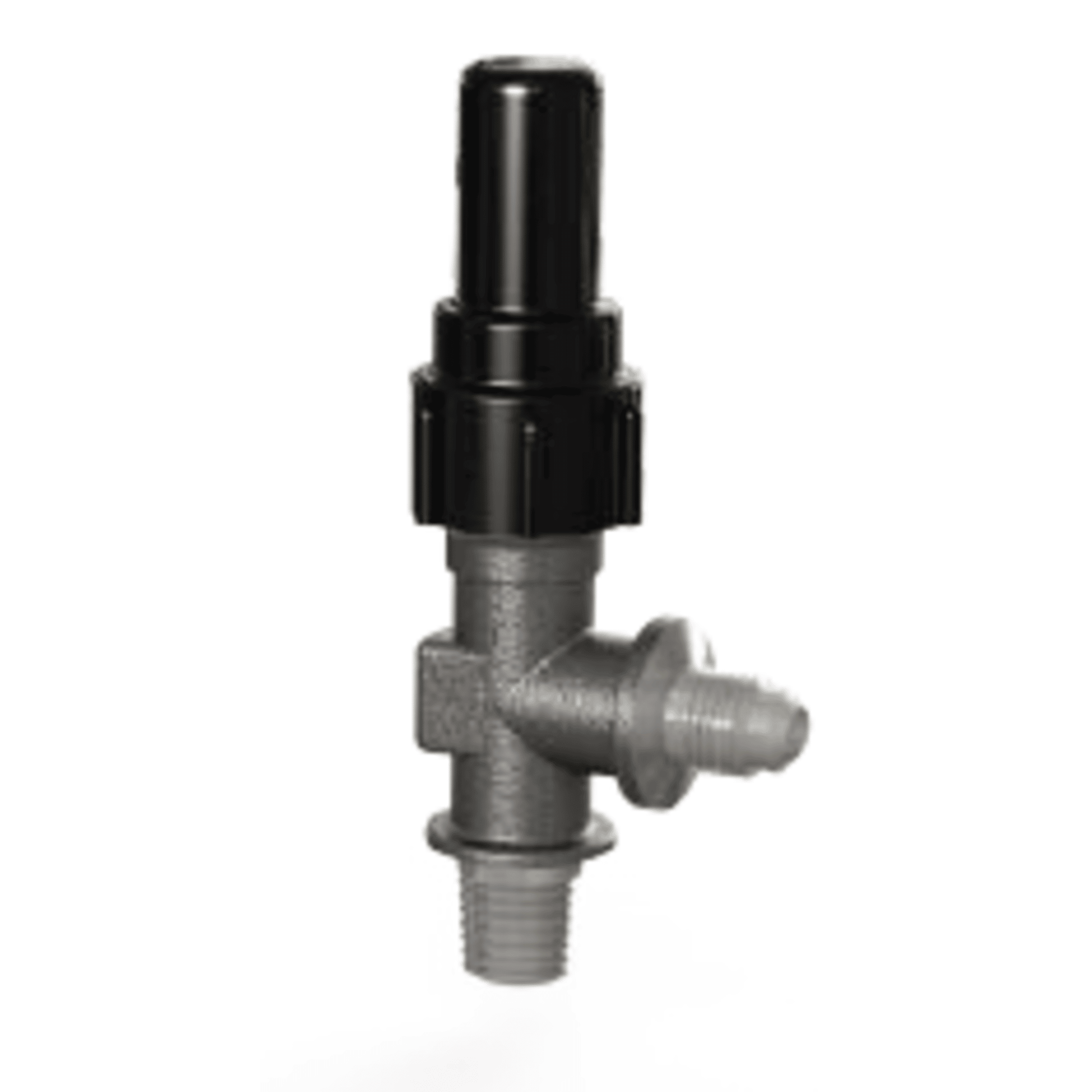

7761 - Henry - 1/4 MPT X 1/4 Flare - Steel Seal Cap Angle Shut-Off Valves

Here are the specifications and features for the Henry 7771 Steel Seal Cap Angle Shut-Off Valve:

🔧 Technical Specifications

• Model: 7771
• Connection Size: 1/4" MPT (Male Pipe Thread) x 1/4" FPT (Female Pipe Thread)
• Valve Type: Angle shut-off, non-backseating
• Seal Cap: Molded plastic
• Body Material: Forged steel
• Stem Material: Plated steel
• Seat Seal: Metal-to-metal
• Packing Gland: Graphite compound

📈 Performance Ratings

• Maximum Working Pressure: 1000 psi (68.9 bar)
• Operating Temperature Range: -20°F to +300°F (-29°C to +149°C)

📦 Dimensions & Weight

• Length: 3.85 in
• Width: 1.25 in
• Height: 1.20 in
• Overall Height: 3.44 in
• Shipping Weight: ~0.33 lbs

🧰 Applications

• Designed for air conditioning and refrigeration systems
• Suitable for ammonia, HCFC, HFC refrigerants, and non-corrosive industrial fluids
• Commonly used for purging, charging, flow control, and isolation in high-pressure environments
