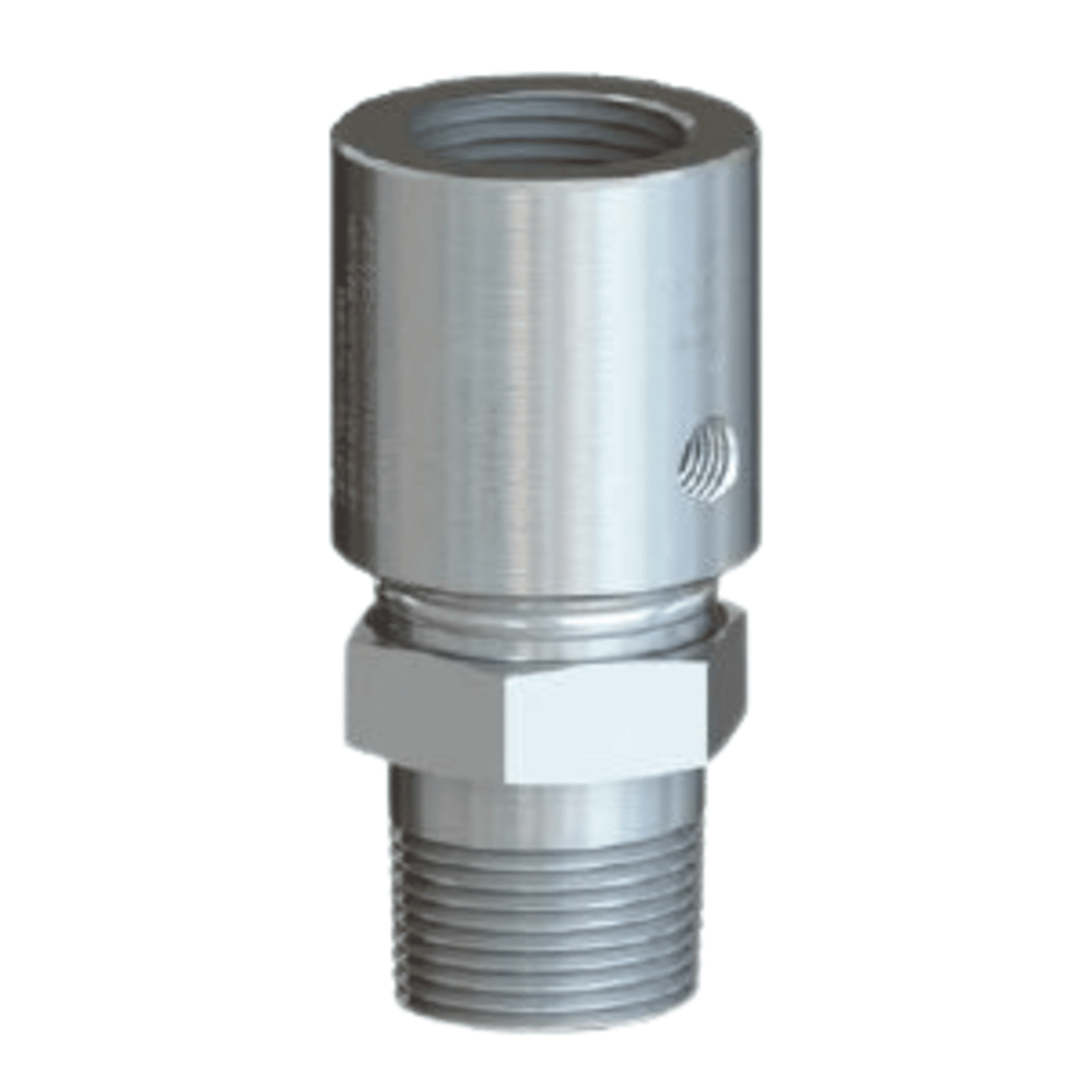

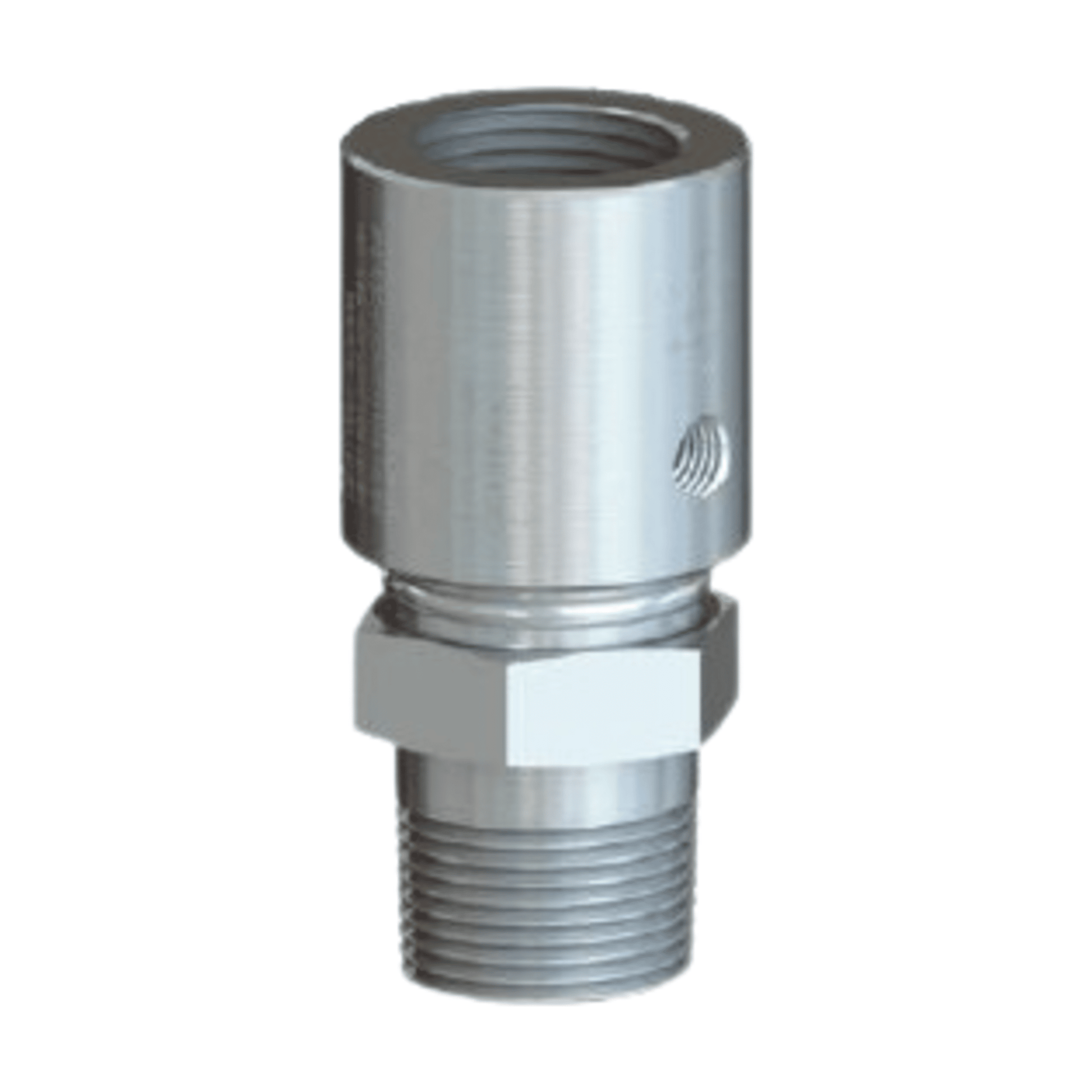

Henry Rupture Disc Assembly, Steel, 1/2" MPT × 1/2" FPT - 350

The Henry 5626-350-CE is a rupture disc assembly designed for safety and reliability in pressure systems. Here are the detailed technical specifications:

• Type: Rupture Disc Assembly
• Model: 5626-350-CE
• Manufacturer: Henry Technologies
• Connection Type: Male Pipe Thread (MPT) x Female Pipe Thread (FPT)
• Size: 1/2 inch
• Material: Steel
• Maximum Allowable Working Pressure (MAWP): 350 psi (24.1 bar)
• Operating Temperature Range: -40°F to +300°F (-40°C to +149°C)
• Overall Length: 3.19 inches
• Applications: Designed to function as a safety device in pressure systems, it operates by rupturing when the pressure exceeds a predetermined level, thereby relieving excess pressure and preventing potential damage to equipment or harm to personnel.
