Henry - Rupture Disc Assembly, Steel, 1/2" MPT x 1/2" FPT - 300 - 5626-300-CE
Original price
$1,052.87
-
Original price
$1,052.87
Original price
$1,052.87
$1,052.87
-
$1,052.87
Current price
$1,052.87
SKU HEN-5626-300-CE
Availability:
We will Check on Delivery Time and Advise

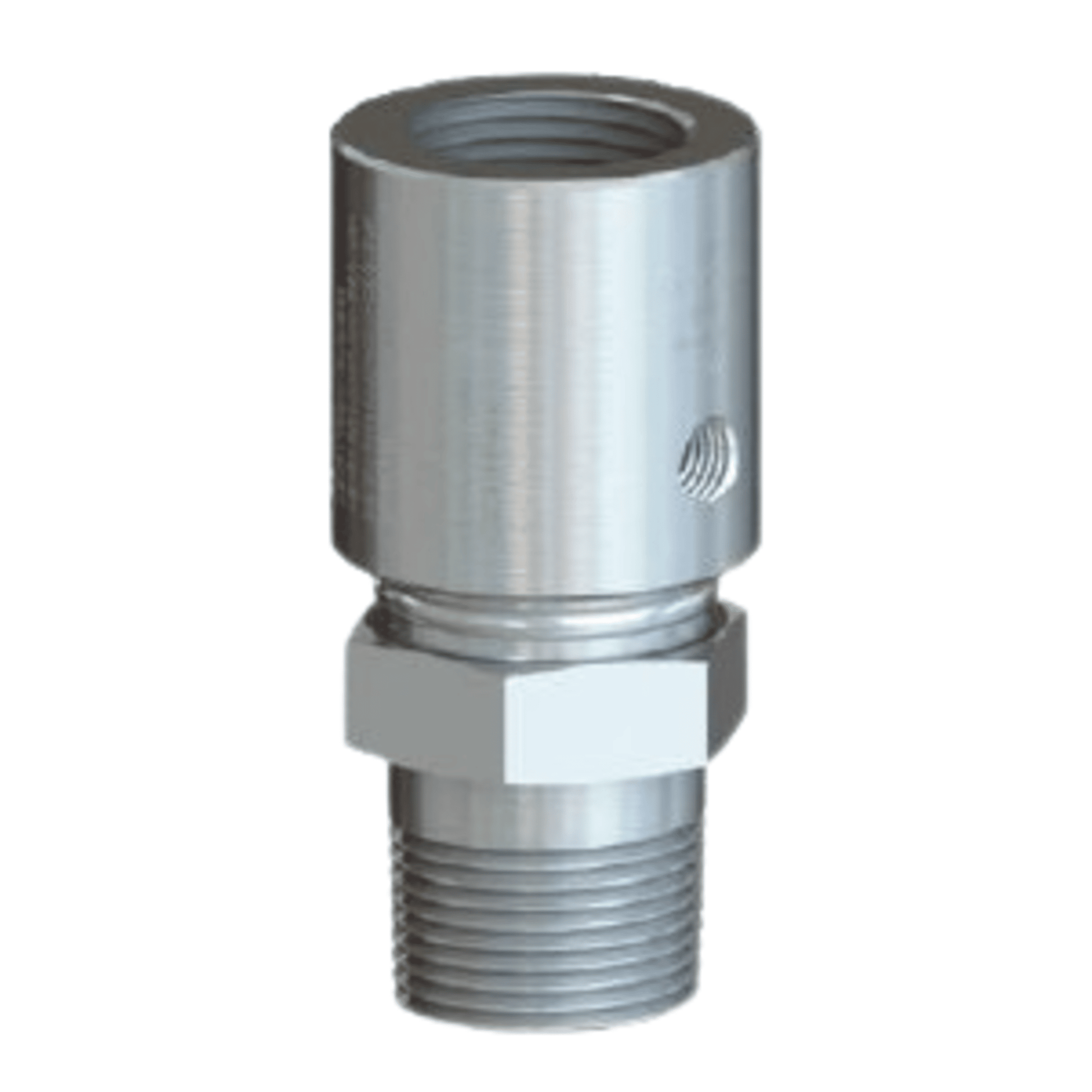

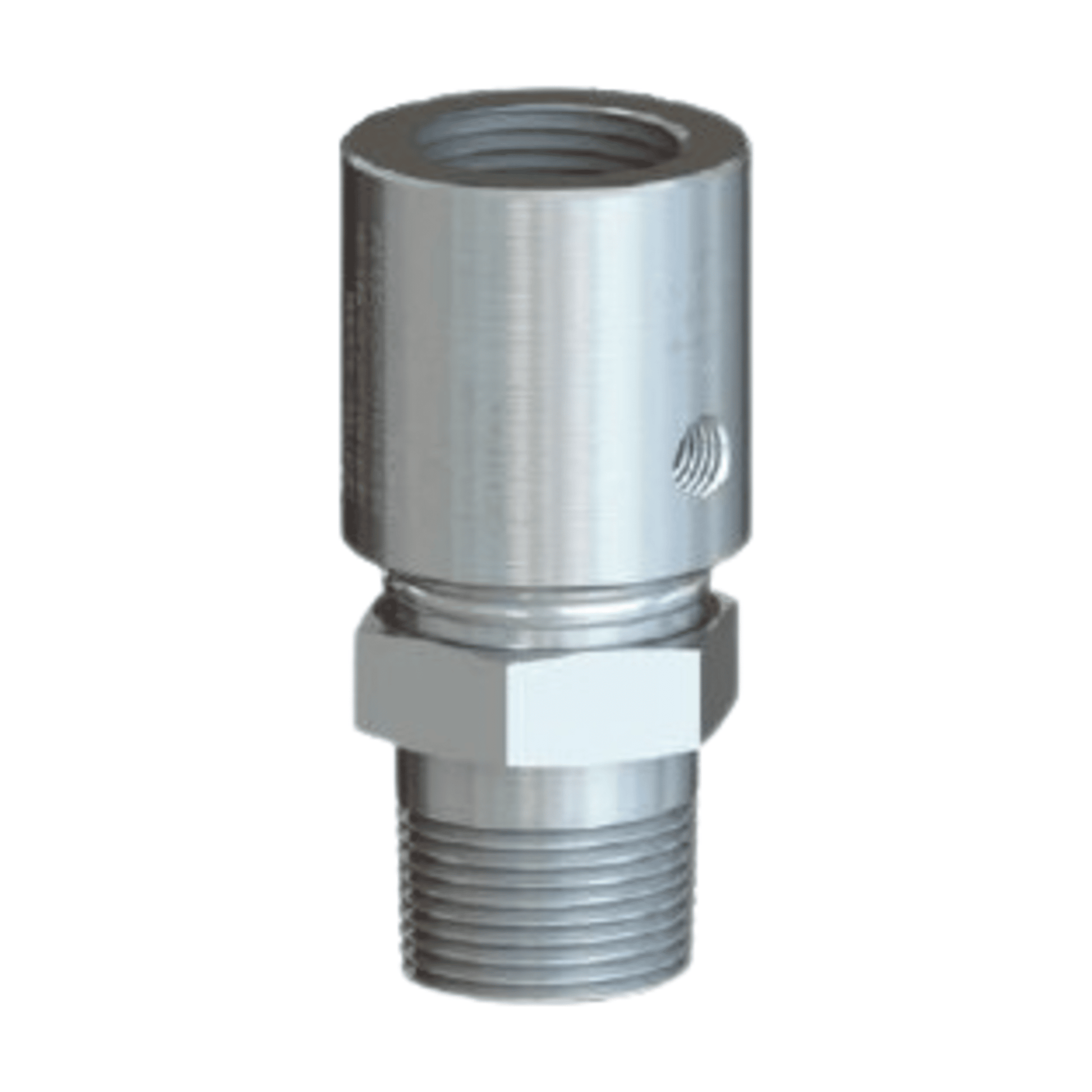

Henry 5626-300-CE Rupture Disc Assembly, Steel, 1/2" MPT x 1/2" FPT - 300.
Protect against over pressure and protect against any leakage or weeping of refrigerant through a relief valve.
Features
- Proven safe design
- High flow capacity
- Compact
- Reverse acting, non-fragmenting disc
- 2 x 1/8″ NPT pressure ports
- Helium leak tested
- Pressure settings up to 130 Barg available on request
Product Details
- Part Number: 5626-300-CE
- Brand: Henry Technologies
- Series: Stainless Steel Rupture Disc
- Category: Safety Devices › Rupture Discs
- Suitable For: A2L Refrigerants, Ammonia, Conventional Refrigerants, Transcritical CO2
- Max Working Pressure: 130 Barg (1885 PSIg)
- Operating Temperature Range: -40°C to +427°C (-40°C to +800.6°F)
- Refrigerant Compatibility: A2L, Ammonia, CO2, HC, HCFC, HFC and HFO where materially compatible
- Sizes Available: 3/8" to 1 1/4"
- Product Certification: ASME-UD, CE, EN ISO 4126-2 and UKCA
