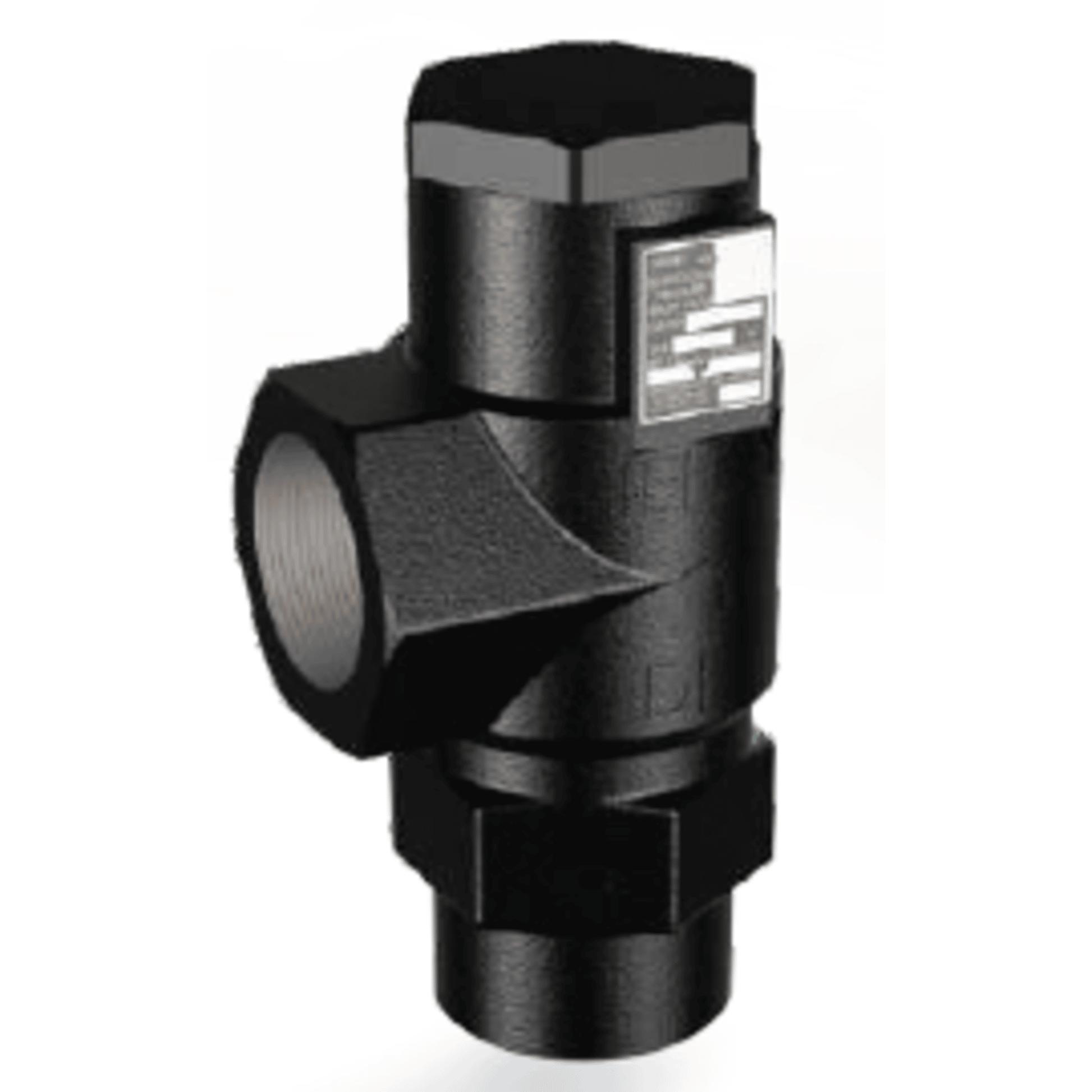

Henry - Relief Valve, Cast Iron Angle, 1" FPT inlet x 1-1/4" FPT outlet, 150PSIG - 5603-150

Henry 5603-150 Relief Valve, Cast Iron Angle, 1" FPT inlet x 1-1/4" FPT outlet, 150PSIG.

Protect system components such as receivers, heat exchangers and vessels from dangerous overpressure.

Features

• Set pressure tolerance = +/-3%
• Maximum overpressure = 10%
• Proven safe design
• Precision machined parts for maximum reliability
• Compact design
• Blow-Out proof seal design
• Tamper proof
• Supplied with an installation date sticker
• Dedicated hole for attachment of additional third party tags
• Available marked in either metric (Barg and kg Air/min) or imperial (PSlg and lbs Air/min) units

Product Details

• Part Number: 5603-150
• Brand: Henry Technologies
• Series: PRV: Ammonia Range
• Category: Safety Devices › Pressure Relief Valves
• Suitable For: A2L Refrigerants, Ammonia, Conventional Refrigerants
• Max Working Pressure: Exclusive of 5604: 31 Barg (450 PSIg) 5604: 24.1 Barg (350 PSlg)
• Operating Temperature Range: -29°C to +107°C (-20.2°F to +224.6°F)
• Refrigerant Compatibility: A2L, Ammonia, CO2, HCFC, HFC, HFO and R290 where materially compatible
• Sizes Available: 1/4" to 1/2"
• Product Certification: ASME-UV, CE and UKCA
