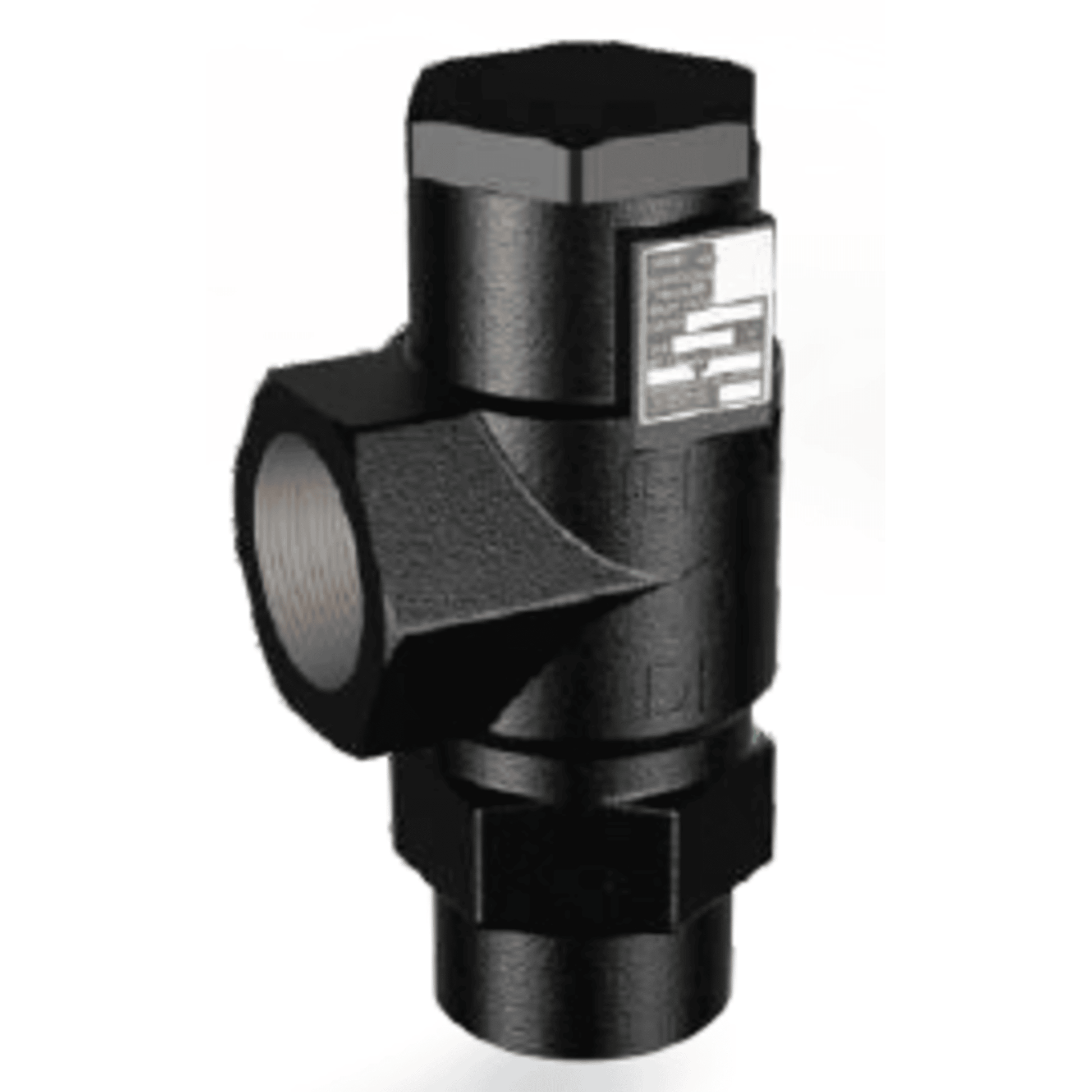

Henry - Relief Valve, Cast Iron Angle, 3/4" FPT inlet x 1" FPT outlet, 400PSIG - 5602-400
Original price
$597.58
-
Original price
$597.58
Original price
$597.58
$597.58
-
$597.58
Current price
$597.58
SKU HEN-5602-400
Availability:
We will Check on Delivery Time and Advise
Henry 5602-400 Relief Valve, Cast Iron Angle, 3/4" FPT inlet x 1" FPT outlet, 400PSIG.
Protect system components such as receivers, heat exchangers and vessels from dangerous overpressure.
Features
- Set pressure tolerance = +/-3%
- Maximum overpressure = 10%
- Proven safe design
- Precision machined parts for maximum reliability
- Compact design
- Blow-Out proof seal design
- Tamper proof
- Supplied with an installation date sticker
- Dedicated hole for attachment of additional third party tags
- Available marked in either metric (Barg and kg Air/min) or imperial (PSlg and lbs Air/min) units
Product Details
- Part Number: 5602-400
- Brand: Henry Technologies
- Series: PRV: Ammonia Range
- Category: Safety Devices › Pressure Relief Valves
- Suitable For: A2L Refrigerants, Ammonia, Conventional Refrigerants
- Max Working Pressure: Exclusive of 5604: 31 Barg (450 PSIg) 5604: 24.1 Barg (350 PSlg)
- Operating Temperature Range: -29°C to +107°C (-20.2°F to +224.6°F)
- Refrigerant Compatibility: A2L, Ammonia, CO2, HCFC, HFC, HFO and R290 where materially compatible
- Sizes Available: 1/4" to 1/2"
- Product Certification: ASME-UV, CE and UKCA
