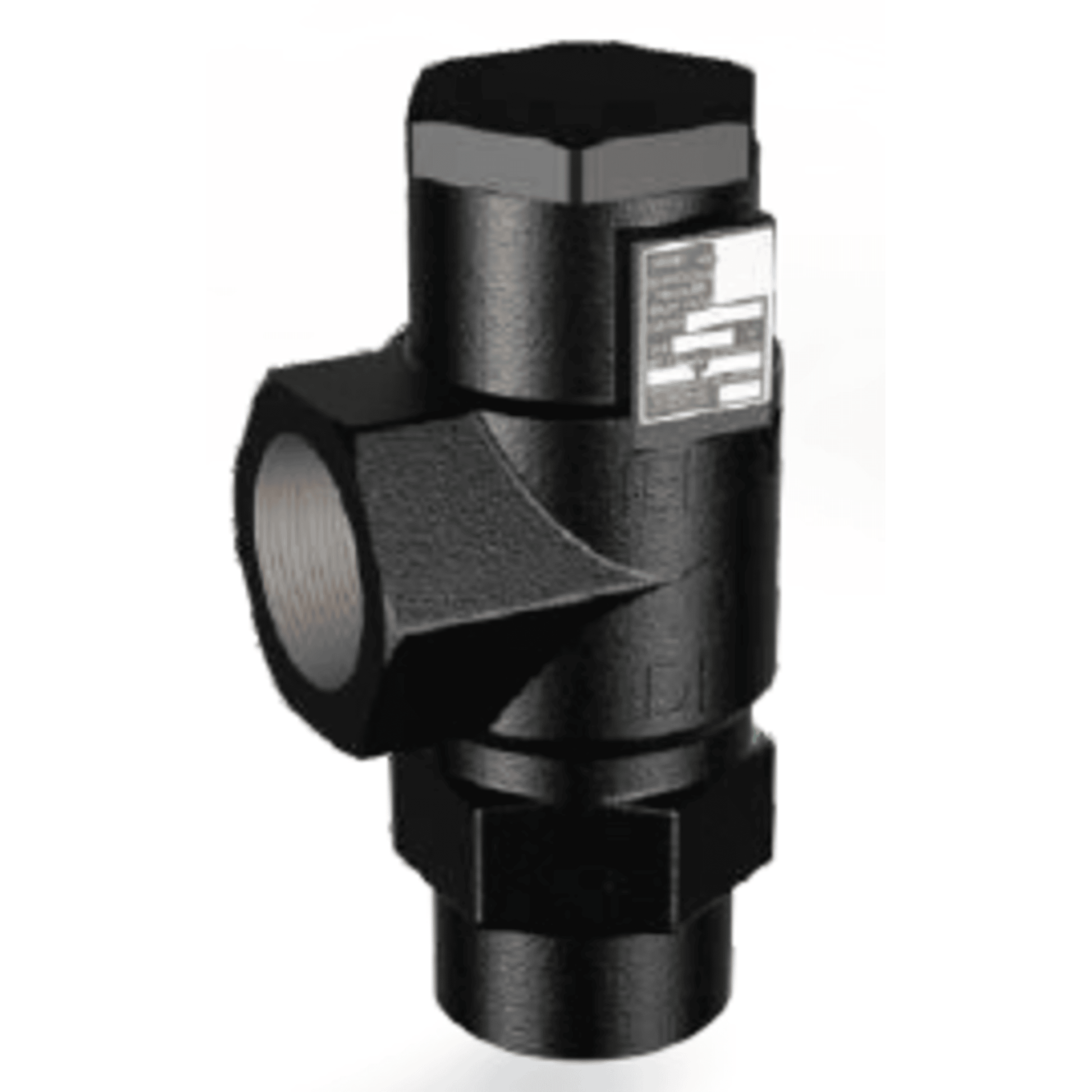

Henry 5601-50, Relief Valve Cast Iron Angle Type, Inlet 1/2" FPT - Outlet 3/4" FPT

The Henry 5601-150 Relief Valve is a cast iron angle type valve designed for use in refrigeration systems to prevent over-pressure due to system malfunction or excessive external heat. Here are its key technical specifications:

• Inlet Connection: 1/2" Female Pipe Thread (FPT)
• Outlet Connection: 3/4" Female Pipe Thread (FPT)
• Body Material: Cast Iron
• Pressure Settings: Available in settings from 150 psi to 450 psi
• Temperature Rating: -20°F (-28°C) to +160°F (+71°C)
• Seat Material: Teflon® or Neoprene
• Certifications: ASME UV-stamped and National Board certified
• Suitable for: Ammonia, HFCs, and CFCs refrigerants, and other industrial fluids non-corrosive to steel and Teflon
• Finish: Protective lacquer finish

This valve is designed to provide reliable pressure relief and is suitable for various industrial applications
