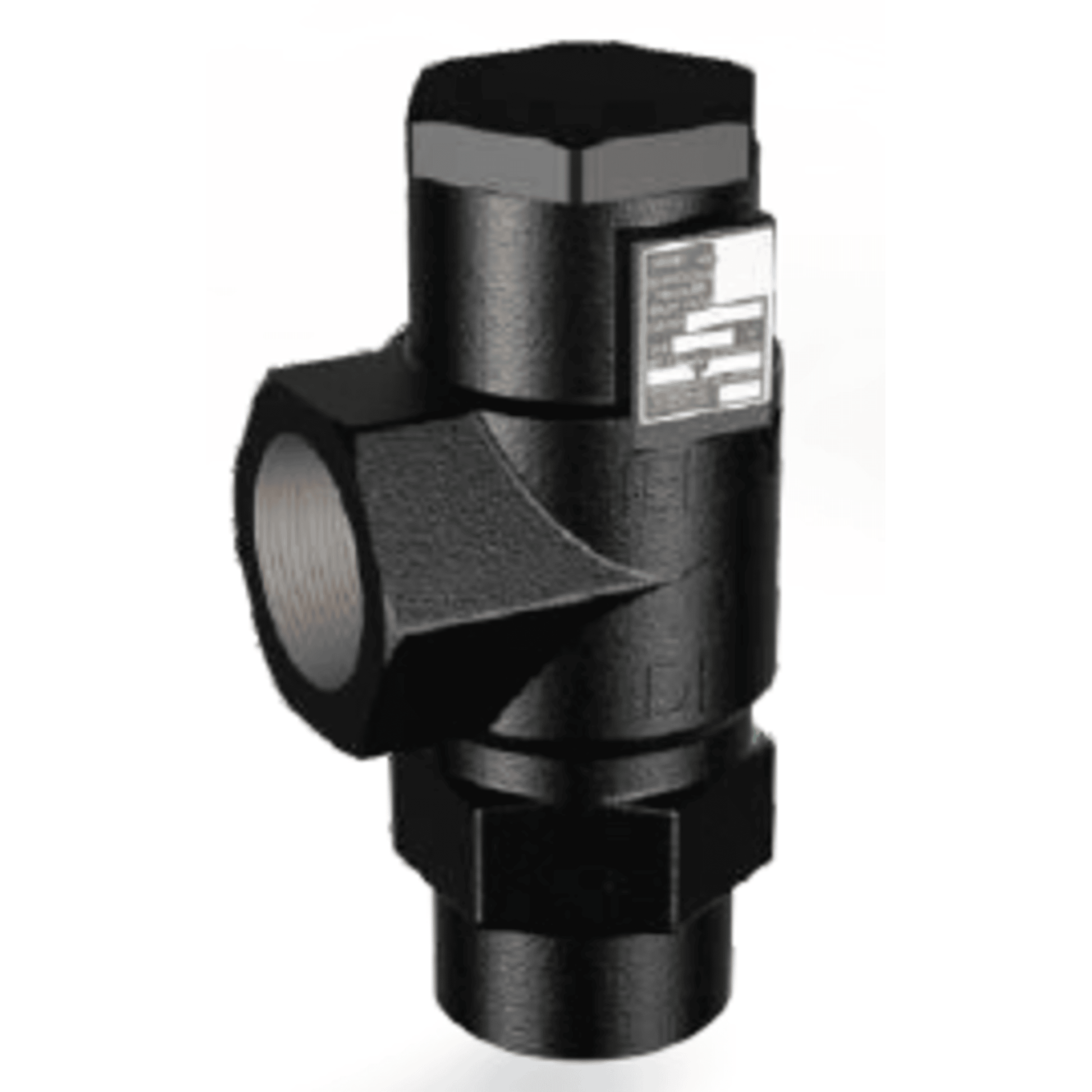

Relief Valve, 1/2 FPT-3/4 FPT - 225 - Cast Iron Angle Type - Henry

The Henry 5600-225 Relief Valve is a cast iron, angle-type pressure relief valve designed for industrial applications. Here are the key technical specifications:

• Body Material: Cast Iron
• Inlet Connection: 1/2" Female Pipe Thread (FPT)
• Outlet Connection: 3/4" Female Pipe Thread (FPT)
• Pressure Range: 150 psi to 450 psi
• Temperature Range: -20°F to +225°F (-29°C to +107°C)
• Seat Material: Teflon or Neoprene
• Certifications: ASME UV and National Board certified
• Suitable Fluids: Ammonia, HFCs, CFCs, and other industrial fluids non-corrosive to steel and Teflon
• Features:
  • Stainless steel seat inserts and discs
  • Protective lacquer finish
  • Unique serialization for tagging requirements

This valve is designed to protect against accidental over-pressure in pressure vessels due to system malfunctions or fire
