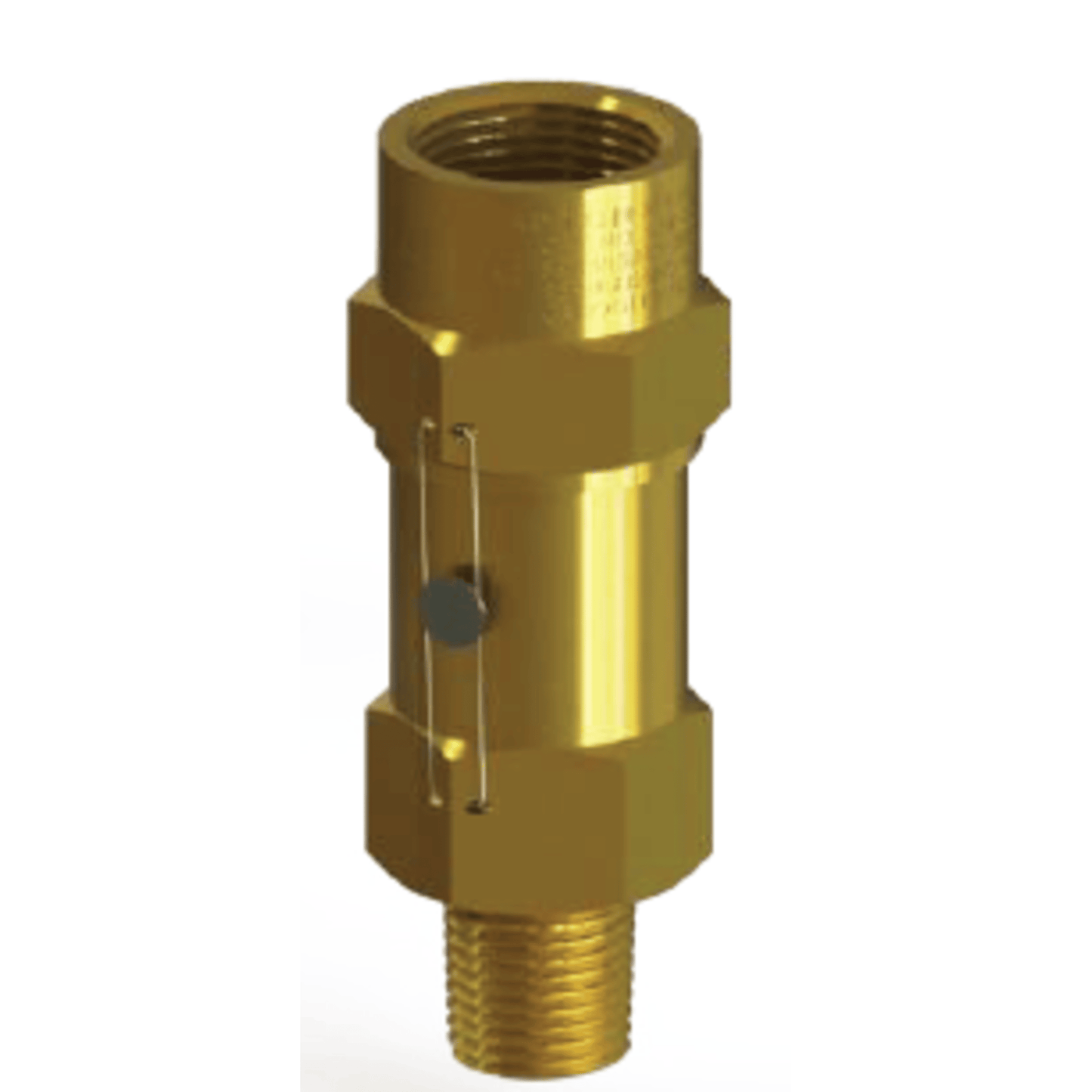

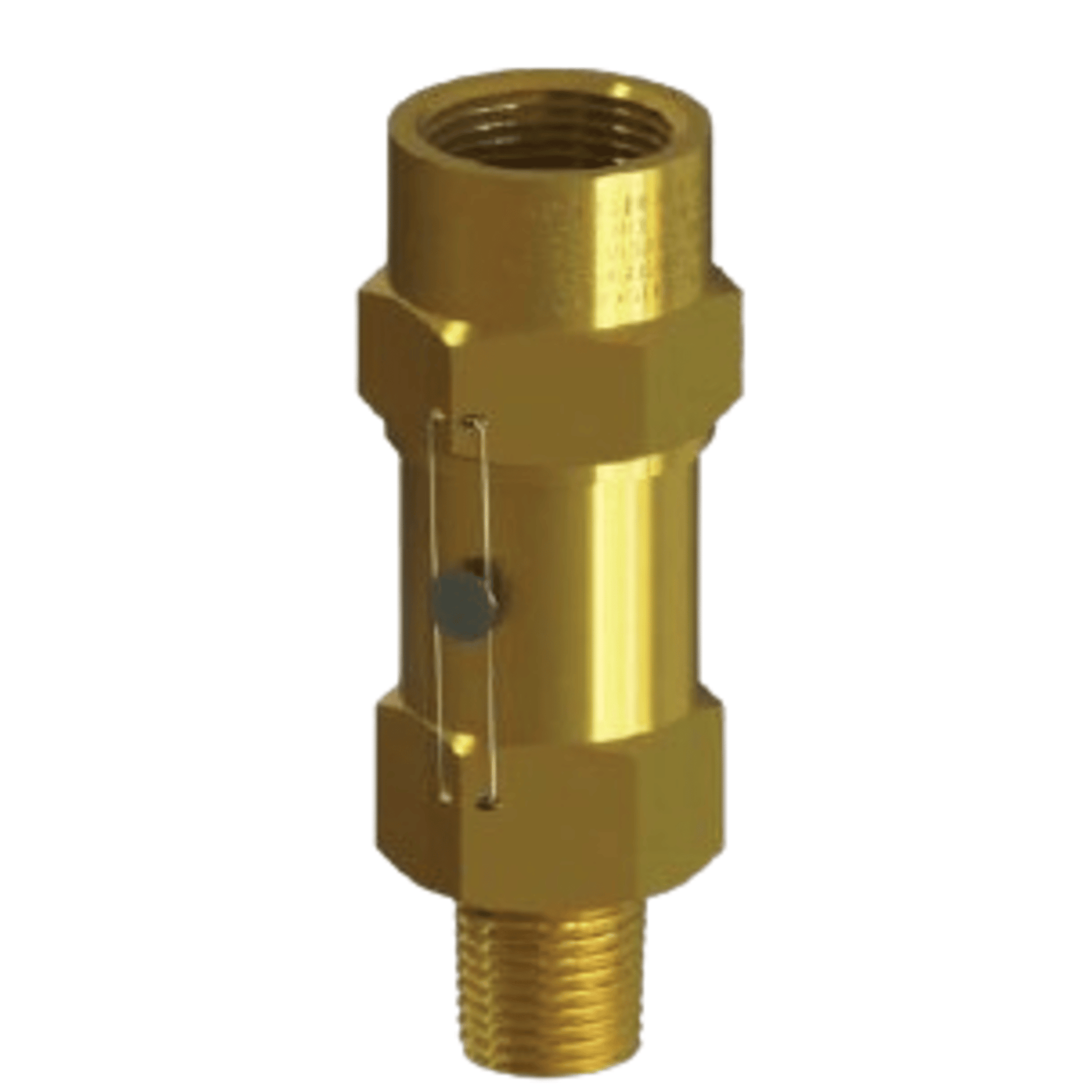

Henry 5245-200, Relief Valve Brass St.-Thru Type, Inlet 1" MPT - Outlet 1 1/4" FPT

Henry 5245-200 Relief Valve

• Type: Brass Straight-Thru
• Inlet Size: 1" Male Pipe Thread (MPT)
• Outlet Size: 1 1/4" Female Pipe Thread (FPT)
• Material: Brass
• Application: Designed for use in refrigeration systems to prevent over-pressure due to system malfunction or excessive external heat.
• Suitable for: Refrigerant vapor or gas
• Installation: Typically installed on the top section of a pressure vessel, such as a liquid receiver or suction accumulator.
• Temperature Range: -40°F (-40°C) to +225°F (+107°C)
• Pressure Setting: 200 PSI
• Certifications: UV/NB Certified

This valve is ideal for ensuring safety in refrigeration systems by relieving excess pressure, thus preventing potential damage or failure
