Henry - Relief Valve, Brass Straight-Thru, 3/4" MPT inlet x 1" FPT outlet, 300PSIG - 5244A-300
Original price
$405.09
-
Original price
$405.09
Original price
$405.09
$405.09
-
$405.09
Current price
$405.09
SKU HEN-5244A-300
Availability:
We will Check on Delivery Time and Advise

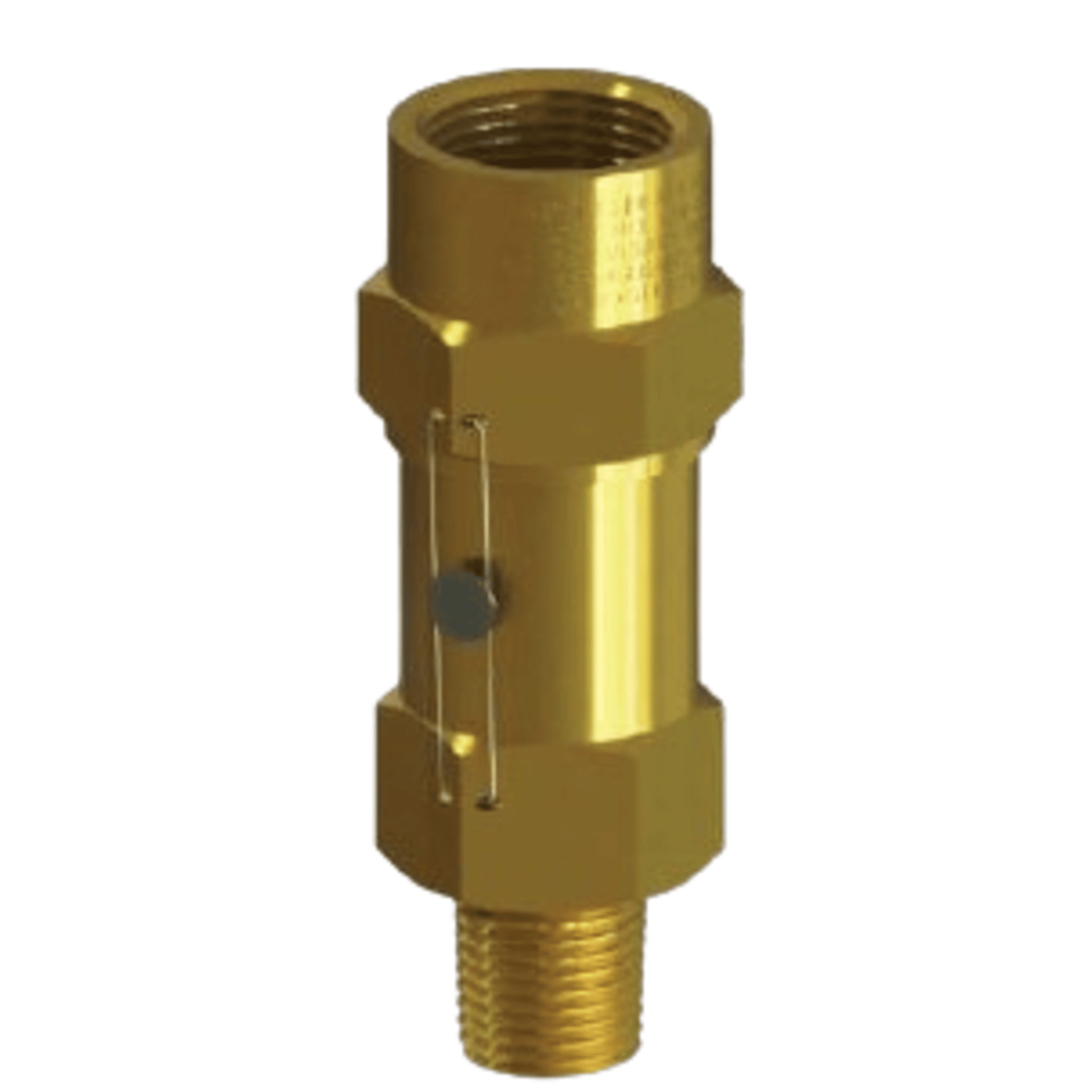

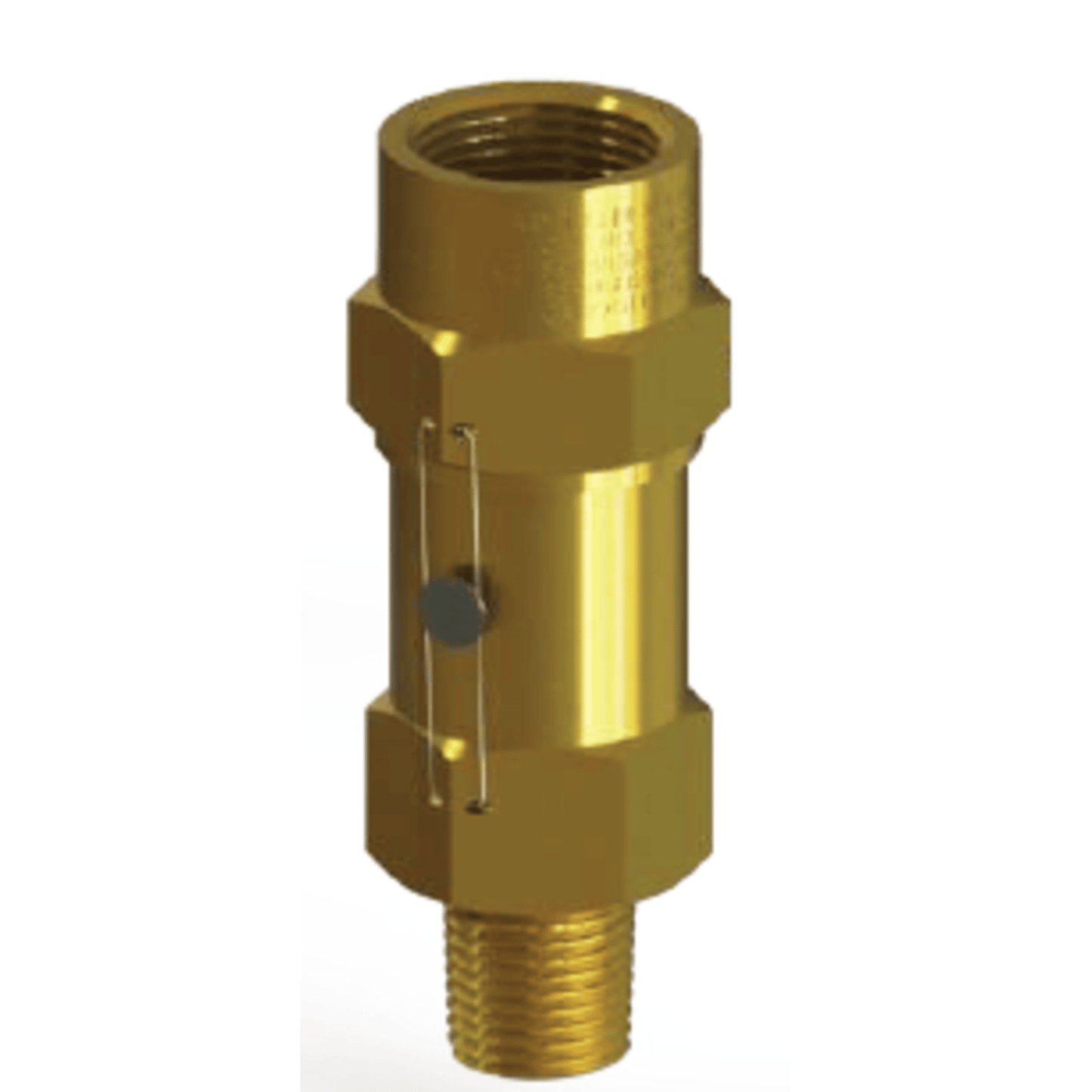

Henry 5244A-300 Relief Valve, Brass Straight-Thru, 3/4" MPT inlet x 1" FPT outlet, 300PSIG.
Protect system components such as receivers, heat exchangers and vessels from dangerous overpressure.
Features
- Set pressure tolerance = +/-3%
- Maximum overpressure = 10%
- Proven safe design
- Precision machined parts for maximum reliability
- Compact design
- Blow-Out proof seal design
- Tamper proof
Product Details
- Part Number: 5244A-300
- Brand: Henry Technologies
- Series: PRV: Standard Range
- Category: Safety Devices › Pressure Relief Valves
- Suitable For: A2L Refrigerants, Ammonia, Conventional Refrigerants
- Max Working Pressure: 31 Barg (450 PSIg)
- Operating Temperature Range: 52-Series: -40°C to +107°C (-40°F to +225°F) 53-Series: -29°C to +135°C (-20.2°F to +275°F)
- Refrigerant Compatibility: A2L, CO2, HCFC, HFC, HFO and R290 where materially compatible 53xx model numbers additionally suitable for use with Ammonia
- Sizes Available: 3/8" to 1 1/4"
- Product Certification: ASME-UV, CE and UKCA
