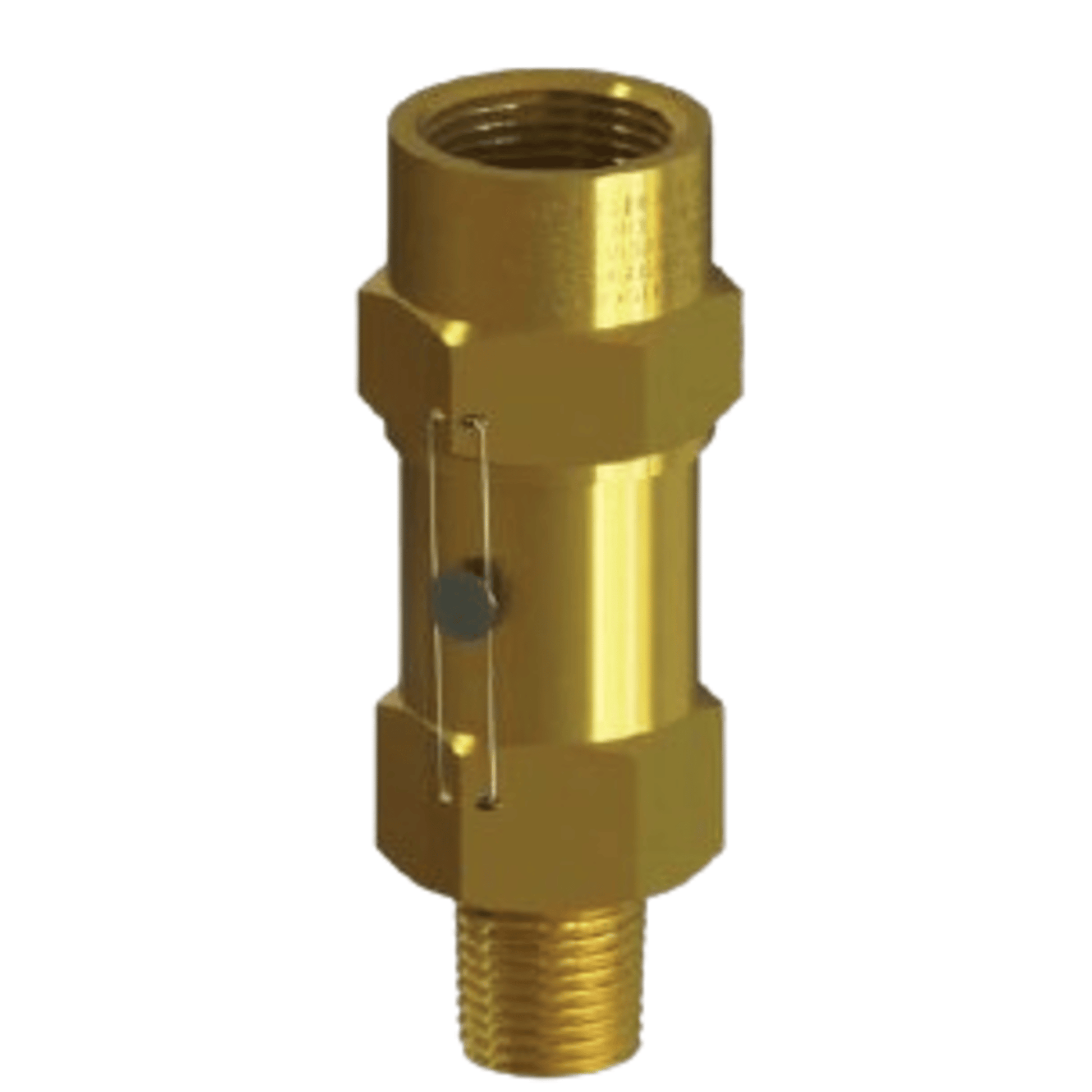

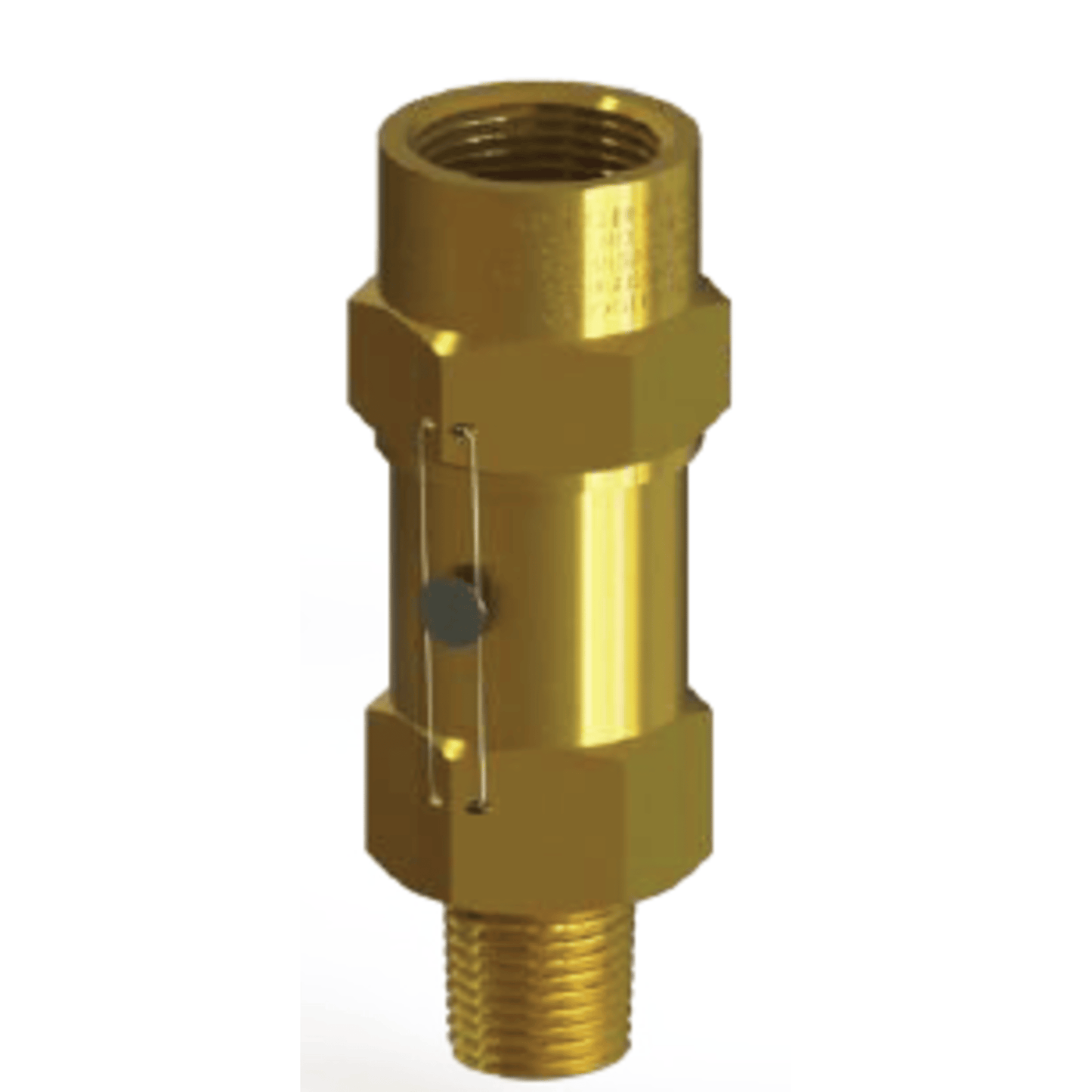

Henry 5242-400, Relief Valve Brass St.-Thru Type, Inlet 3/4" MPT - Outlet 3/4" FPT

Henry 5242-400 Relief Valve

• Type: Brass Straight-Thru
• Inlet Size: 3/4" Male Pipe Thread (MPT)
• Outlet Size: 3/4" Female Pipe Thread (FPT)
• Material: Brass
• Application: Designed for use in refrigeration systems to prevent over-pressure due to system malfunction or excessive external heat.
• Suitable for: Refrigerant vapor or gas
• Installation: Typically installed on the top section of a pressure vessel, such as a liquid receiver or suction accumulator.
• Temperature Range: -40°F (-40°C) to +225°F (+107°C)
• Pressure Setting: 400 PSI
• Certifications: UV/NB Certified
