Henry - Shut-Off Valve, Brass Globe Type Golden Bantam Packless, 1/4" ODS, 6.35mm - 5161
Original price
$426.39
-
Original price
$426.39
Original price
$426.39
$426.39
-
$426.39
Current price
$426.39
SKU HEN-5161
Availability:
We will Check on Delivery Time and Advise

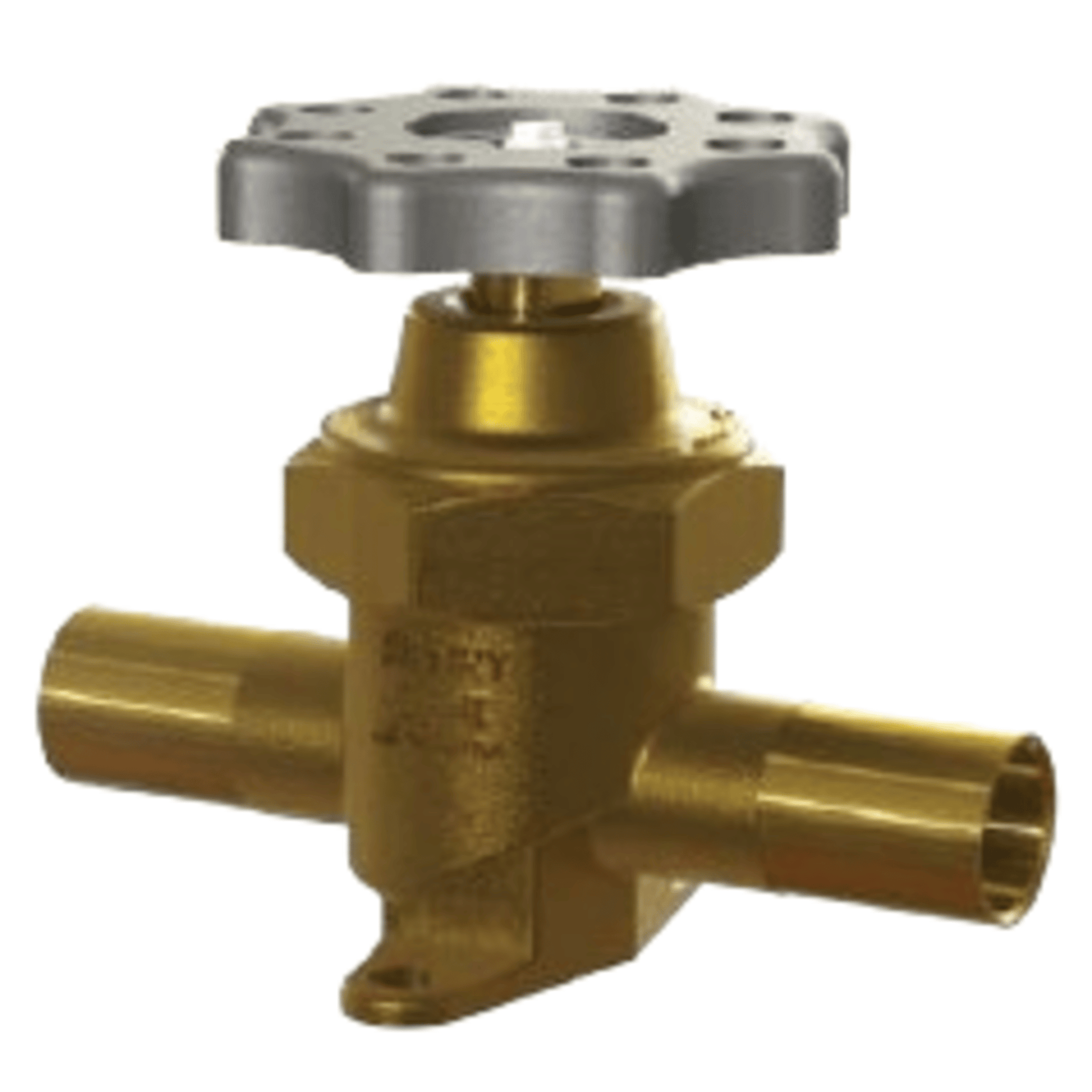

Henry 5161 Shut-Off Valve, Brass Globe Type Golden Bantam Packless, 1/4" ODS, 6.35mm.
Provide isolation for parts of the system for maintenance or flow control.
Features
- Forged Brass construction
- Heat stabilized nylon seat disc for positive shut off
- Positive back-seating with valve in fully opened position
- Large diameter diaphragm for greater lift, resulting in better flow
- ODS and NPT bottom connections
- Hermetic seal between body and bonnet, negates stem leakage. Can be used in enclosed spaces
- Compact design
- Sturdy die cast handwheel
Product Details
- Part Number: 5161
- Brand: Henry Technologies
- Series: Packless Valve Solder (UL)
- Category: Flow Controls › Isolating Valves
- Suitable For: Conventional Refrigerants
- Max Working Pressure: 34.5 Barg (500 PSIg)
- Operating Temperature Range: -29˚C to +135˚C (-20°F to +275°F)
- Refrigerant Compatibility: A2L, HC, HCFC, HFC and HFO where materially compatible
- Sizes Available: 1/4", 3/8", 1/2" and 5/8"
- Product Certification: ASME ANSI B31.5, AS/NZS 5149.2, CE, ISO 5149.2 and UL
