Henry 205-1-3/8, Check Valve, Brass Globe Type for Discharge Line, 1-3/8 ODS

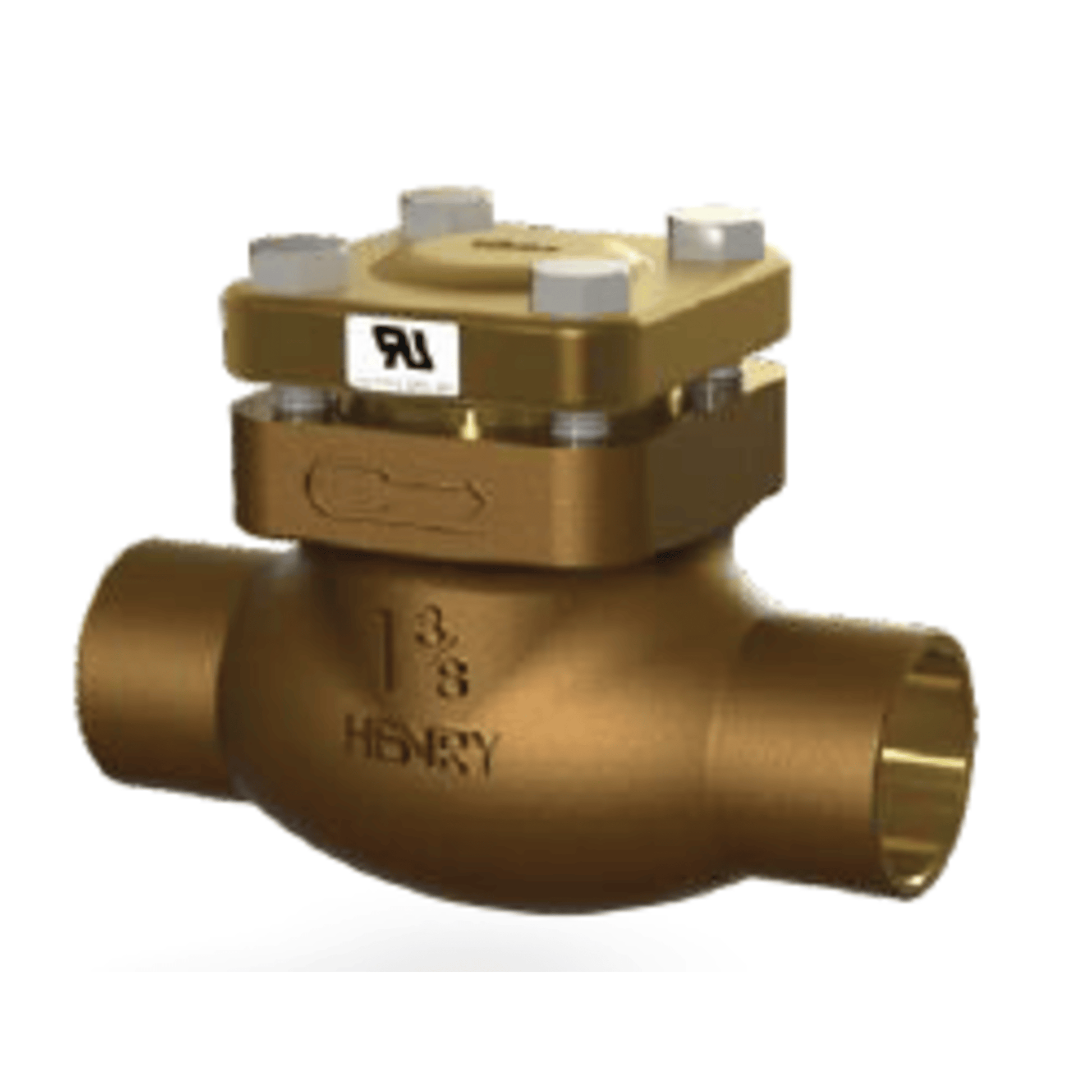

Henry 205-1-3/8 Check Valve

Type: Brass Globe Type for Discharge Line

Connection Size: 1-3/8" ODS (Outside Diameter Sweat)

Description: The Henry 205-1-3/8 Check Valve is designed to permit fluid flow in one direction only, effectively preventing backflow in discharge lines. This valve is particularly suitable for use in refrigeration and air conditioning systems, ensuring optimal system performance and protecting critical components like compressors.

Key Features:

• Material: Constructed from durable brass, offering excellent resistance to corrosion.
• Design: Globe type design for precise flow control.
• Spring: Stainless steel spring for consistent and reliable operation.
• Seat: PTFE (Polytetrafluoroethylene) seat for superior sealing and chemical resistance.
• Flow Direction: Clearly indicated with an arrow on the valve body.
• Operation: Quiet and efficient with minimal opening pressure.

Technical Specifications:

• Maximum Working Pressure: 500 PSI (34.5 Bar)
• Allowable Operating Temperature: -20°F to +300°F (-29°C to 149°C)
• Opening Pressure: Begins to open at 0.5 PSI and fully opens at 5 PSI pressure differential.

Applications:

• Ideal for installation downstream of an oil separator to prevent condensed liquid refrigerant from returning down the discharge line.
• Compatible with HCFC and HFC refrigerants and their associated oils, as well as other industrial fluids non-corrosive to brass, steel, copper, Teflon, and synthetic rubber.
