Henry 116007, Spring Actuated Check Valve With Vertical Piston, 7/8 ODS

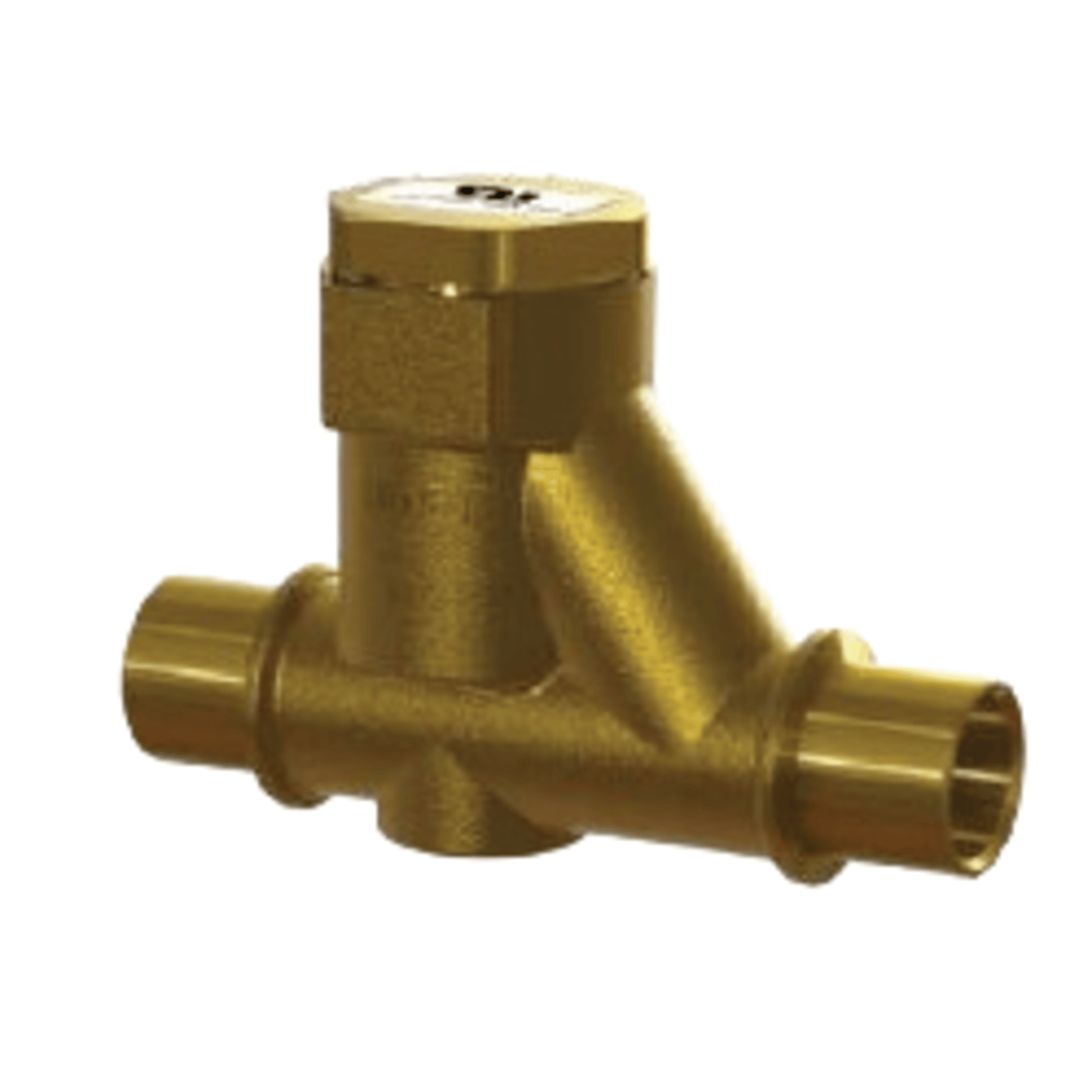

Henry 116007 Spring Actuated Check Valve

Type: Spring Actuated Check Valve with Vertical Piston

Connection Size: 7/8" ODS (Outside Diameter Sweat)

Description: The Henry 116007 Spring Actuated Check Valve is designed to ensure unidirectional flow in discharge lines, preventing backflow and maintaining system efficiency. This valve is particularly suitable for refrigeration and air conditioning systems, providing reliable performance and protection for critical components.

Key Features:

• Material: Constructed from rugged forged brass or cast aluminum bronze, offering excellent durability and corrosion resistance.
• Design: Vertical piston design for precise flow control and minimal pressure drop.
• Spring: Stainless steel spring for consistent and reliable operation.
• Flow Direction: Clearly indicated with an arrow on the valve body.
• Operation: Quiet and efficient with minimal opening pressure.

Technical Specifications:

• Maximum Working Pressure: 500 PSI (34.5 Bar)
• Allowable Operating Temperature: -20°F to +300°F (-29°C to 149°C)
• Opening Pressure: Begins to open at 0.5 PSI and fully opens at 5 PSI pressure differential

Applications:

• Ideal for installation in discharge lines to prevent backflow and protect compressors.
• Compatible with HCFC and HFC refrigerants and their associated oils, as well as other industrial fluids non-corrosive to brass, steel, copper, Teflon, and synthetic rubber.
