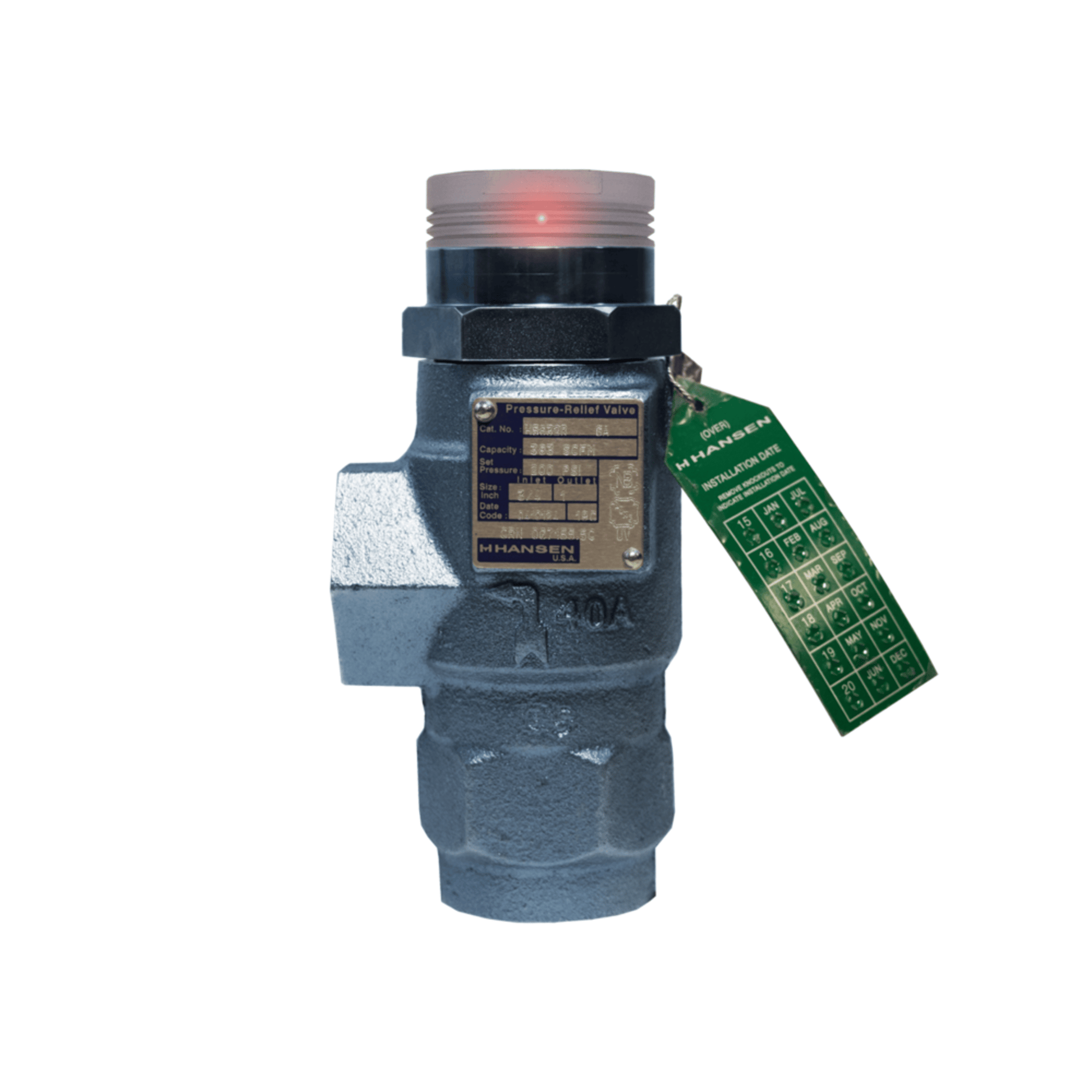

H5602/200-P - Hansen - NH3 Pressure Relief Valve 3/4 x 1, Set@200 PSIG, POP-EYE

The Hansen H5602/200-P is a pressure relief valve specifically designed for NH₃ (ammonia) systems, with the following key specifications and features:

🔧 Technical Specifications

• Model: H5602/200-P
• Inlet/Outlet Size: 3/4" FPT (inlet) x 1" FPT (outlet)
• Set Pressure: 200 PSIG
• Valve Type: Standard capacity pressure relief valve
• Media: Ammonia (NH₃)

🌟 Key Features

• POP-EYE Indicator:
  • A bright, flashing LED that activates when the valve lifts.
  • Provides 360° visibility.
  • Battery-operated with a 7+ year life.
  • Blinks for 2+ weeks after activation.
  • No setup, calibration, or wiring required.
• ACT Coating: Anti-Corrosion Technology for extended valve life.
• Construction:
  • Stainless steel insert, piston, and spring.
  • Premium-grade virgin Teflon® seat disc.
  • Neoprene O-ring for moisture sealing.
