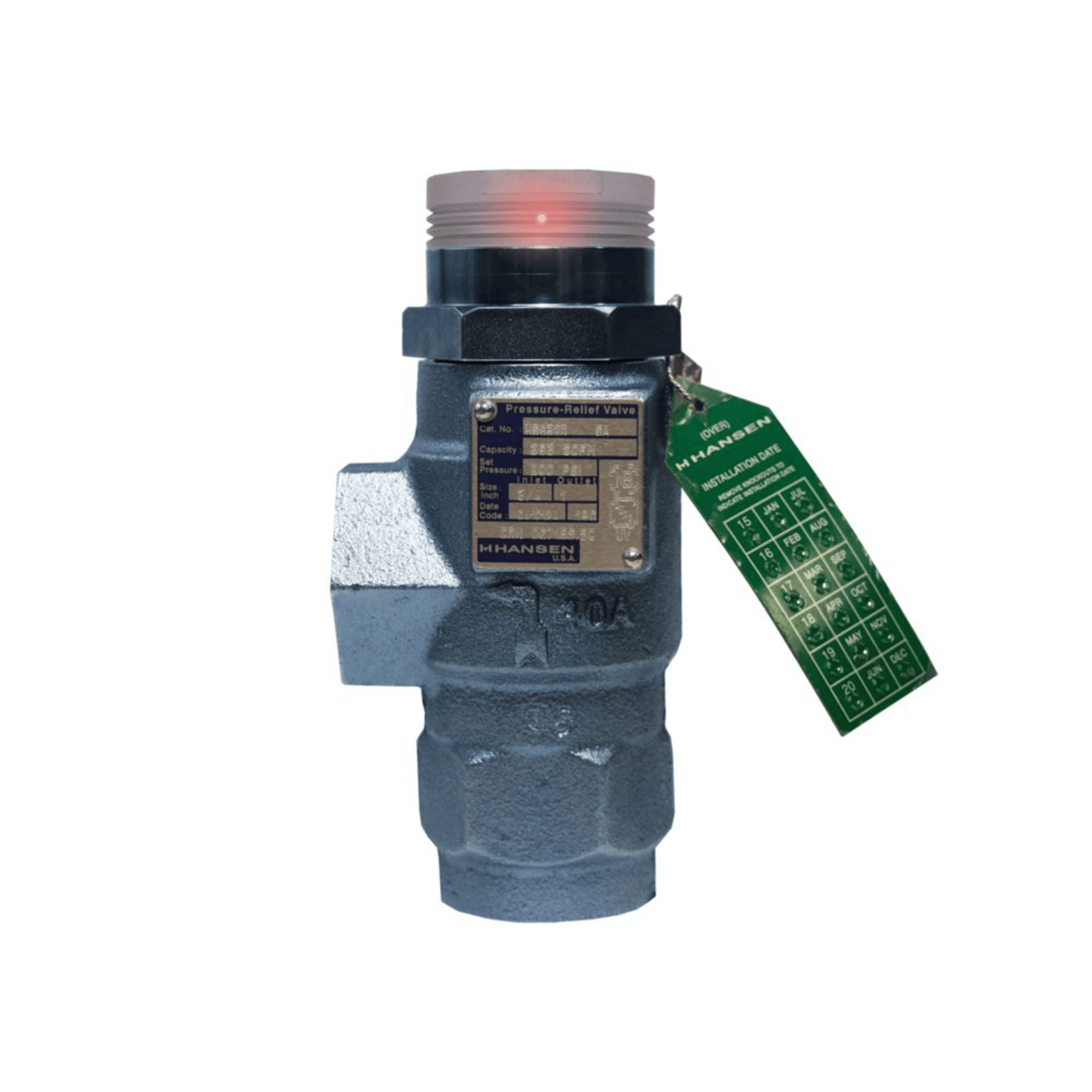

H5600R/250-P - Hansen - NH3 Pressure Relief Valve 1/2 x 3/4

The Hansen H5600R/250-P is a reduced-capacity ammonia (NH₃) pressure relief valve, factory-set to open at 250 PSIG, and designed for use in industrial refrigeration systems. It includes Hansen’s POP-EYE™ visual indicator and features corrosion-resistant construction.

🔧 Key Specifications

• Model: H5600R/250-P
• Type: Reduced Capacity Pressure Relief Valve
• Set Pressure: 250 PSIG
• Inlet/Outlet: 1/2" FPT × 3/4" FPT
• Seat Disc: Premium-grade virgin Teflon®
• Internal Components: Stainless steel insert, piston, and spring
• Seal: Neoprene O-ring
• Body Coating: ACT® (Anti-Corrosion Technology)
• Weight: Approx. 12 lbs
  1
• Certifications: National Board Certified, CE-CAT.II, MOD.H, EF110 compliant

💡 POP-EYE™ Indicator Features

• Bright LED with 360° visibility
• Blinks for 2+ weeks after valve lifts
• Battery life: 7+ years
• No wiring, setup, or calibration required
• Drop-in replacement for older H56XX models
• Not retrofittable to existing valves
