HAN-H5600A/250-P

Keep Supply

Relief Valve NH3 Pressure 1/2 x 3/4, Set@250 PSIG, POP-EYE - Hansen

Relief Valve NH3 Pressure 1/2 x 3/4, Set@250 PSIG, POP-EYE - Hansen

Call for Availability

$732.50 CAD
$732.50 CAD $732.50 CAD
Sale
Shipping calculated at checkout.

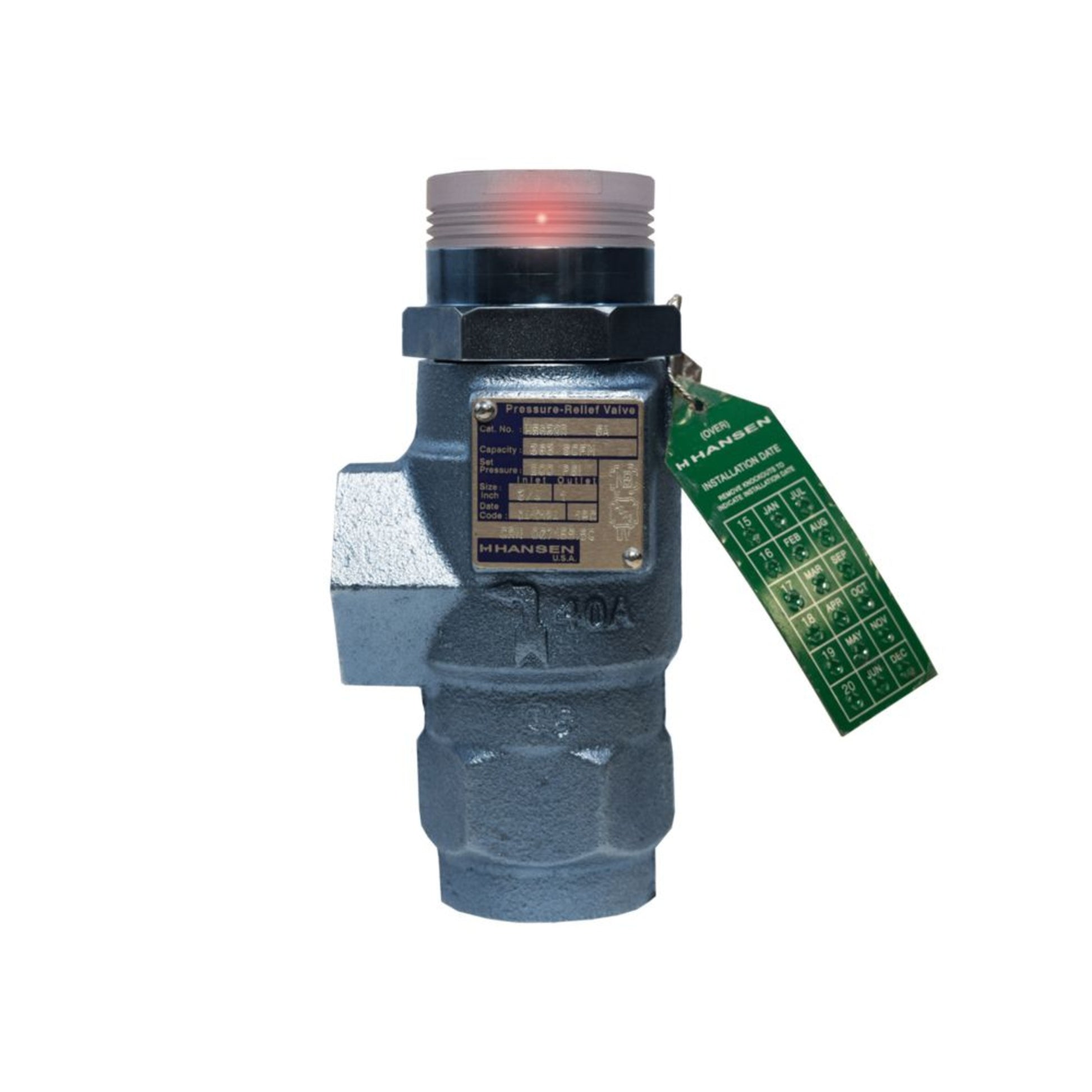

The Hansen H5600A/250-P is a pressure relief valve designed for ammonia (NH₃) refrigeration systems, featuring the POP-EYE™ self-alarming indicator and factory-set to open at 250 PSIG.

🔧 Key Specifications

  • Model: H5600A/250-P
  • Inlet/Outlet: 1/2" FPT × 3/4" FPT
  • Set Pressure: 250 PSIG
  • Pressure Range: 150 400 PSIG (10.4 28 bar)
  • Safe Working Pressure: 400 PSIG (28 bar)
  • Seat Disc: Premium-grade virgin Teflon
  • Internal Components: Stainless steel insert, piston, and spring
  • Seal: Neoprene O-ring
  • Body Coating: ACT (Anti-Corrosion Technology)
  • Weight: ~5 lbs
  • Dimensions: 5" W × 4" H × 9" D

💡 POP-EYE™ Indicator Features

  • Bright LED with 360° visibility
  • Blinks for 2+ weeks after valve lifts
  • Battery life: 7+ years
  • No wiring, setup, or calibration required
  • Not retrofittable to older valves
  • Drop-in replacement for previous H56XX models
