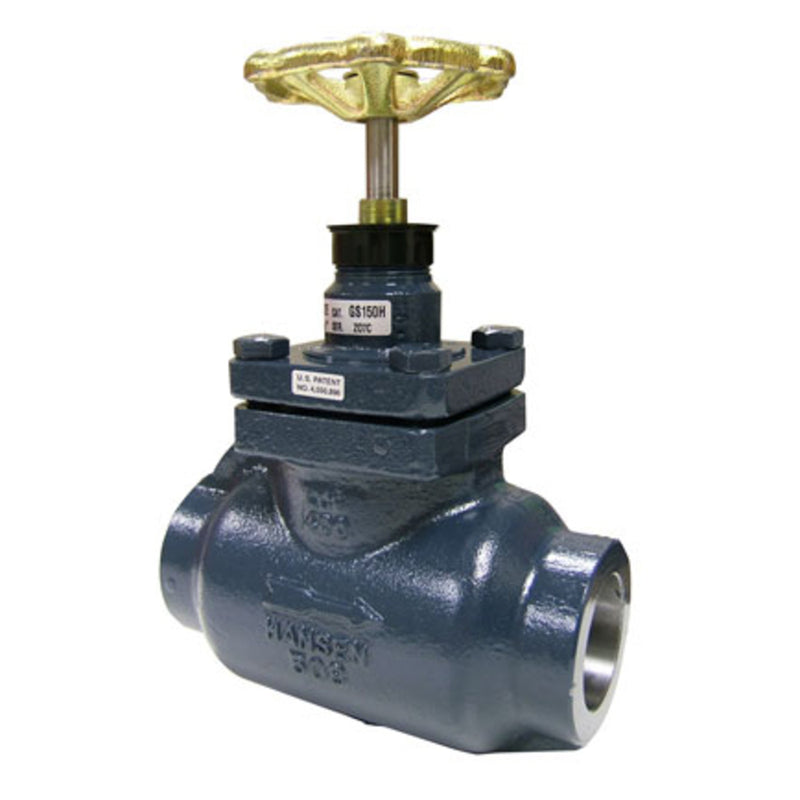

Shut-off Valve 1-1/2" Refrigerant . Globe, Socket Weld, SC - Hansen

The Hansen GS150C is a 1-1/2" globe-style refrigerant shut-off valve with a socket weld (SW) connection and seal cap (SC). It's designed for industrial refrigeration systems and offers robust performance with minimal leakage.

🔧 Key Specifications

• Model: GS150C
• Type: Globe Shut-off Valve
• Connection: Socket Weld (SW)
• Size: 1-1/2" (40 mm)
• Body Material: Cast steel (ASTM A-352, Grade LCB)
• Bonnet: Ductile iron (ASTM A536), screwed style
• Stem: Polished stainless steel
• Seat Disc: Retained PTFE (Teflon)
• Stem Packing: Graphite composite + neoprene O-ring
• Seal Cap: Zinc-plated steel
• Handwheel: Zinc-plated iron alloy
• Safe Working Pressure: 400 psig (28 bar g) standard, 600 psig (41 bar g) optional
• Operating Temperature: -60°F to 240°F (-51°C to 115°C); optional range: -20°F to 300°F (-29°C to 149°C)
• Dimensions: Approx. 15" L × 12" W × 7" H
• Weight: ~21 lbs

💡 Features

• Quick and clean installation with socket weld connections
• Superior sealing and durability compared to threaded or flanged valves
• Designed for minimal leakage at seats, stems, and bonnets
