Malco Disc, 2-Station, Small

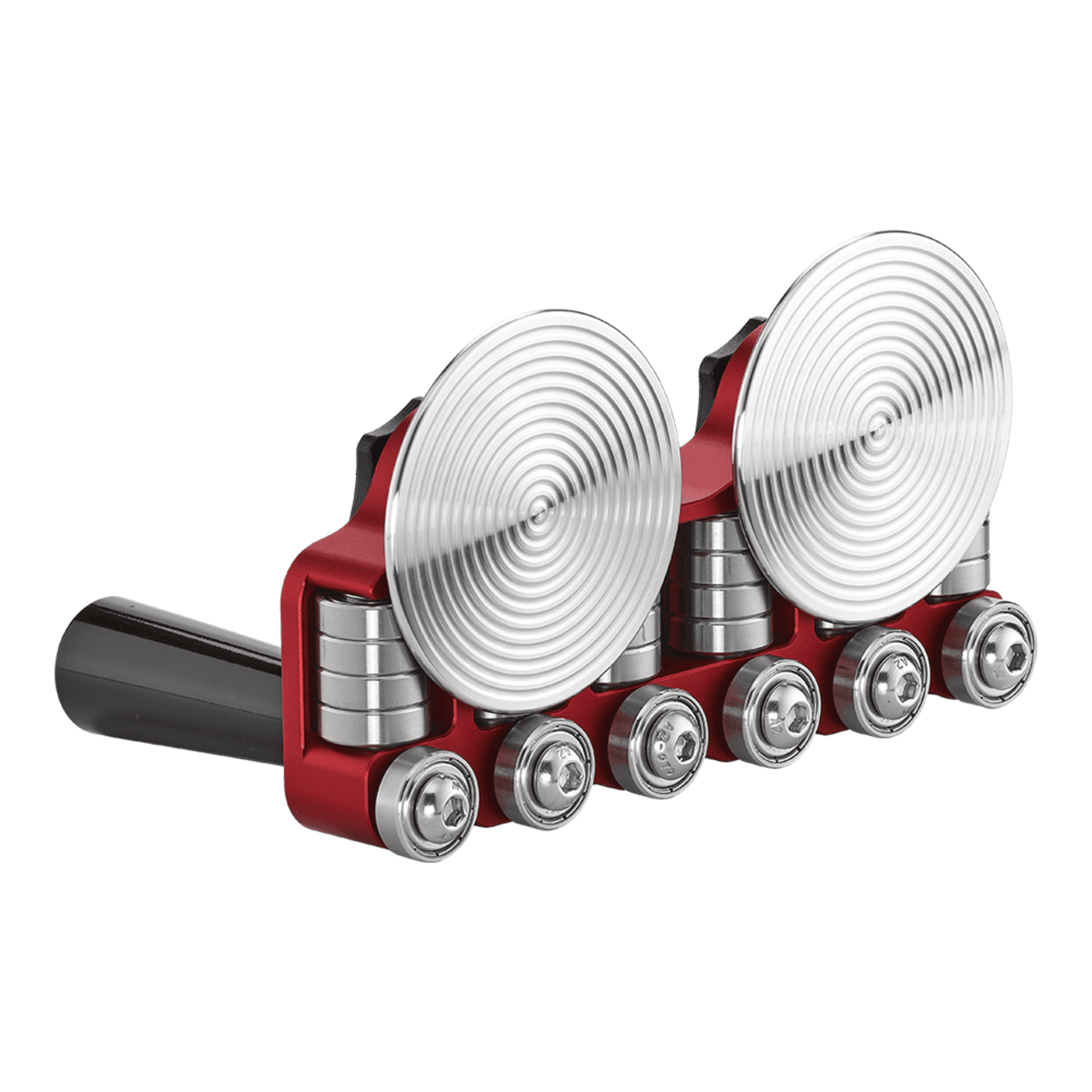

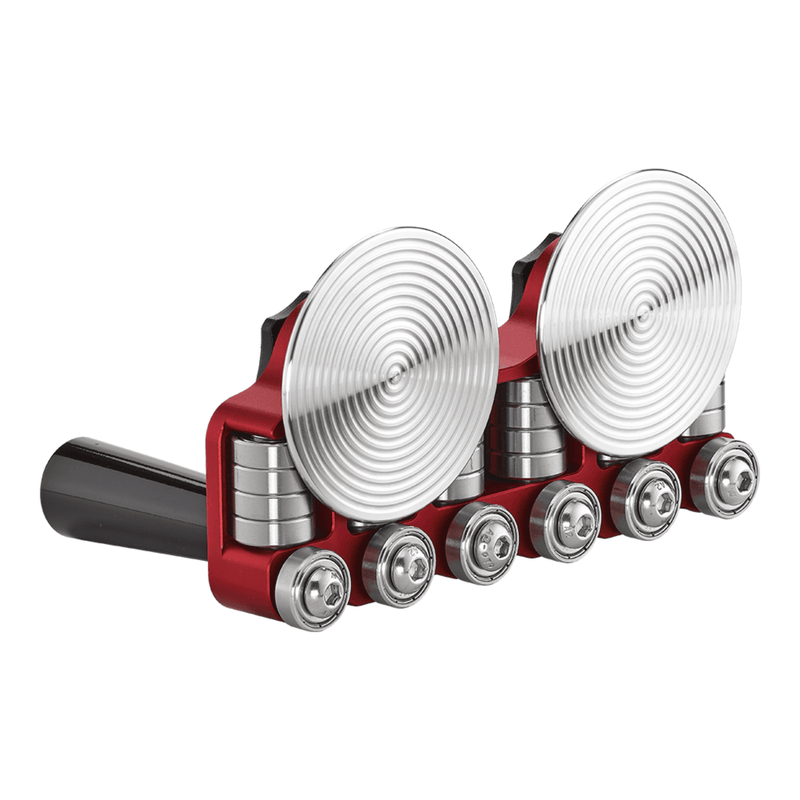

The Malco FS2DS - 2 Station Disc, Small is a compact, professional-grade metal disc bender designed for precision work on long, straight or curved sheet metal panels. Here's a detailed breakdown:

Product Brochure

?? Product Overview

• Model: FS2DS
• Type: 2-Station Metal Disc Bender (Small)
• Design Purpose: Ideal for continuous hems over 10 feet and other long, straight bends in roofing, HVAC, and sheet metal fabrication.

?? Bending Capabilities

• Bend Depth: 5/16? to 1 1/8? (8 – 30 mm)
• Bend Angle: 90° to 180°
• Bend Radius: 0.059? (1.5 mm)
• Compatible Materials:
  • 24-gauge steel
  • 26-gauge stainless steel
  • 0.040? aluminum
  • 20 oz copper
  • 1 mm zinc

??? Key Features

• Dual Disc Stations: Provide even pressure and better tracking over long panels
• Seven Bearing Guides: Ensure smooth, accurate movement along the material
• Removable Discs: Allow for quick disassembly and mid-panel tool removal
• Durable Construction: CNC-machined aluminum and stainless steel for corrosion resistance and precision
• Lightweight & Portable: Designed for easy transport and setup on the jobsite
• Use Cases: Perfect for forming hems, ridge caps, fascia details, and interlocking features in roofing and ductwork
