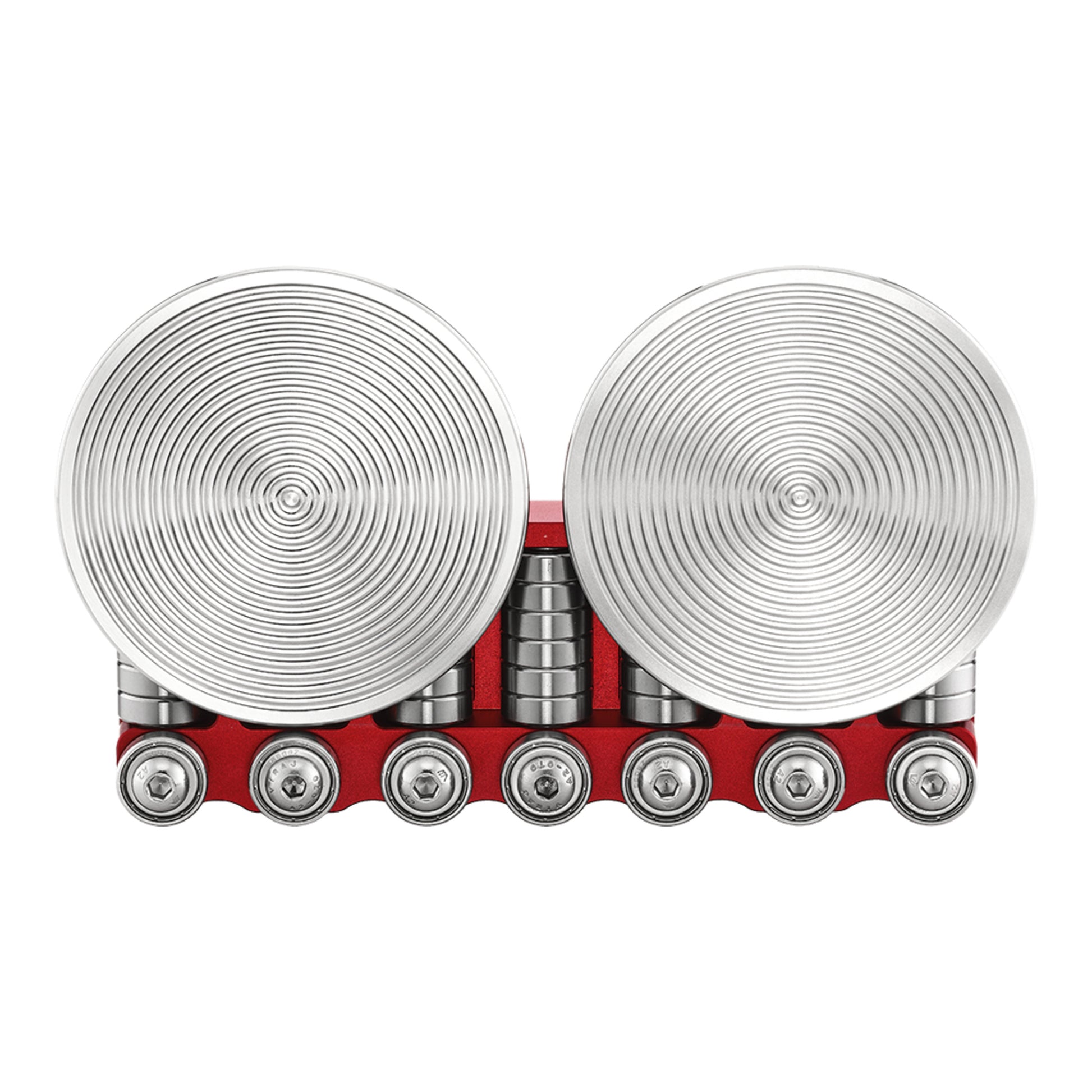

Bender 2 Station Disc, Large - Malco

The Malco FS2DL - 2 Station Disc, Large is a professional-grade modular metal bender designed for forming long, precise bends in sheet metal directly on the jobsite. Here's a detailed breakdown:

Product Brochure

🔧 Product Overview

• Model: FS2DL
• Type: 2-Station Metal Disc Bender (Large)
• Design Purpose: Ideal for continuous hems over 10 feet and other long, straight bends in roofing and HVAC applications.

📐 Bending Capabilities

• Bend Depth: 5/16″ to 1 3/4″ (8 45 mm)
• Bend Angle: 90° to 180°
• Bend Radius: 0.059″ (1.5 mm)
• Compatible Materials:
  • 24-gauge steel
  • 26-gauge stainless steel
  • 0.040″ aluminum
  • 20 oz copper
  • 1 mm zinc

🛠️ Key Features

• Dual Disc Stations: Allows for more even pressure and better tracking over long panels
• Seven Bearing Guides: Ensure smooth, accurate movement along the material
• Removable Discs: Enable quick disassembly and mid-panel tool removal
• Durable Construction: CNC-machined aluminum and stainless steel for corrosion resistance and long-term precision
• Lightweight & Portable: Designed for easy transport and setup on the jobsite
• Use Cases: Perfect for forming hems, ridge caps, fascia details, and interlocking features in roofing and ductwork
