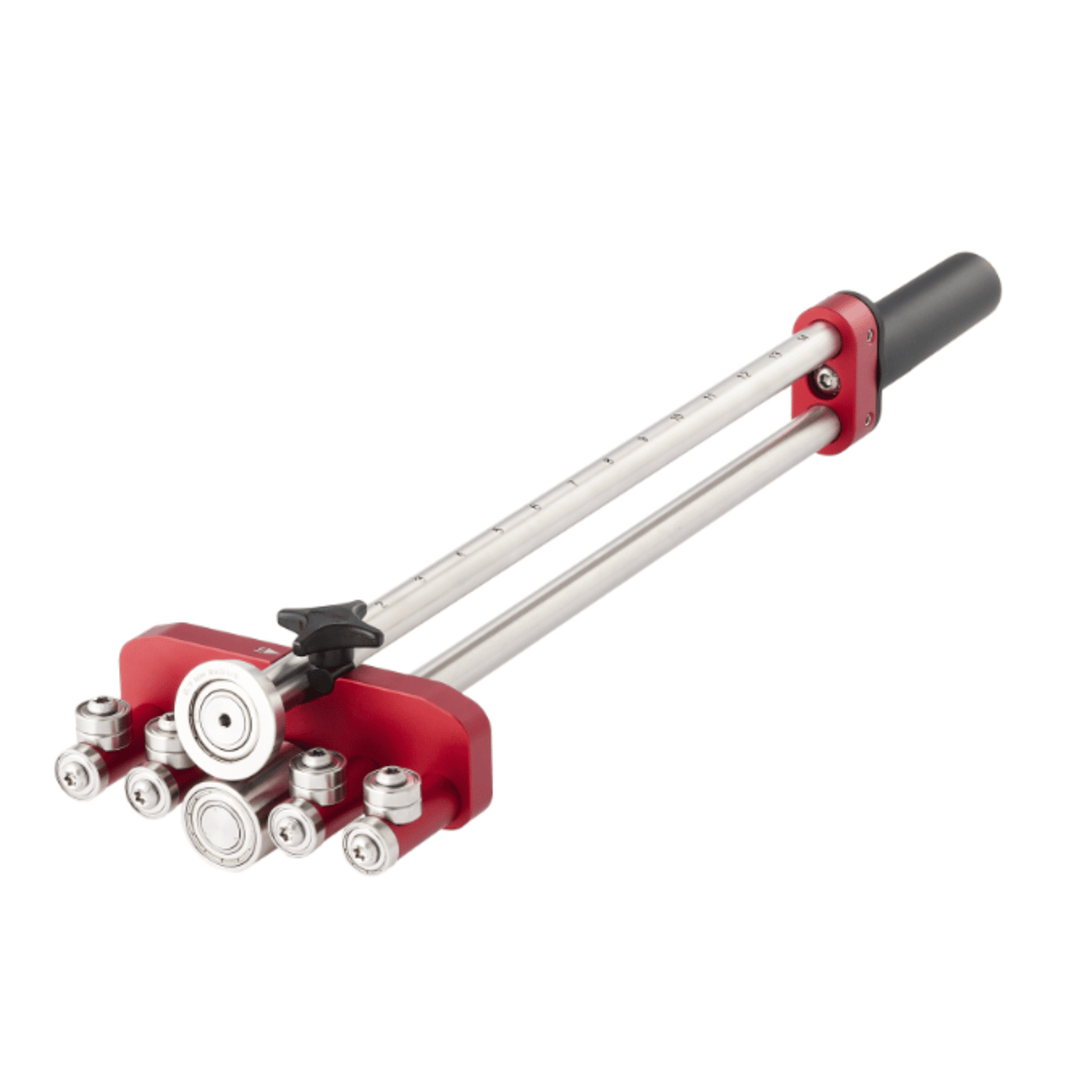

Malco Single-Station Bender, 365 mm

The Malco FS1W365 - Single Station Bender (365mm, Wide) is the largest model in Malco’s modular metal bender lineup, designed for maximum bend depth and control. Here's a comprehensive overview:

Product Brochure

?? Product Overview

• Model: FS1W365
• Type: Single Station Metal Bender (Wide)
• Width: 365 mm (14 3/8 inches)
• Design: Wide bearing stance for straighter, more controlled bends

?? Bending Capabilities

• Bend Depth: 3/16? to 14 3/8? (5 mm – 365 mm)
• Bend Angle: 0° to 100°
• Bend Radius: 0.027? (0.7 mm)
• Material Thickness: Adjustable from 0.020? to 0.040? (0.5 – 1 mm)
• Compatible Materials:
  • 24-gauge steel
  • 26-gauge stainless steel
  • 0.040? aluminum
  • 20 oz copper
  • 1 mm zinc

??? Key Features

• Wide Bearing Stance: Offers superior control for long, straight bends
• Modular Design: Can be paired with other Malco benders using the FSC1 Bender Connector
• Optional Accessories:
  • FSH2 Handle (sold separately)
  • FSLR Large Radius Roller for softer bends
  • FSBAG for transport and storage
• Laser Engraved Depth Markings: In both inches and centimeters
• Durable Construction: CNC-machined aluminum and stainless steel for corrosion resistance and precision
• Portability: Lightweight and compact with removable handle for tight spaces
