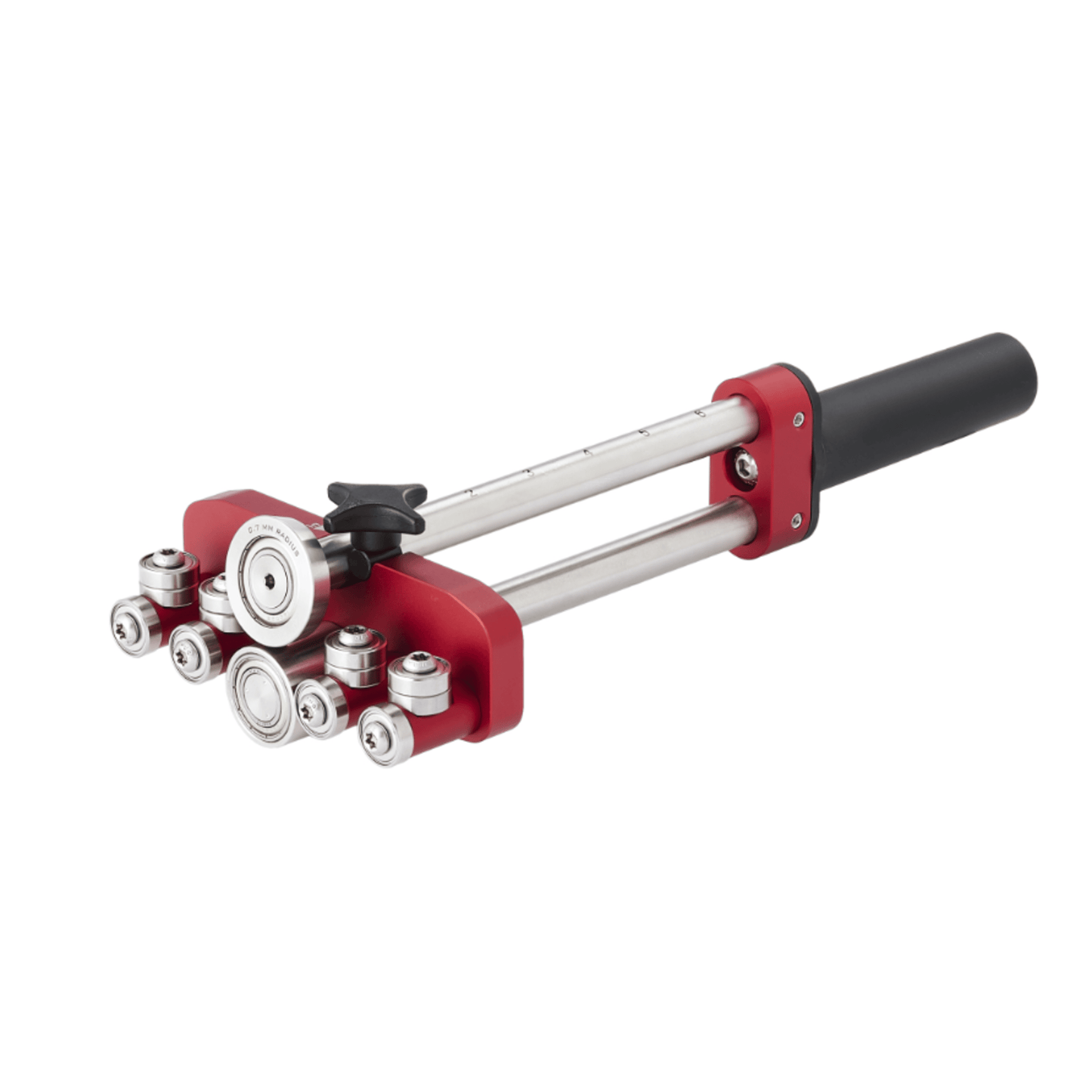

The Malco FS1W165 - Single Station Bender (165mm, Wide) is a professional-grade modular metal bending tool designed for high-precision, straight bends on a variety of sheet metal materials. Here's a detailed breakdown:

Product Brochure

🔧 Product Overview

• Model: FS1W165
• Type: Single Station Metal Bender (Wide)
• Width: 165 mm (6.5 inches)
• Design: Wide bearing stance for greater control and straighter bends

📐 Bending Capabilities

• Bend Depth: 3/16″ to 3″ (5 mm 165 mm)
• Bend Angle: to 100°
• Bend Radius: 0.027″ (0.7 mm)
• Material Thickness: 0.020″ 0.040″ (0.5 1 mm)
• Compatible Materials:
  • 24-gauge steel
  • 26-gauge stainless steel
  • 0.040″ aluminum
  • 20 oz copper
  • 1 mm zinc

🛠️ Key Features

• Wide Bearing Stance: Offers more control for straighter bends compared to narrow models
• Modular Design: Can be paired with other Malco benders using the FSC1 Bender Connector
• Optional Accessories:
  • FSH2 Handle (sold separately)
  • FSLR Large Radius Roller for softer bends
  • FSBAG for transport and storage
• Durable Construction: CNC-machined aluminum and stainless steel for corrosion resistance and precision
• Laser Engraved Depth Markings: In both inches and centimeters for quick setup
• Portability: Lightweight and compact with removable handle for tight spaces
