Bender, Single Station, 75mm - Malco

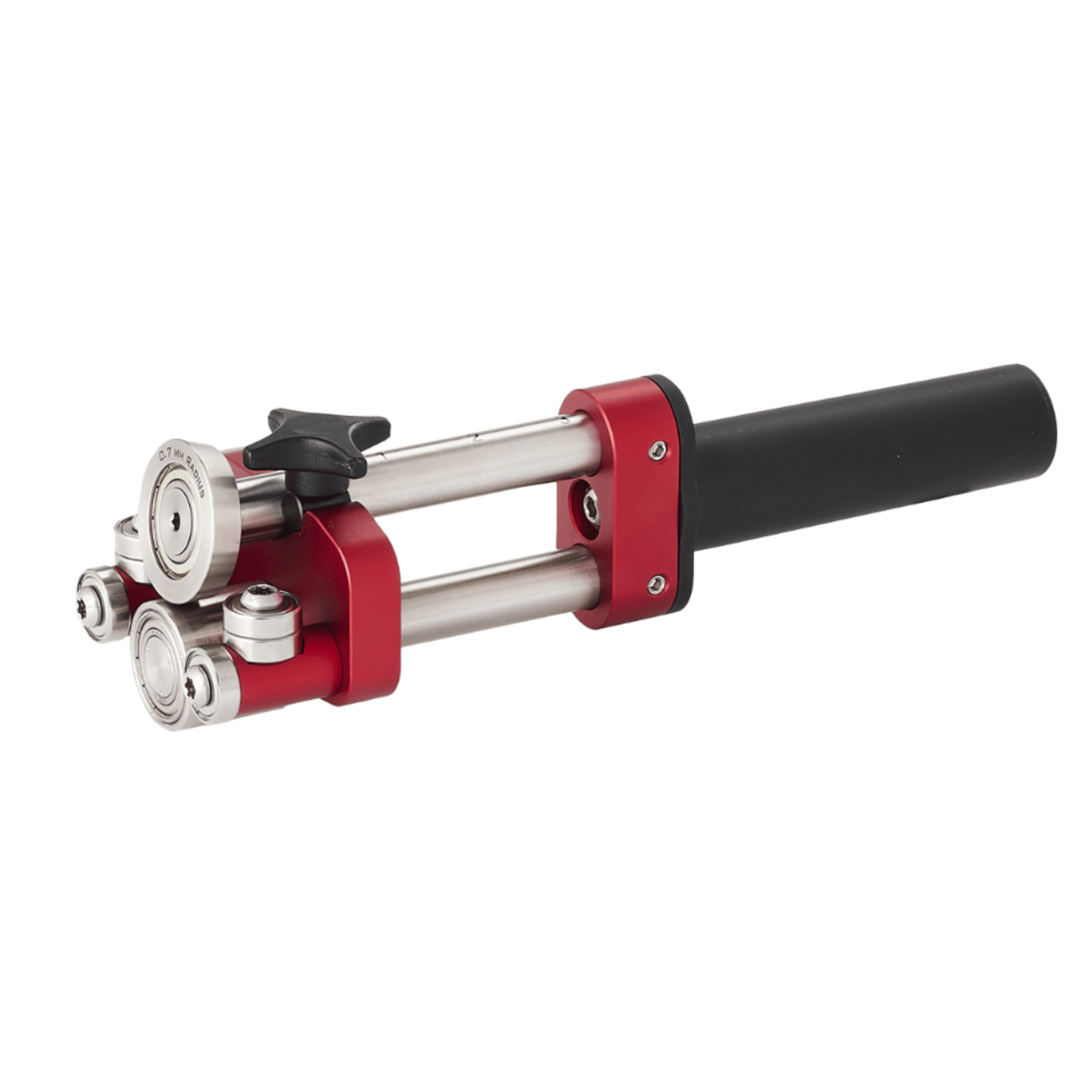

The Malco FS1N75 - Single Station Bender (75mm) is a compact, modular metal bending tool designed for precision work on curved or straight sheet metal panels. Here's a detailed overview:

Product Brochure

🔧 Product Overview

• Model: FS1N75
• Type: Single Station Metal Bender (Narrow)
• Width: 75 mm (3 inches)
• Design: Narrow bearing stance for tight curves and straight bends

📐 Bending Capabilities

• Bend Depth: 3/16″ to 3″ (5 mm 75 mm)
• Bend Angle: to 100°
• Bend Radius: 0.027″ (0.7 mm)
• Material Thickness: 0.020″ 0.040″ (0.5 1 mm)
• Compatible Materials:
  • 24-gauge steel
  • 26-gauge stainless steel
  • 0.040″ aluminum
  • 20 oz copper
  • 1 mm zinc

🛠️ Key Features

• Modular Design: Can be paired with other Malco benders using the FSC1 Bender Connector
• Optional Accessories:
  • FSH2 Handle (sold separately)
  • FSLR Large Radius Roller for softer bends
  • FSBAG for storage and transport
• Durable Build: CNC-machined aluminum and stainless steel for corrosion resistance and precision
• Portability: Lightweight and compact for easy jobsite use
